BlackVue DR650GW-2CH Dual Lens Dash Cam and Power Magic Pro Installation in 2013 Ford F150

In this gallery, we perform a full installation our dual-lens, full HD BlackVue DR650GW-2CH and Power Magic Pro in a 2013 Ford F150.

NOTE: this type of installation should be performed by a qualified individual or business only. Working with your vehicle's power system can be dangerous to both you and your vehicle if you do not know what you are doing! If you have any doubts, please consult a professional.

To view additional instructions for performing an installation such as this, please view our advanced dashcam installation how-to.

Our vehicle being outfitted with the "Dashcam Defense": 2013 Ford F150 FX2 SuperCrew with EcoBoost. Click on any image to view a larger version.

BlackVue DR650GW-2CH Dashcam installation 2013 Ford F150 BlackVue DR650GW-2CH Dashcam installation 2013 Ford F150

Front and rear elements from the new DR650GW-2CH from BlackVue.

BlackVue DR650GW-2CH Dashcam installation 2013 Ford F150

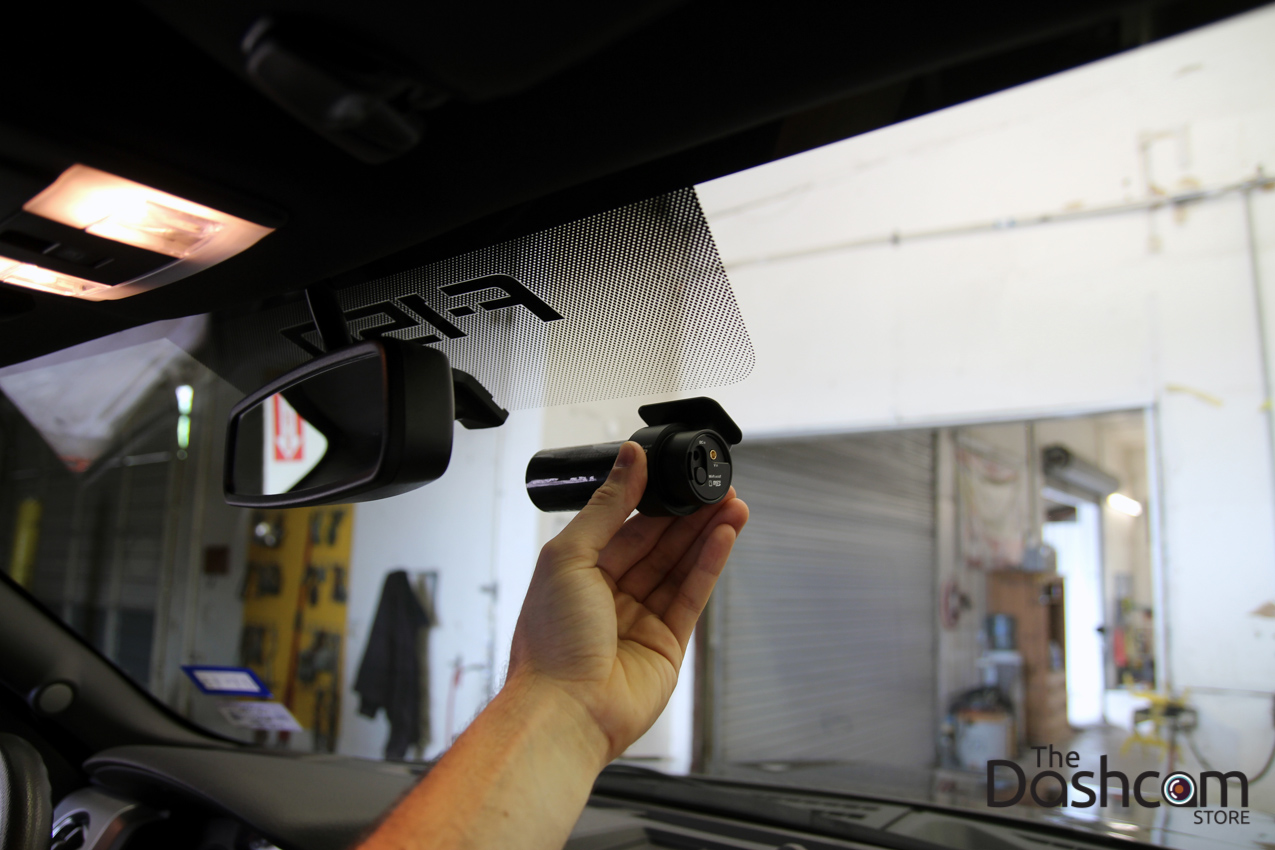

Checking placement of the main dash cam lens body behind the rear-view mirror.

BlackVue DR650GW-2CH Dashcam installation 2013 Ford F150

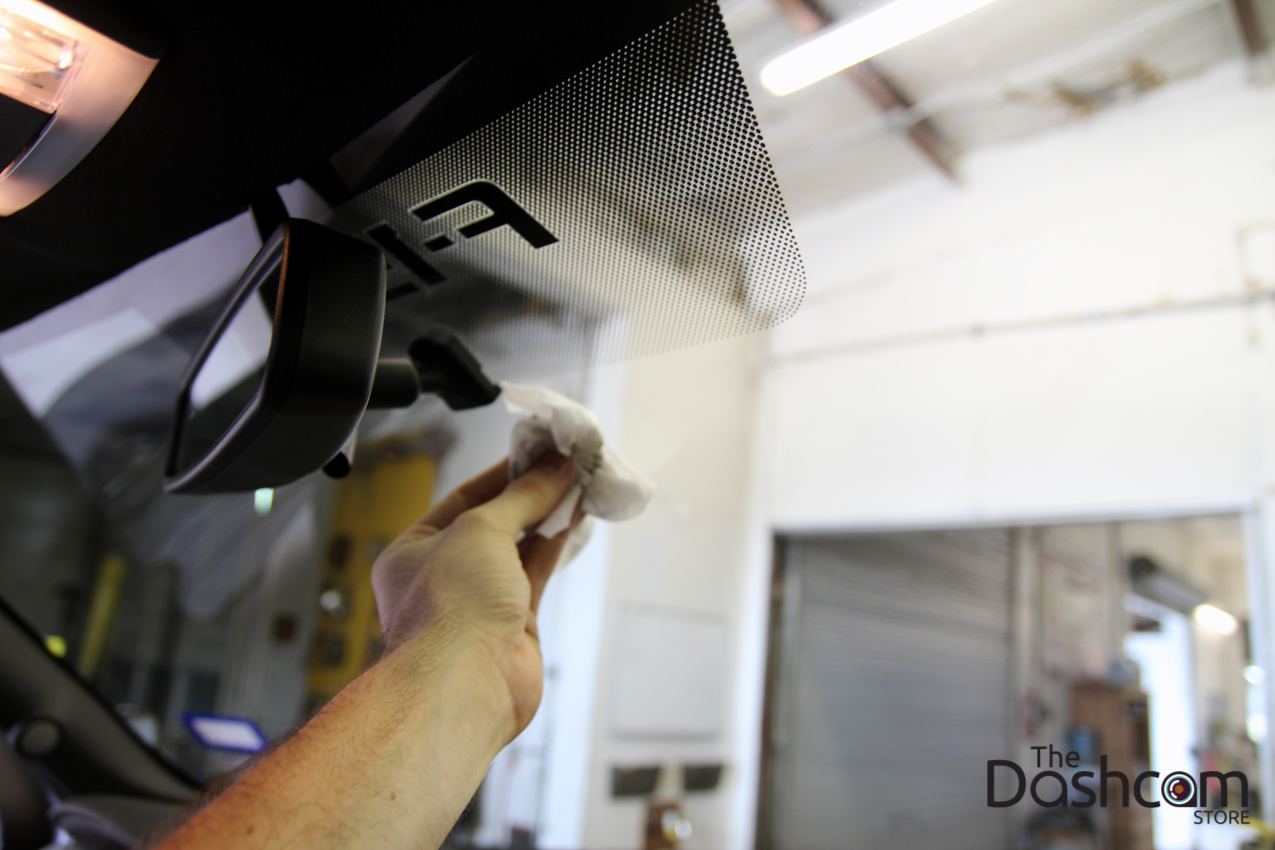

Be sure to use an alcohol wipe or glass cleaner to clean the glass before final placement of the front and rear lens elements.

BlackVue DR650GW-2CH Dashcam installation 2013 Ford F150 BlackVue DR650GW-2CH Dashcam installation 2013 Ford F150

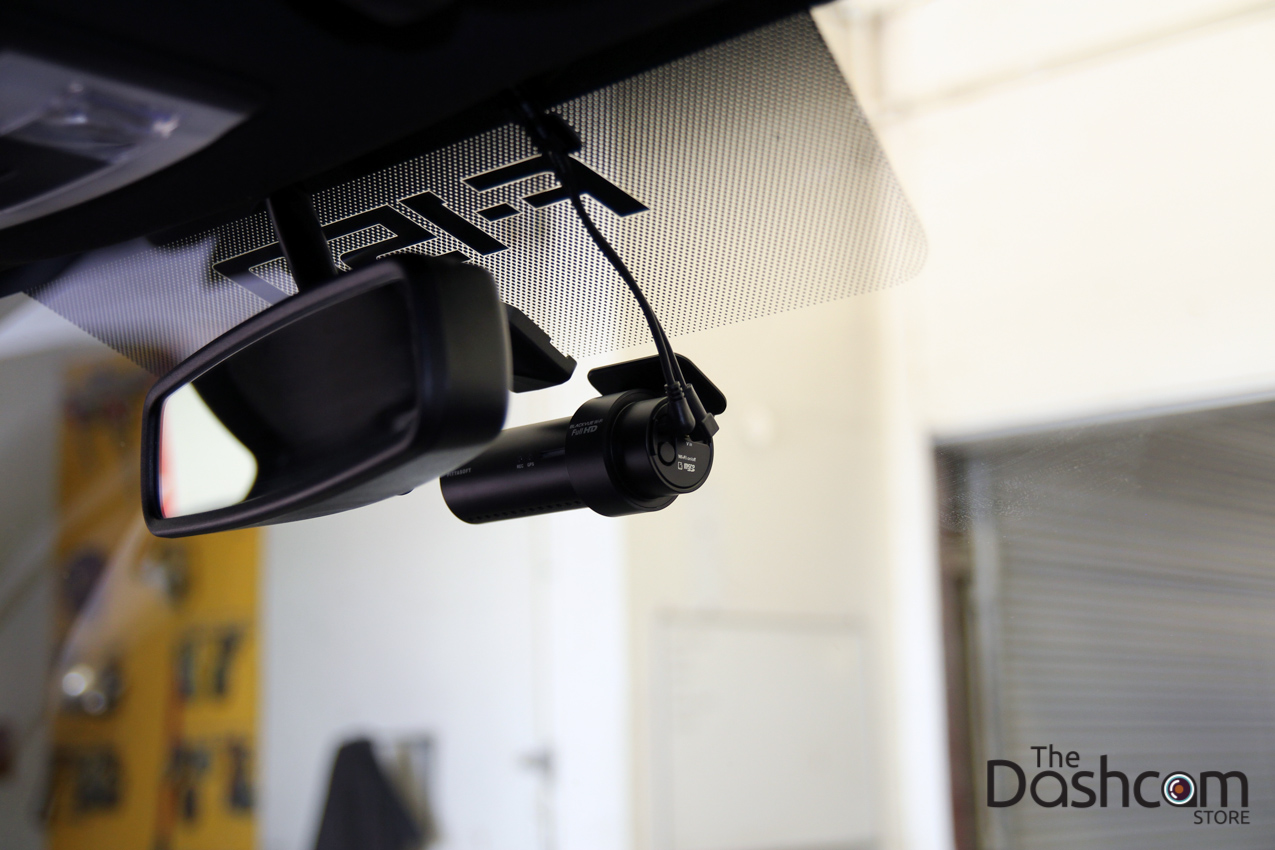

Front lens element mounted and both cables tucked into the headliner. Securing the cables to the windshield with the provided clips will come later.

BlackVue DR650GW-2CH Dashcam installation 2013 Ford F150

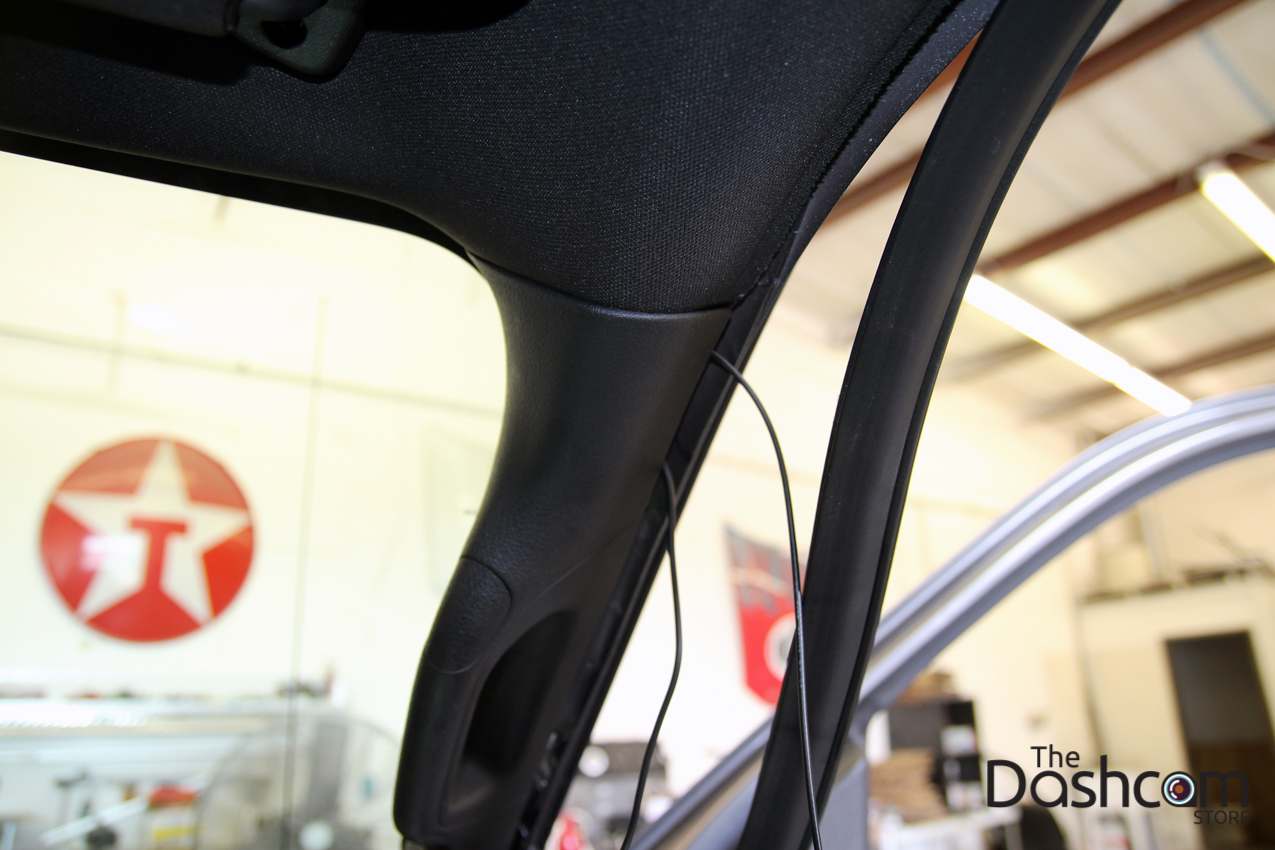

This photo shows the gap at the top of the passenger side A-pillar where the cables from the front lens element are tucked into, on the way to the fuse box and rear element.

BlackVue DR650GW-2CH Dashcam installation 2013 Ford F150

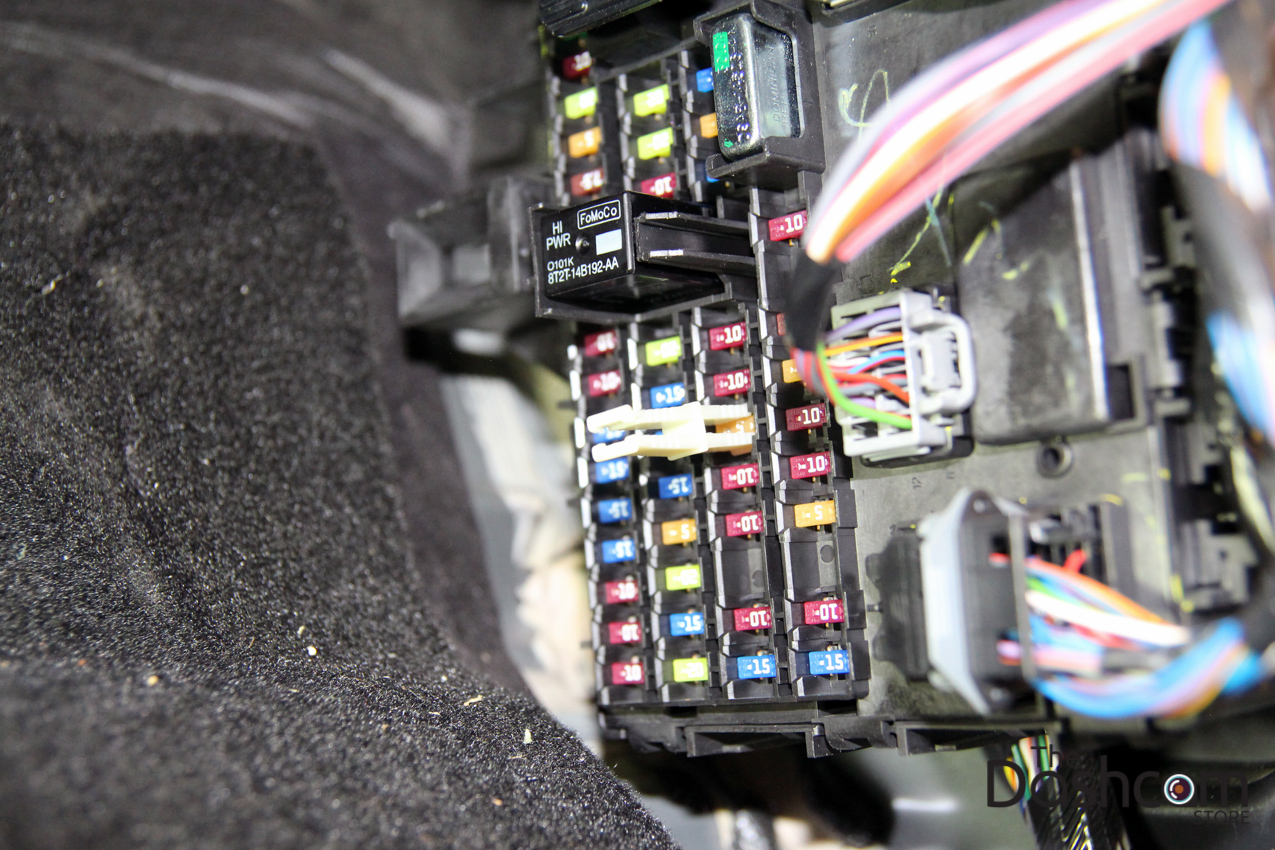

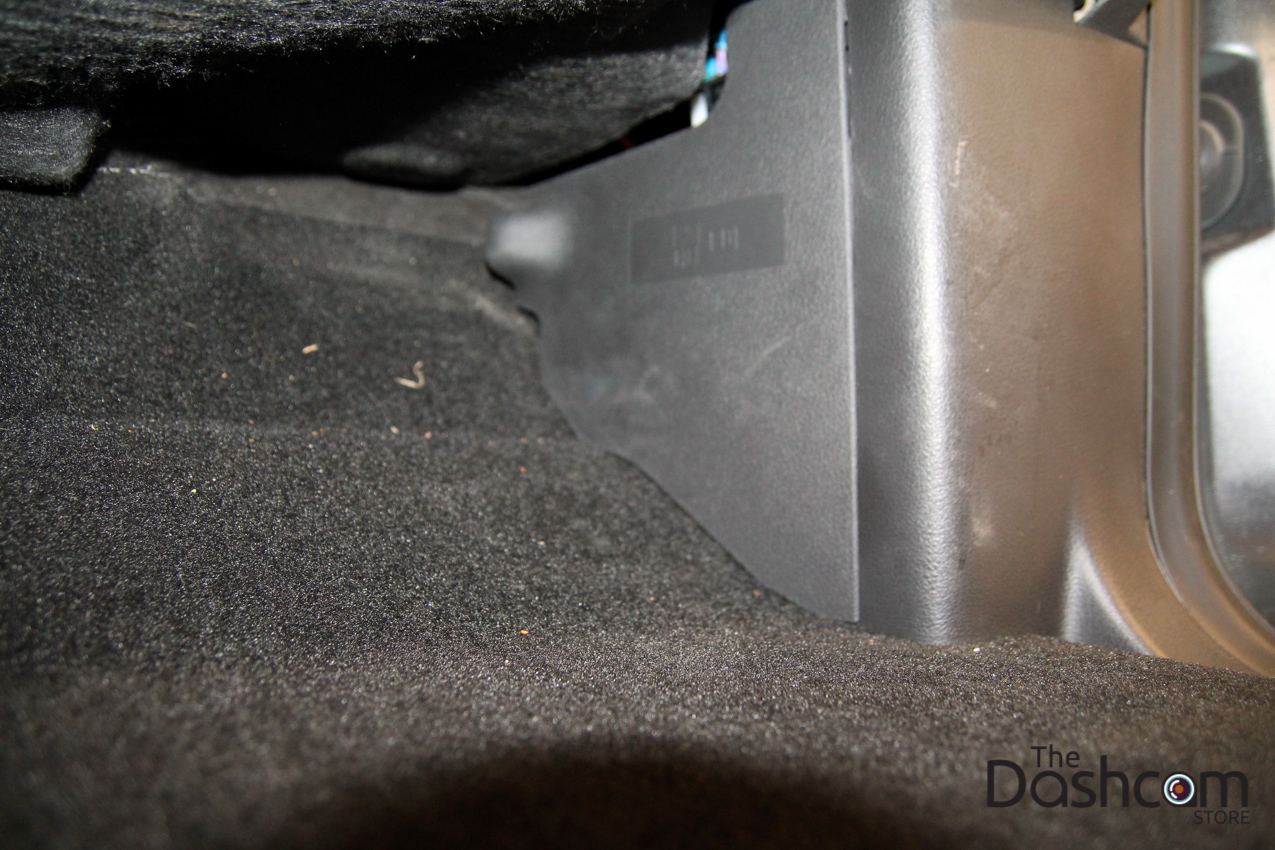

On the F150 the interior fuse box is located behind this panel in the passenger side footwell.

BlackVue DR650GW-2CH Dashcam installation 2013 Ford F150 BlackVue DR650GW-2CH Dashcam installation 2013 Ford F150 BlackVue DR650GW-2CH Dashcam installation 2013 Ford F150 BlackVue DR650GW-2CH Dashcam installation 2013 Ford F150

Our circuit tester that will be used to determine constant power and hot-on-start (a.k.a. switched power) fuses.

BlackVue DR650GW-2CH Dashcam installation 2013 Ford F150

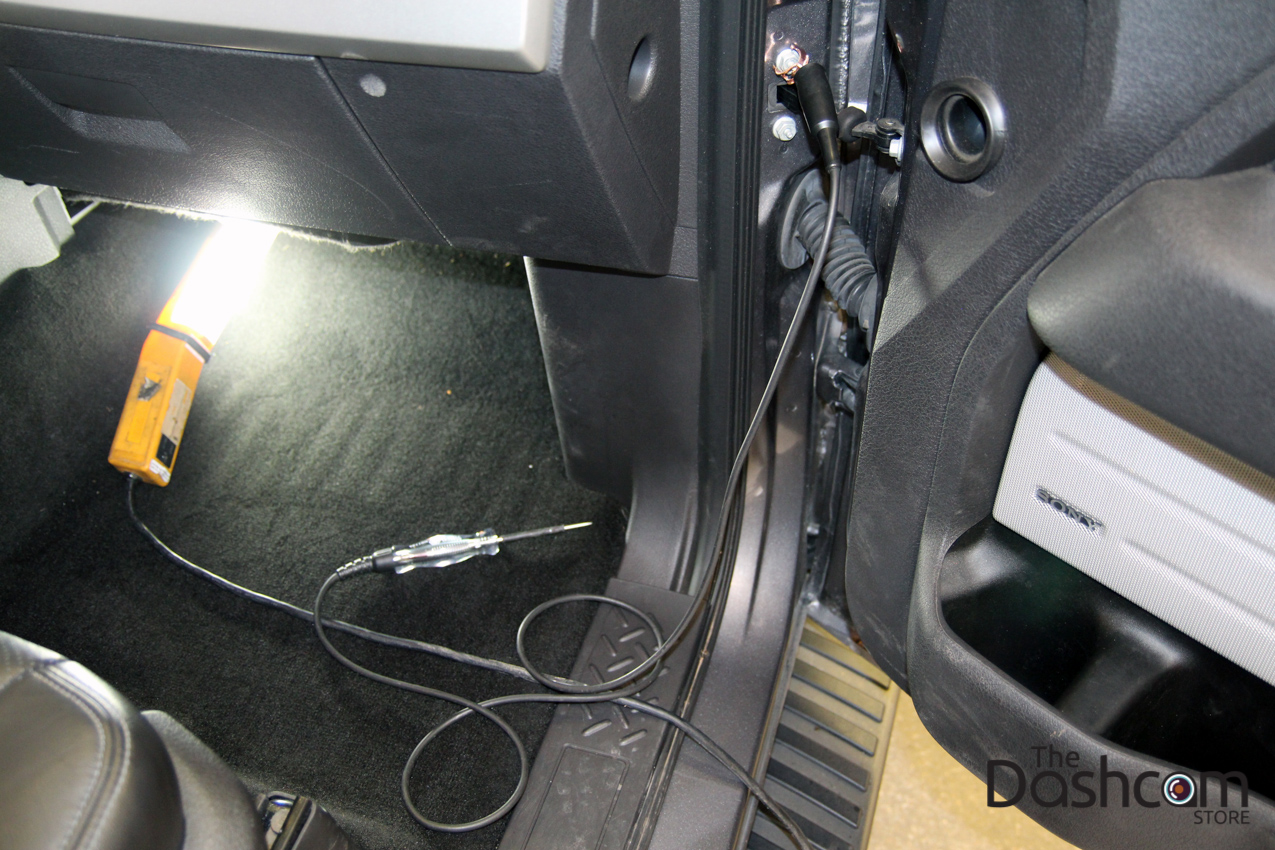

Typically the door frame bolt is an adequate ground point for the circuit tester.

BlackVue DR650GW-2CH Dashcam installation 2013 Ford F150

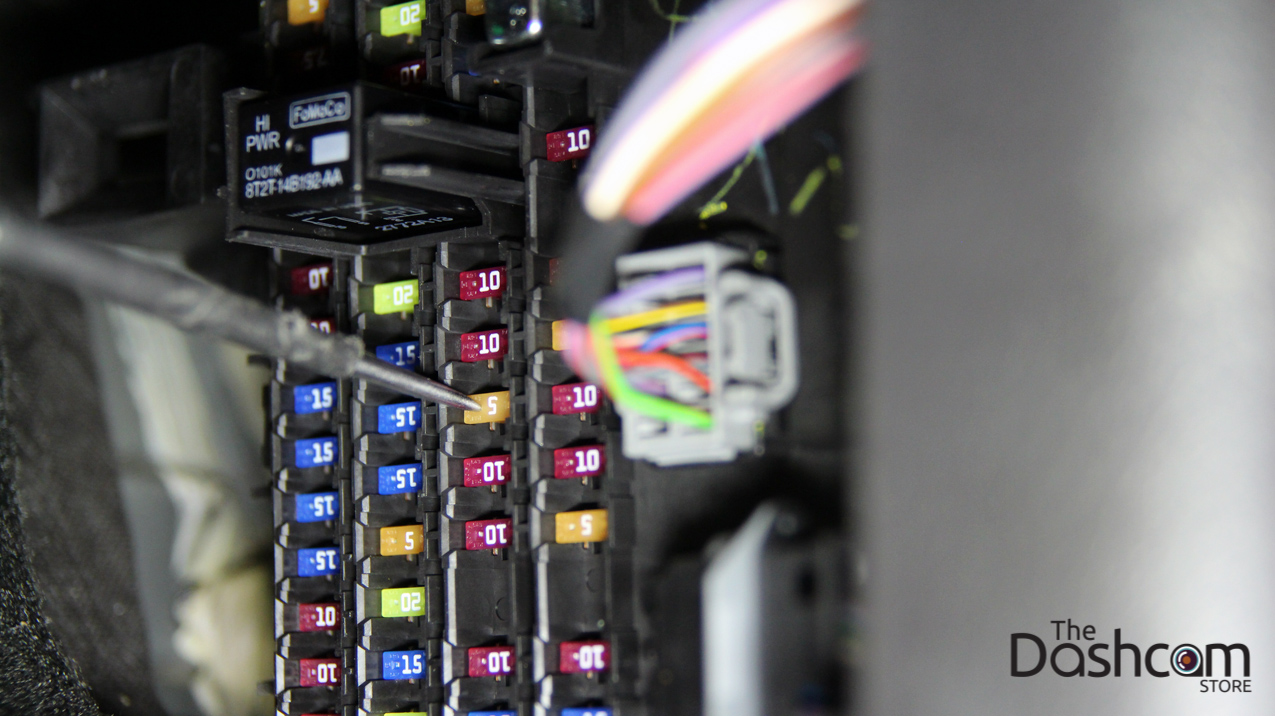

Circuit tester probing a fuse.

BlackVue DR650GW-2CH Dashcam installation 2013 Ford F150

The Power Magic Pro will be mounted in the glove box to be within close proximity to the fuse box, but still in reach of the driver.

BlackVue DR650GW-2CH Dashcam installation 2013 Ford F150

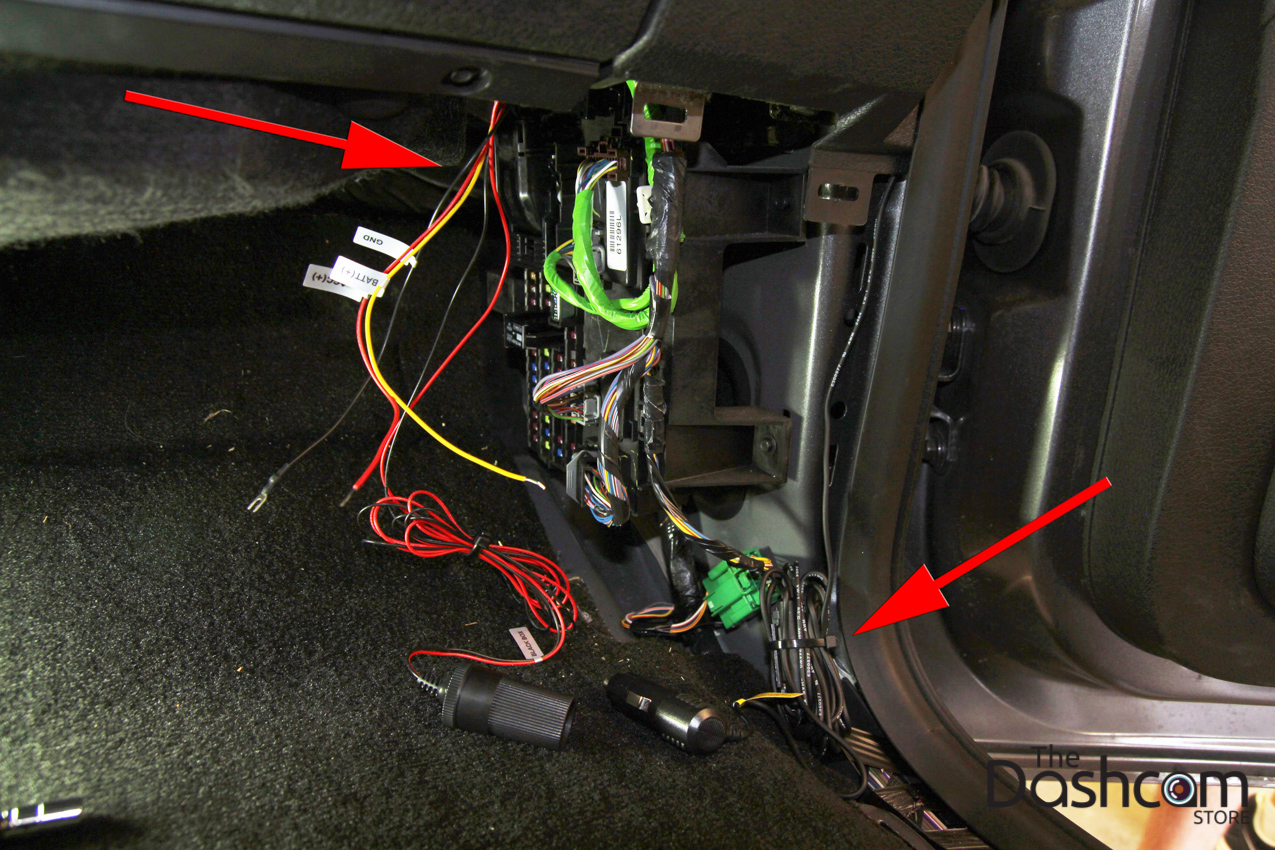

This photo shows the wire harness from the Power Magic Pro (left arrow) and the power cable running down from the front lens element (right arrow). The power cable plugs in to the harness of the Power Magic Pro.

BlackVue DR650GW-2CH Dashcam installation 2013 Ford F150

Using the fuse puller from the fuse box cover to remove the switched power fuse.

BlackVue DR650GW-2CH Dashcam installation 2013 Ford F150

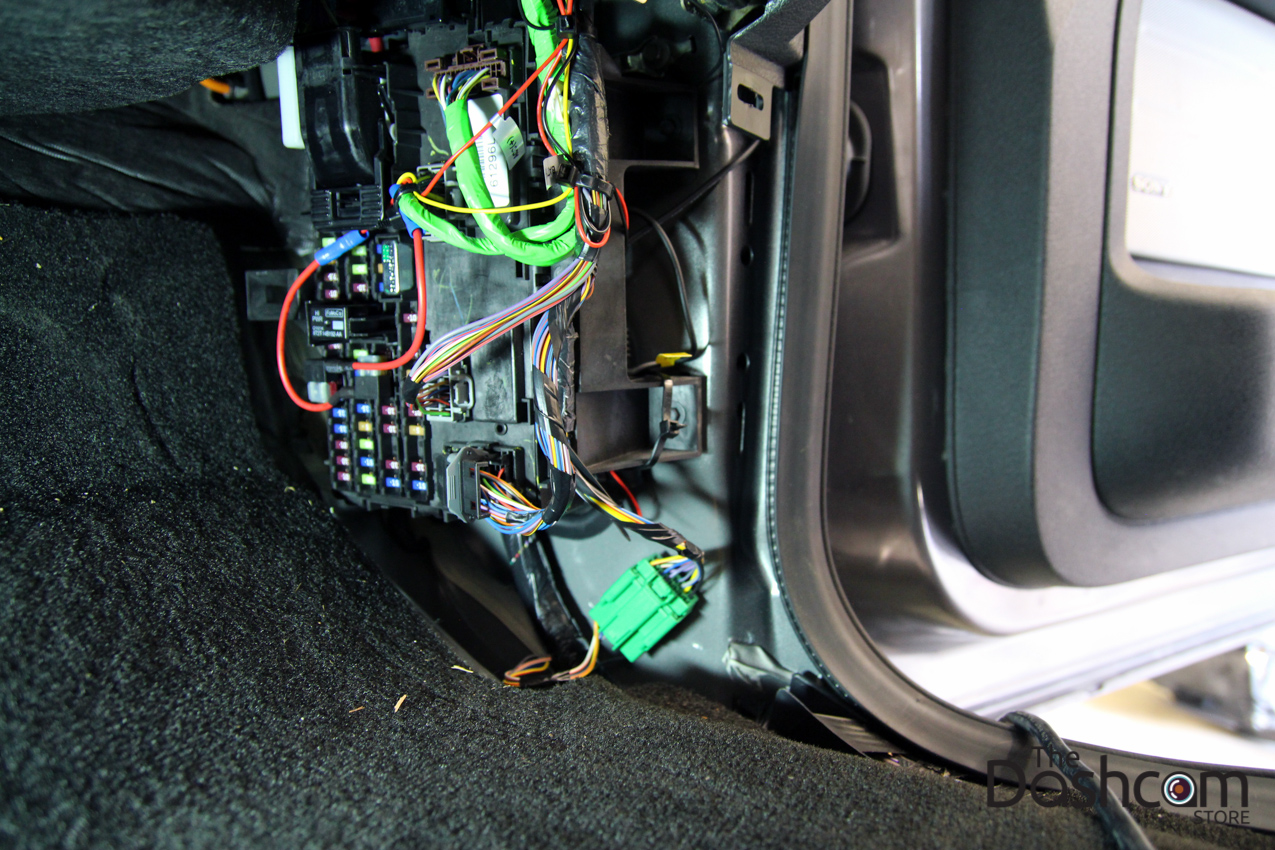

Now the yellow wire from the Power Magic Pro wire harness is crimped to the 2nd fuse tap and inserted into a constant power fuse slot.

BlackVue DR650GW-2CH Dashcam installation 2013 Ford F150

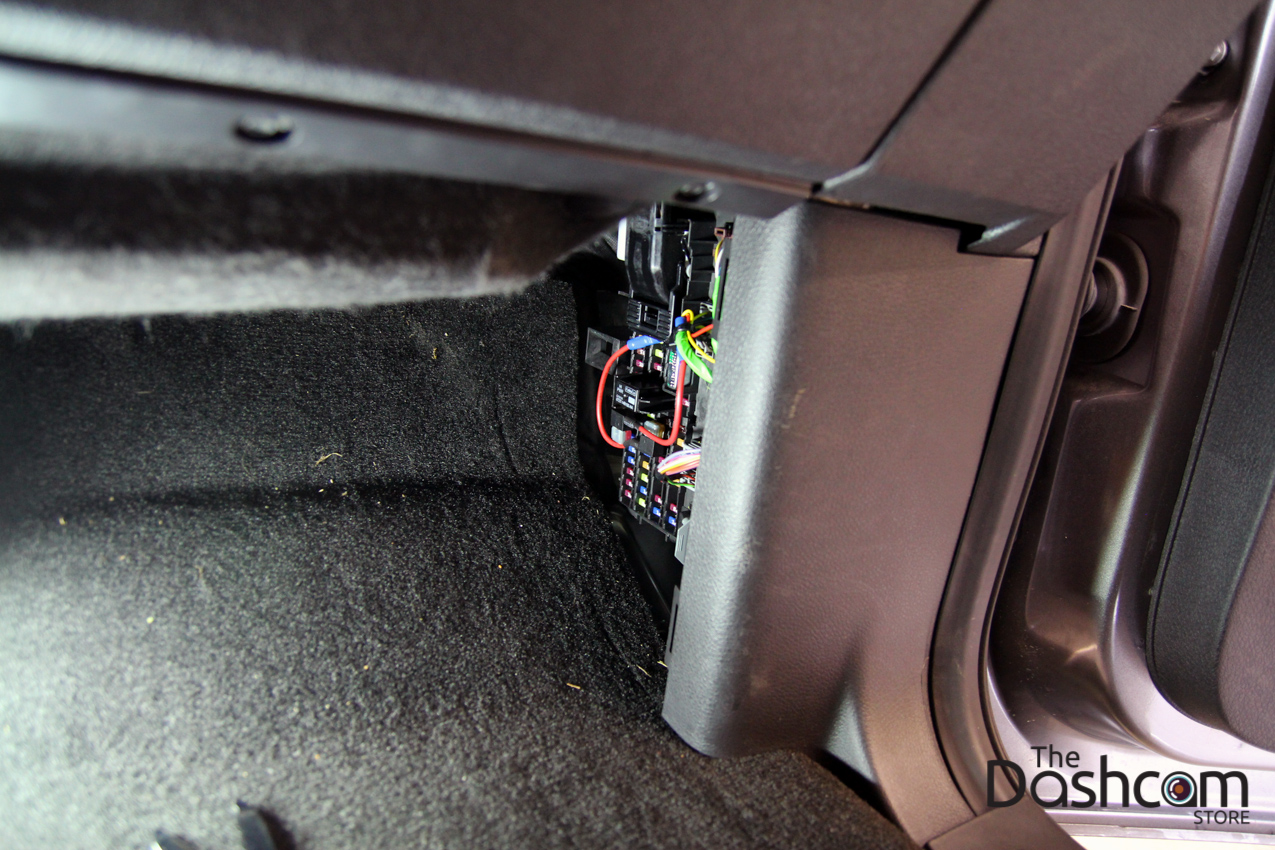

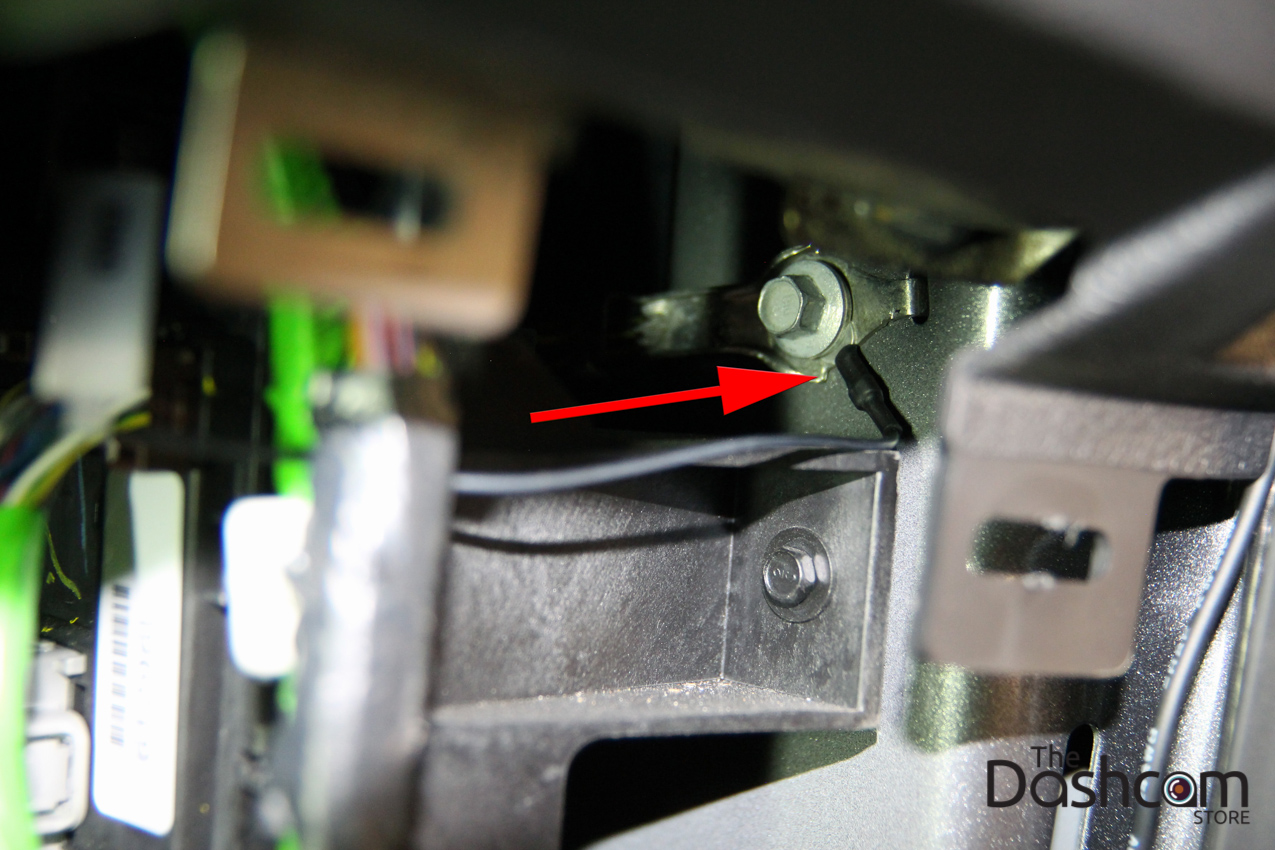

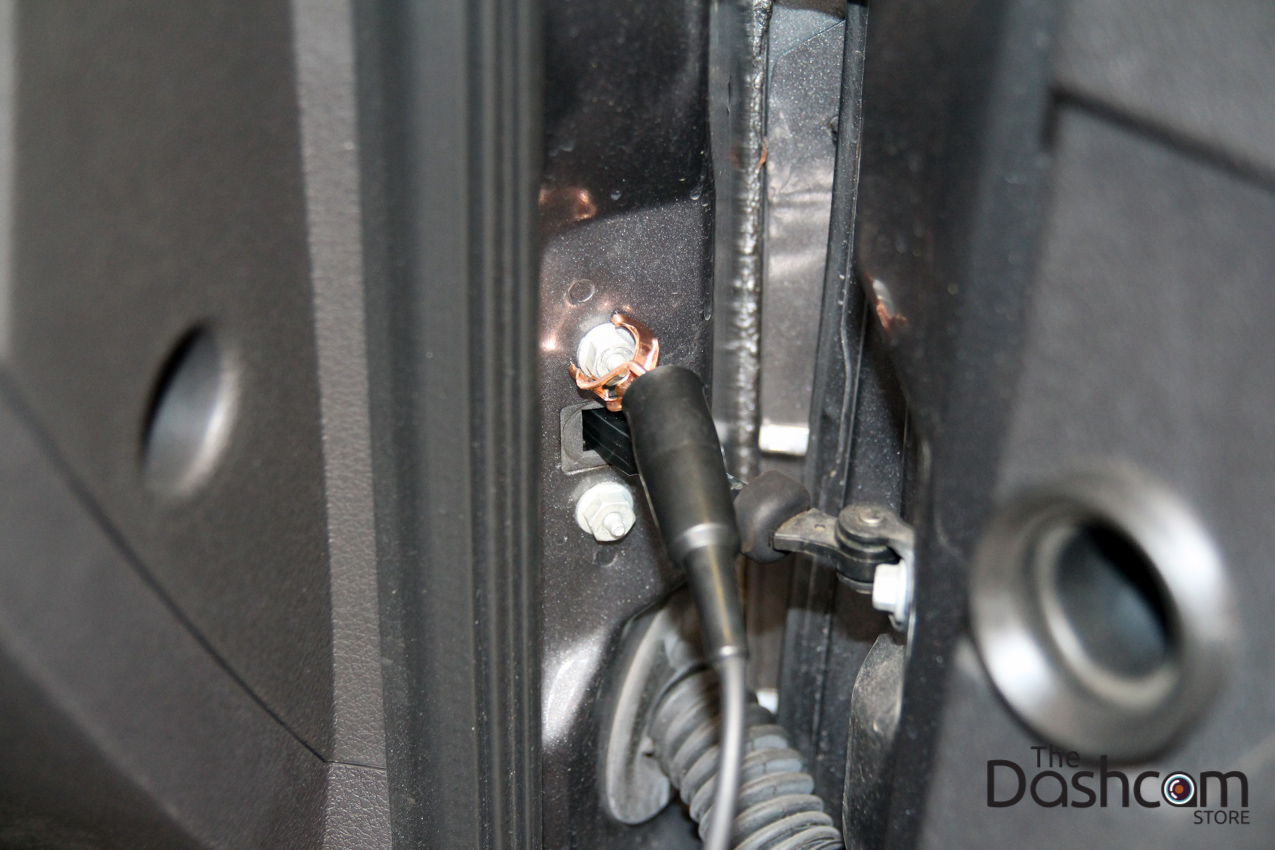

Finally, the black wire is secured beneath a body ground bolt. It is critical to locate a proper ground point that is free of paint and directly on the body of the vehicle.

BlackVue DR650GW-2CH Dashcam installation 2013 Ford F150

All loose wiring now secured with zip ties.

BlackVue DR650GW-2CH Dashcam installation 2013 Ford F150

Body interior trim panels reinstalled near the fuse box.

BlackVue DR650GW-2CH Dashcam installation 2013 Ford F150 BlackVue DR650GW-2CH Dashcam installation 2013 Ford F150

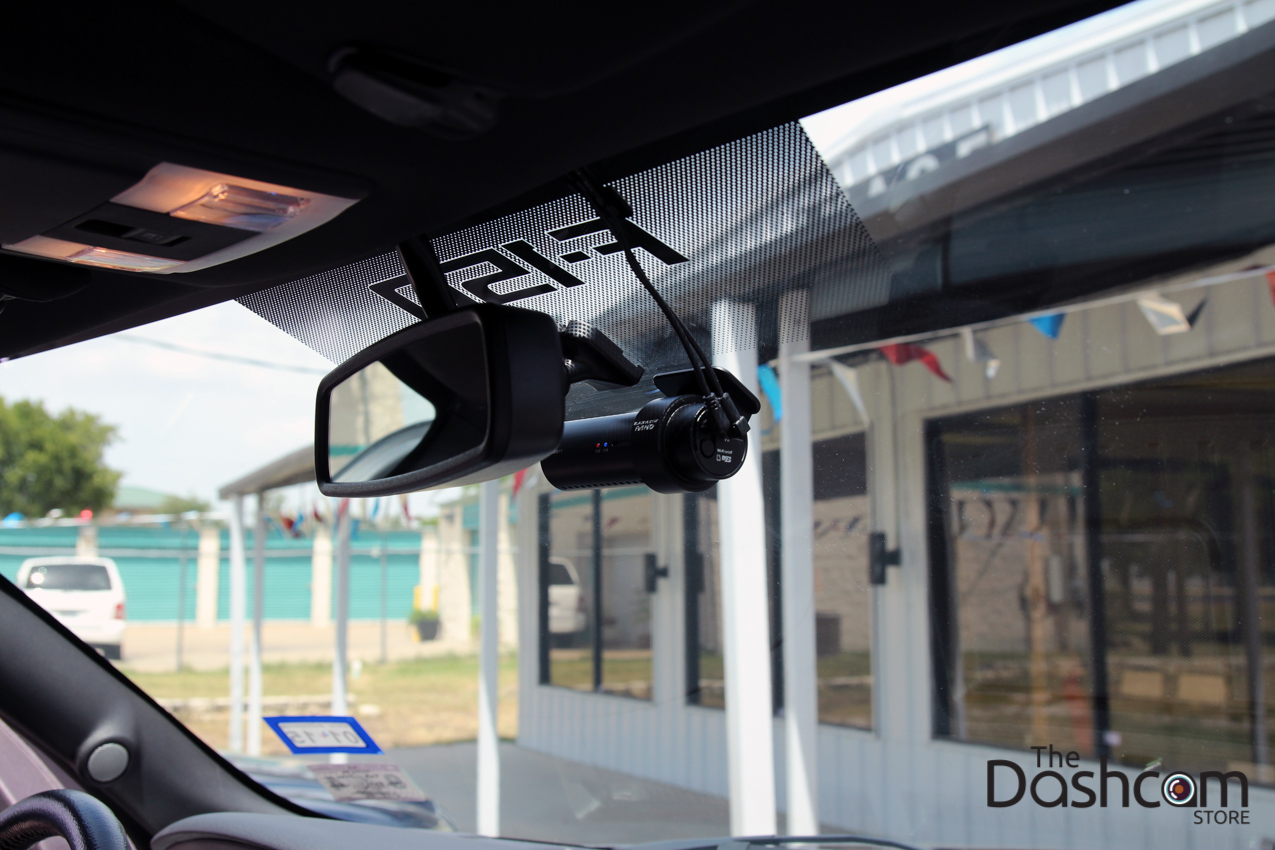

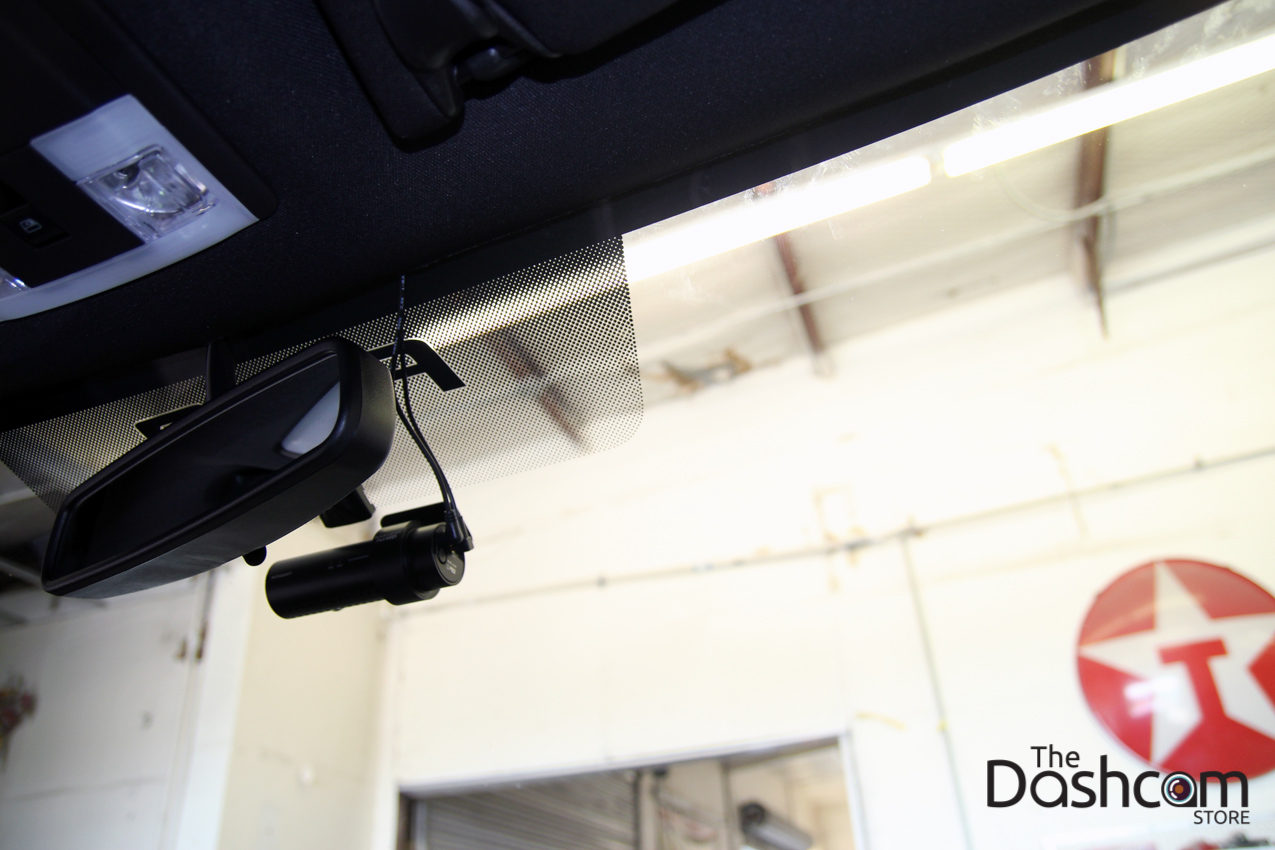

Front lens element cables secured with clips near the top of the windshield.

BlackVue DR650GW-2CH Dashcam installation 2013 Ford F150 BlackVue DR650GW-2CH Dashcam installation 2013 Ford F150

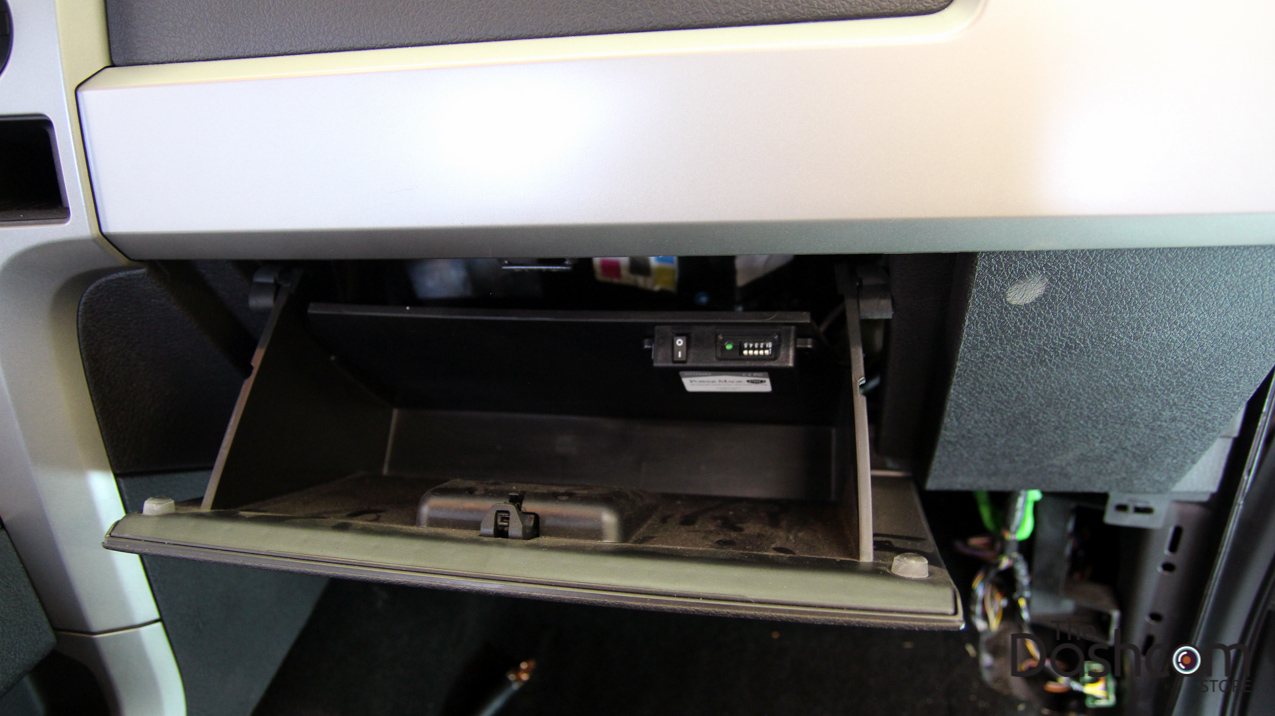

Power Magic Pro secured in the glove box.

BlackVue DR650GW-2CH Dashcam installation 2013 Ford F150

Rear lens element fully installed near the top of the rear window. Center sliding section still slides freely (away from the rear lens element of course).

BlackVue DR650GW-2CH Dashcam installation 2013 Ford F150

Pairing an iPhone with the DR650GW-2CH for the first time. Once the dashcam is powered on, push the "WiFi" button on the right side of the BlackVue unit, and wait for the WiFi icon to light up and stay solid. It might be necessary to connect to the BlackVue WiFi hotspot in the iPhone WiFi settings first, then returning to the BlackVue app for configuration. The default BlackVue WiFi password is: blackvue

The BlackVue App can be downloaded here for Android or here for iPhone.

BlackVue DR650GW-2CH Dashcam installation 2013 Ford F150

The iPhone is now connected to the BlackVue DR650GW-2CH WiFi hotspot.

BlackVue DR650GW-2CH Dashcam installation 2013 Ford F150

You can view the list of video files stored on the DR650GW-2CH's micro SD card.

BlackVue DR650GW-2CH Dashcam installation 2013 Ford F150

Checking the dashcam front element placement with the live video feed over WiFi.

BlackVue DR650GW-2CH Dashcam installation 2013 Ford F150

Checking the dashcam rear element placement with the live video feed over WiFi.

BlackVue DR650GW-2CH Dashcam installation 2013 Ford F150

The rear element can be easily rotated 180 degrees to capture video inside the vehicle. This is handy when leaving your vehicle in the hands of someone else such as a repair facility or valet parking.

BlackVue DR650GW-2CH Dashcam installation 2013 Ford F150

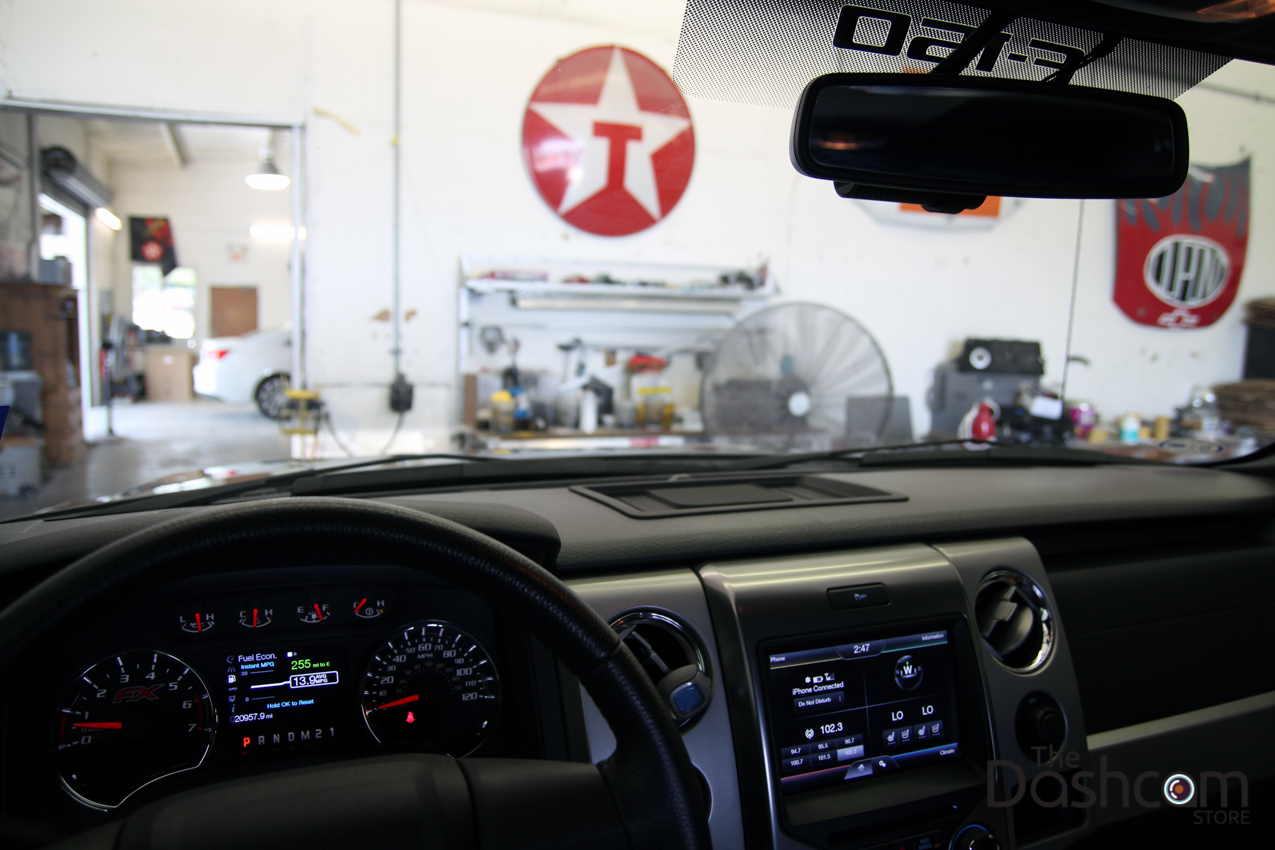

System fully installed, this photo shows that the dash cam is barely visible from the driver's perspective.

BlackVue DR650GW-2CH Dashcam installation 2013 Ford F150 BlackVue DR650GW-2CH Dashcam installation 2013 Ford F150 BlackVue DR650GW-2CH Dashcam installation 2013 Ford F150

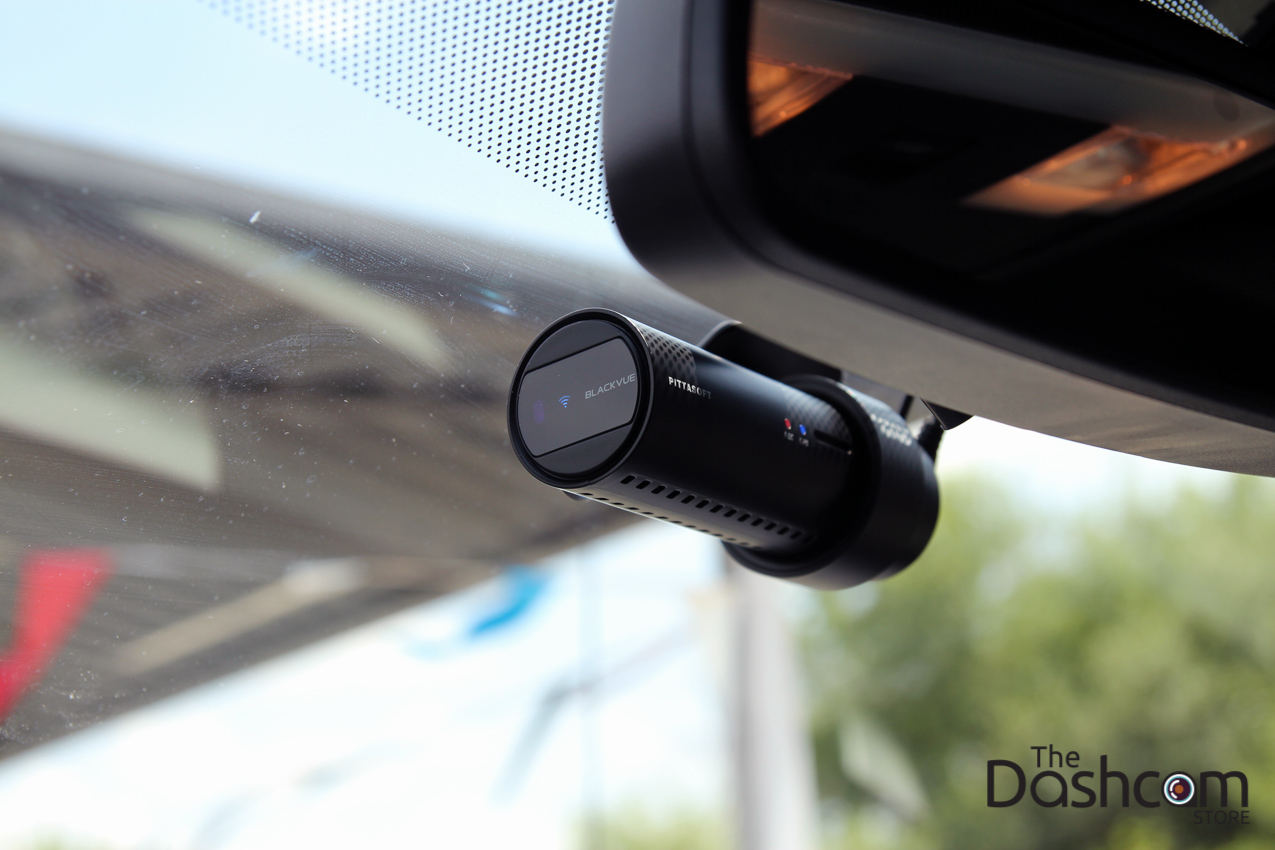

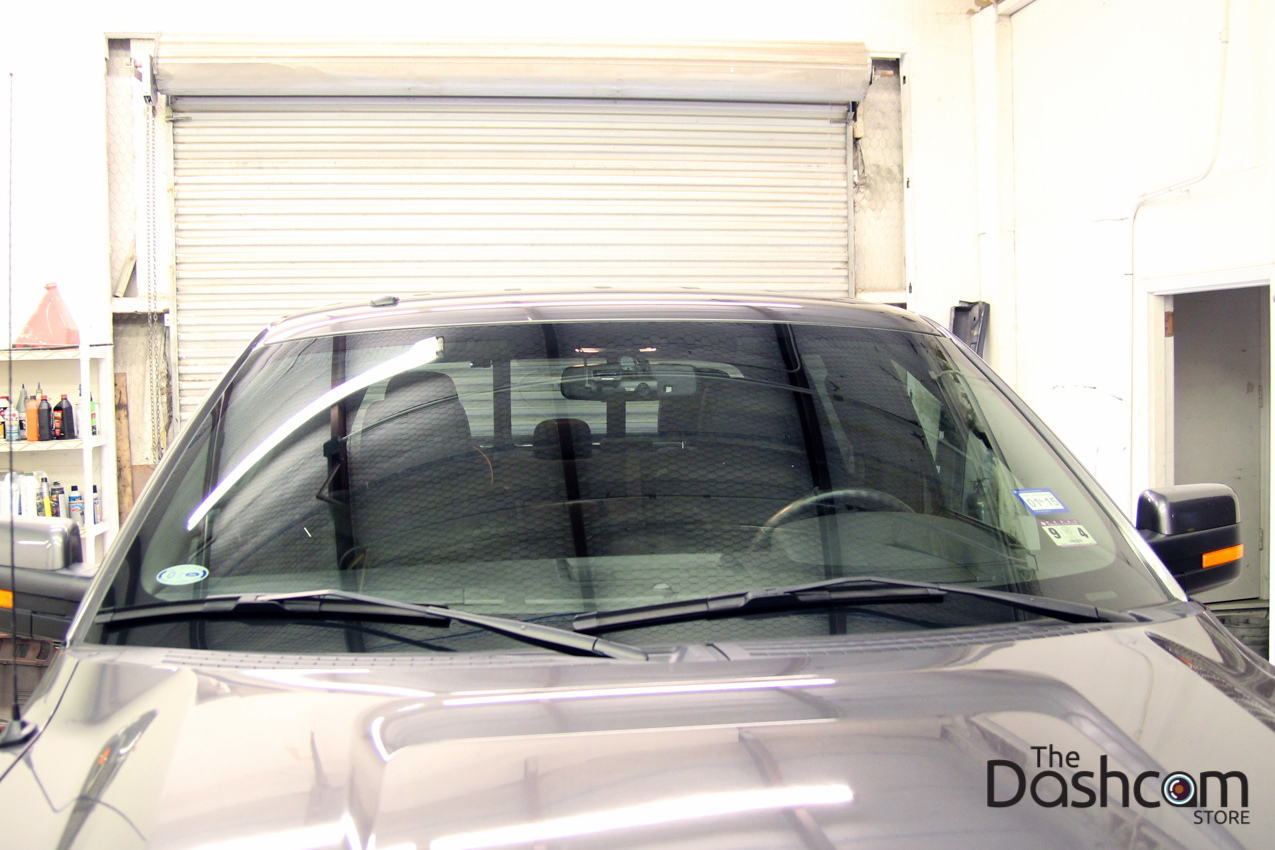

Exterior views of the BlackVue DR650GW-2CH. It is hardly noticeable in front of the rear-view mirror!

BlackVue DR650GW-2CH Dashcam installation 2013 Ford F150 BlackVue DR650GW-2CH Dashcam installation 2013 Ford F150 BlackVue DR650GW-2CH Dashcam installation 2013 Ford F150 BlackVue DR650GW-2CH Dashcam installation 2013 Ford F150

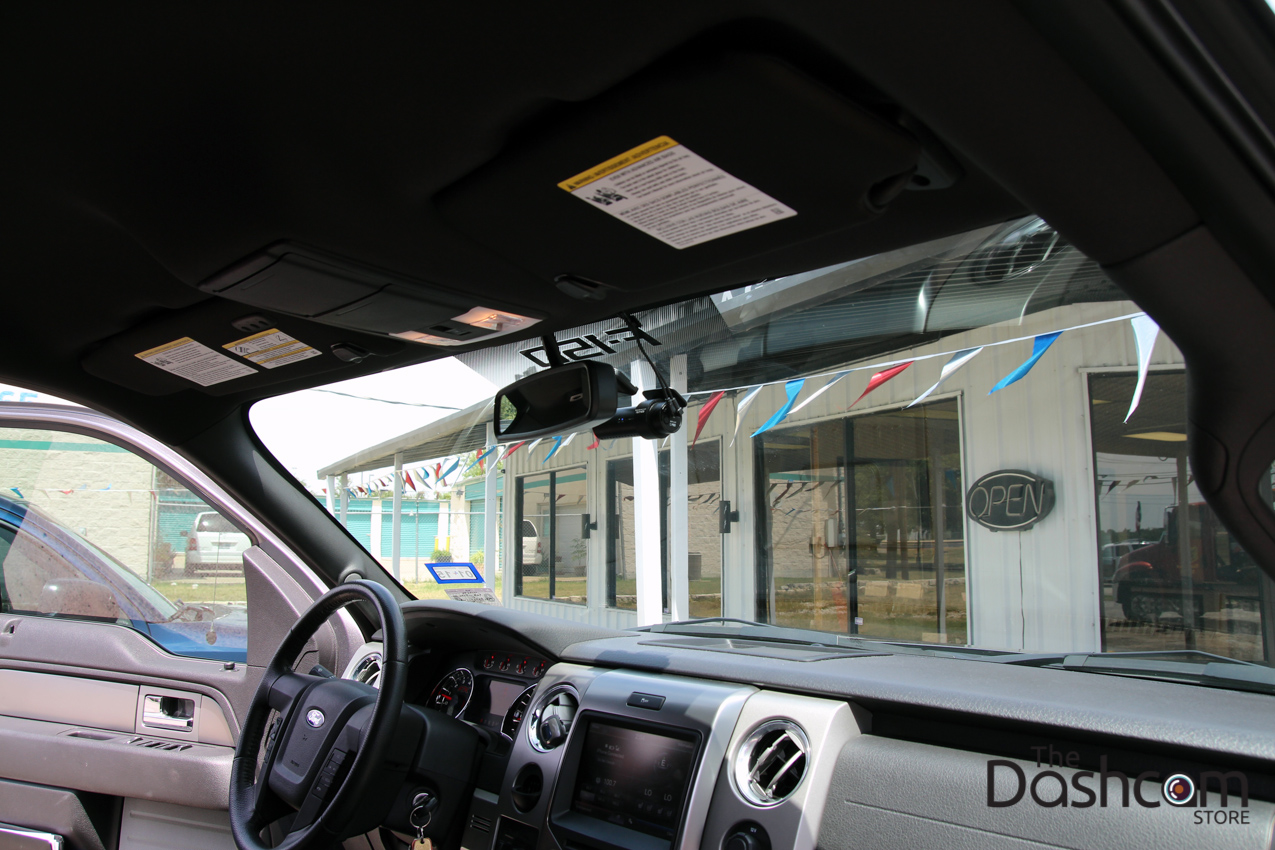

A few more interior shots of the BlackVue DR650GW-2CH fully installed, beautiful!

BlackVue DR650GW-2CH Dashcam installation 2013 Ford F150 BlackVue DR650GW-2CH Dashcam installation 2013 Ford F150 BlackVue DR650GW-2CH Dashcam installation 2013 Ford F150

Click on these links to learn more about the amazing dual lens, full HD BlackVue DR650GW-2CH dash cam or Power Magic Pro battery discharge prevention device.

As always, drive safe!
