2009 Pontiac G5 - Mini300 and Installation Kit - Dashcam Installation

In this gallery, we perform a typical installation of our compact but powerful 720p HD Mini300 dashcam and USB mini-fuse dashcam installation kit in a customer's 2009 Pontiac G5. Click on any image to view a larger version. Thanks Natalie!

NOTE: this type of installation should be performed by a qualified individual or business only. Working with your vehicle's power system can be dangerous to both you and your vehicle if you do not know what you are doing! If you have any doubts, please consult a professional.

To view our additional how-to instructions for performing an installation such as this, please view our advanced dashcam installation how-to.

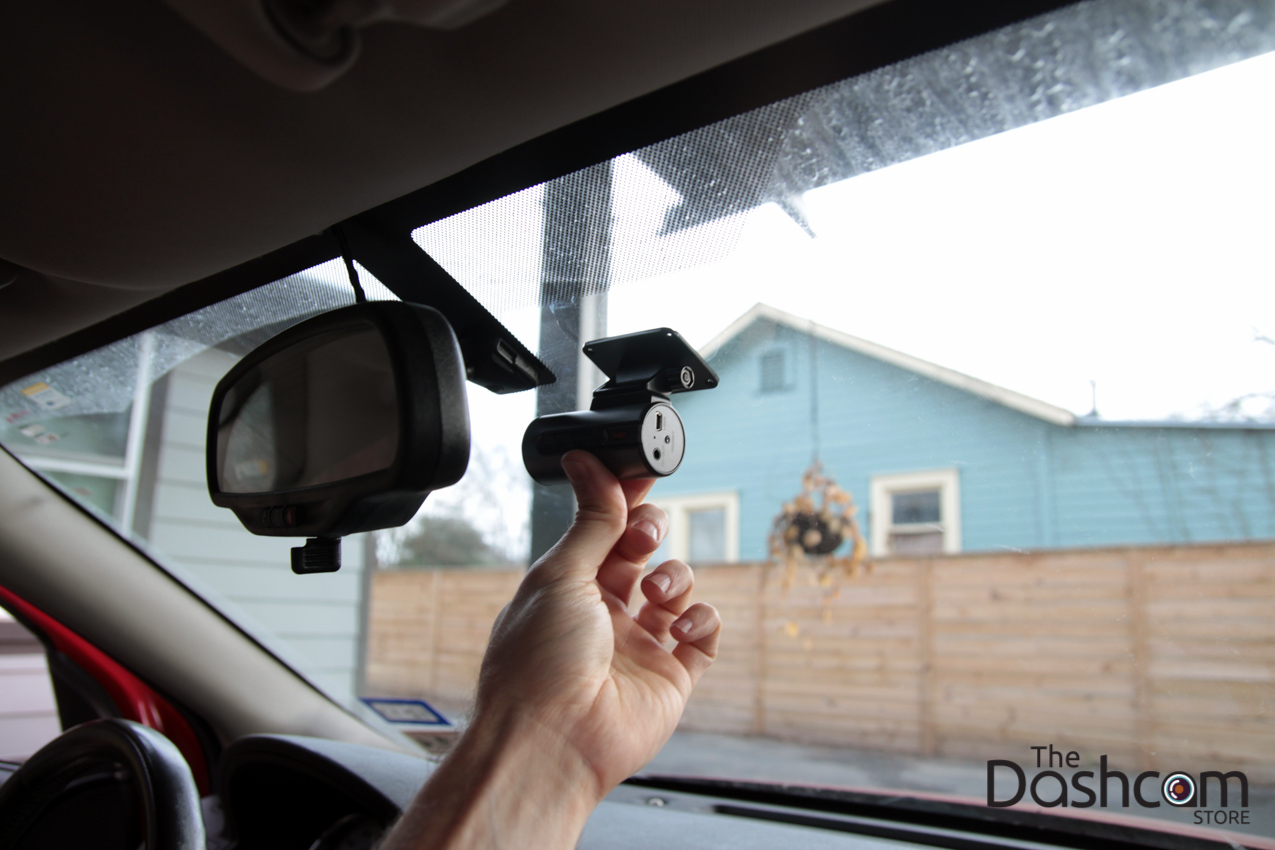

Testing the location for the Mini300:

Mini300 dashcam and installation kit in 2009 Pontiac G5

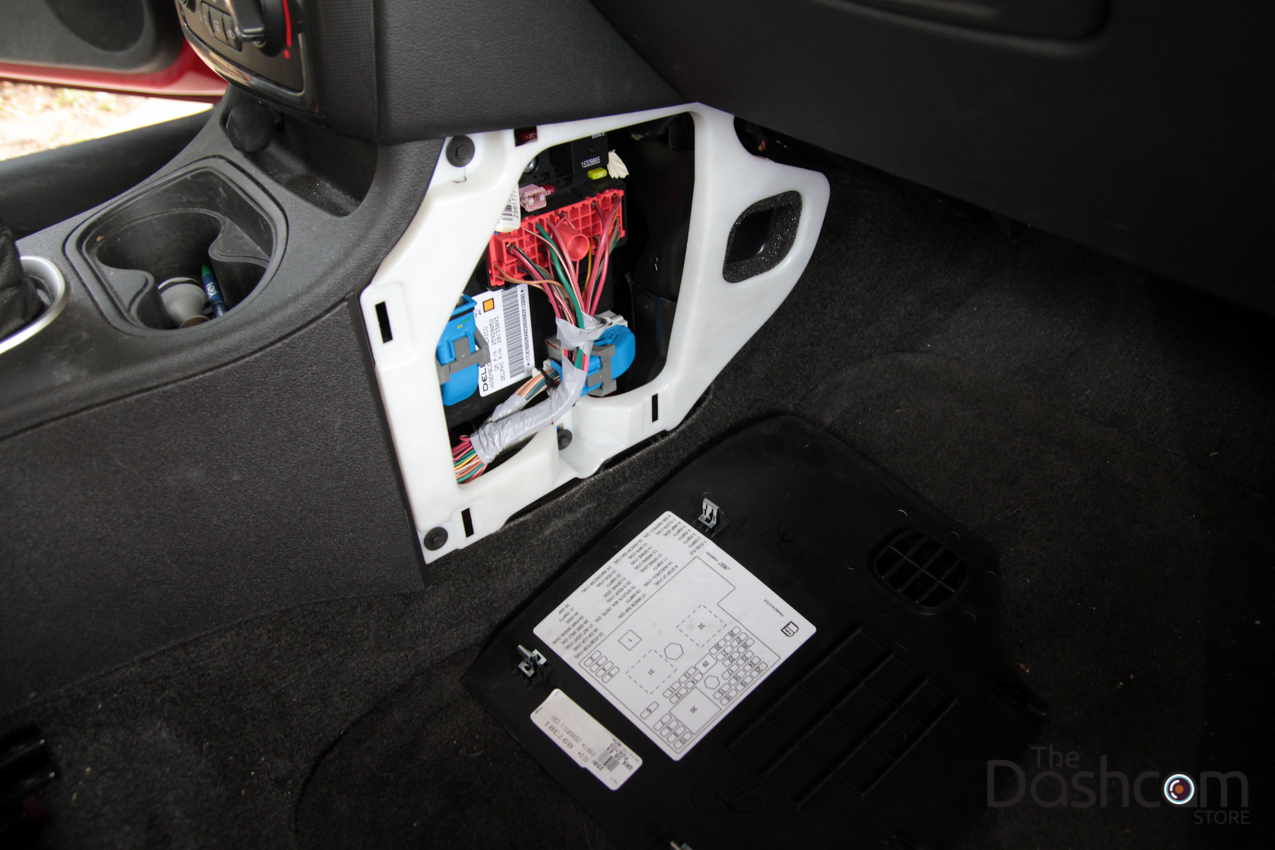

Locating the fuse box... it took longer than usual to find it here! Now we know where we will run our wiring:

Mini300 dashcam and installation kit in 2009 Pontiac G5

Start running the wire at the dashcam, that way the excess wiring can be tucked away under the dash:

Mini300 dashcam and installation kit in 2009 Pontiac G5

Wiring run across the headliner, now to send it down the A-pillar:

Mini300 dashcam and installation kit in 2009 Pontiac G5

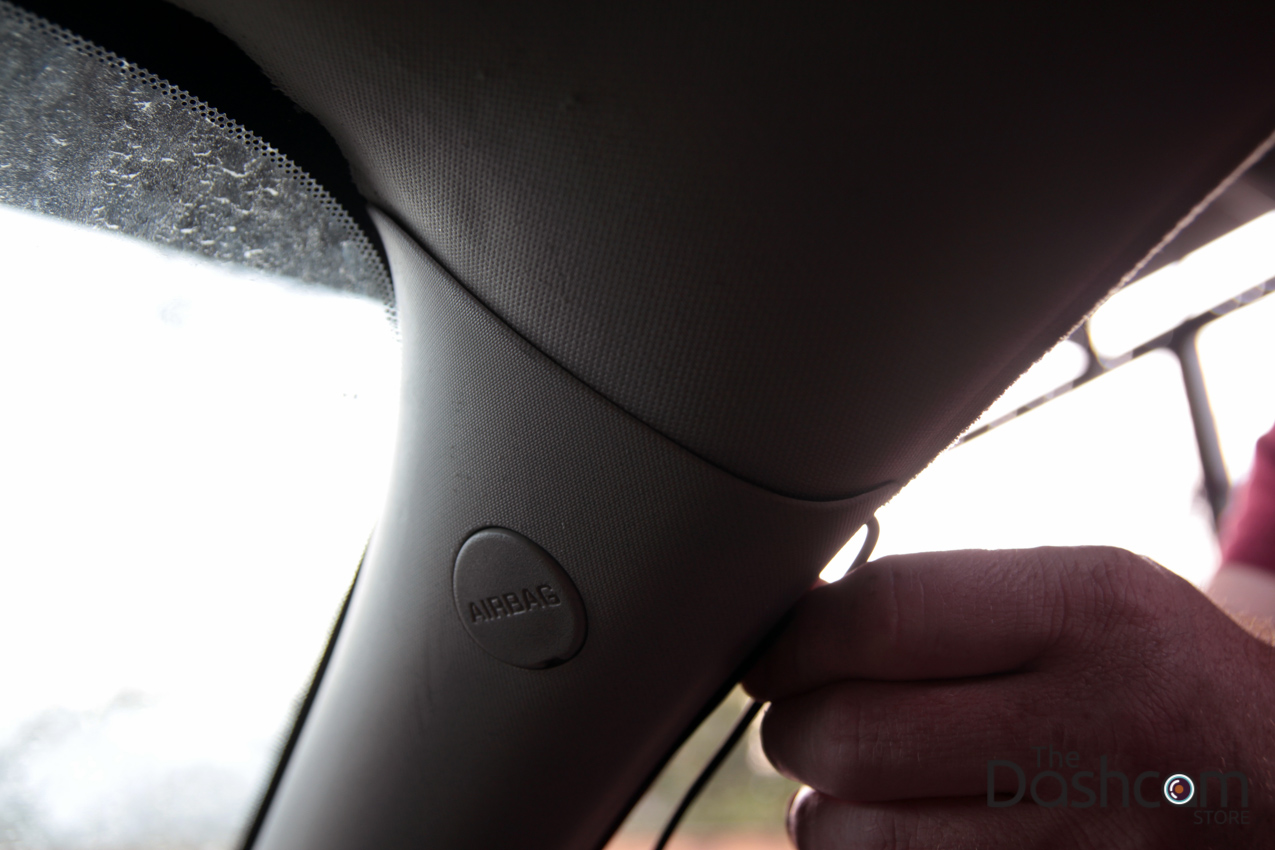

Wiring tucked across the top of the A-pillar:

Mini300 dashcam and installation kit in 2009 Pontiac G5

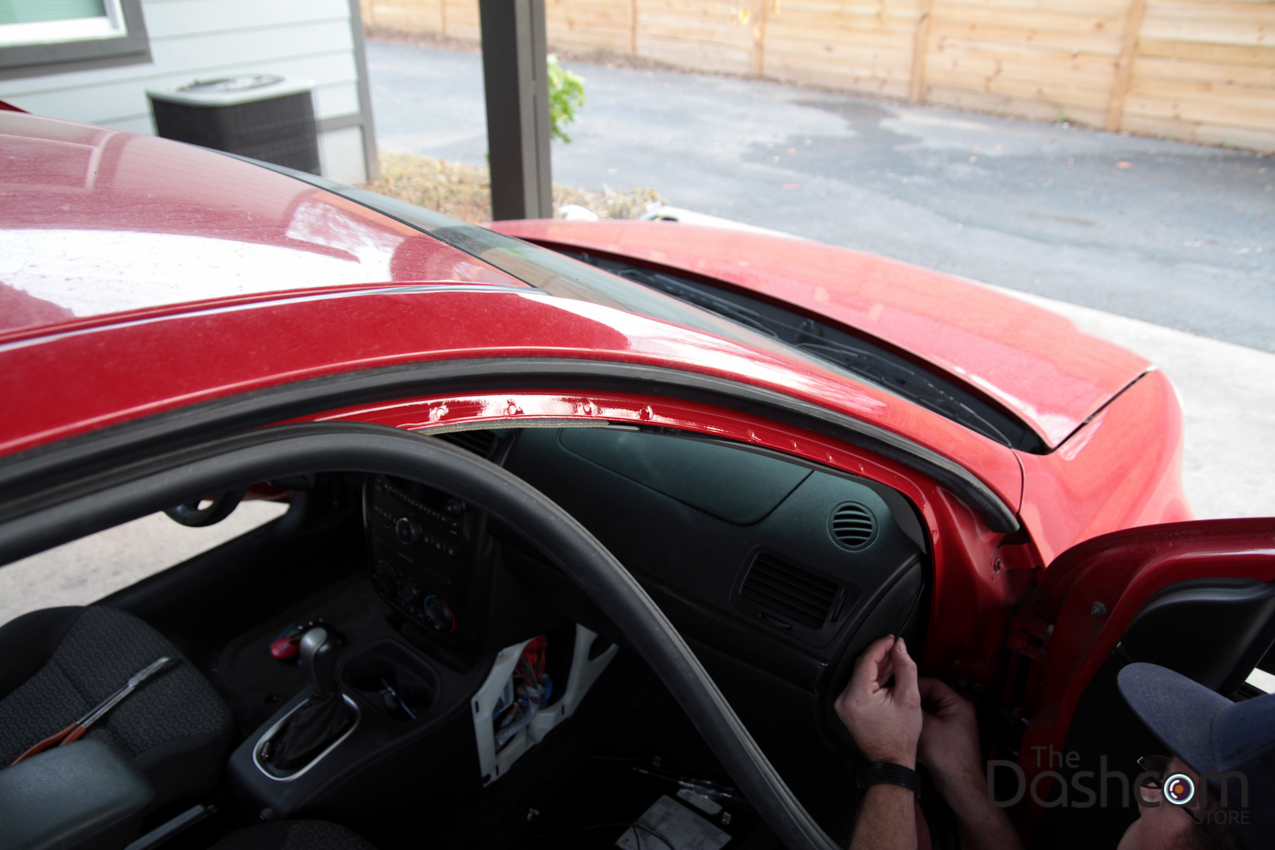

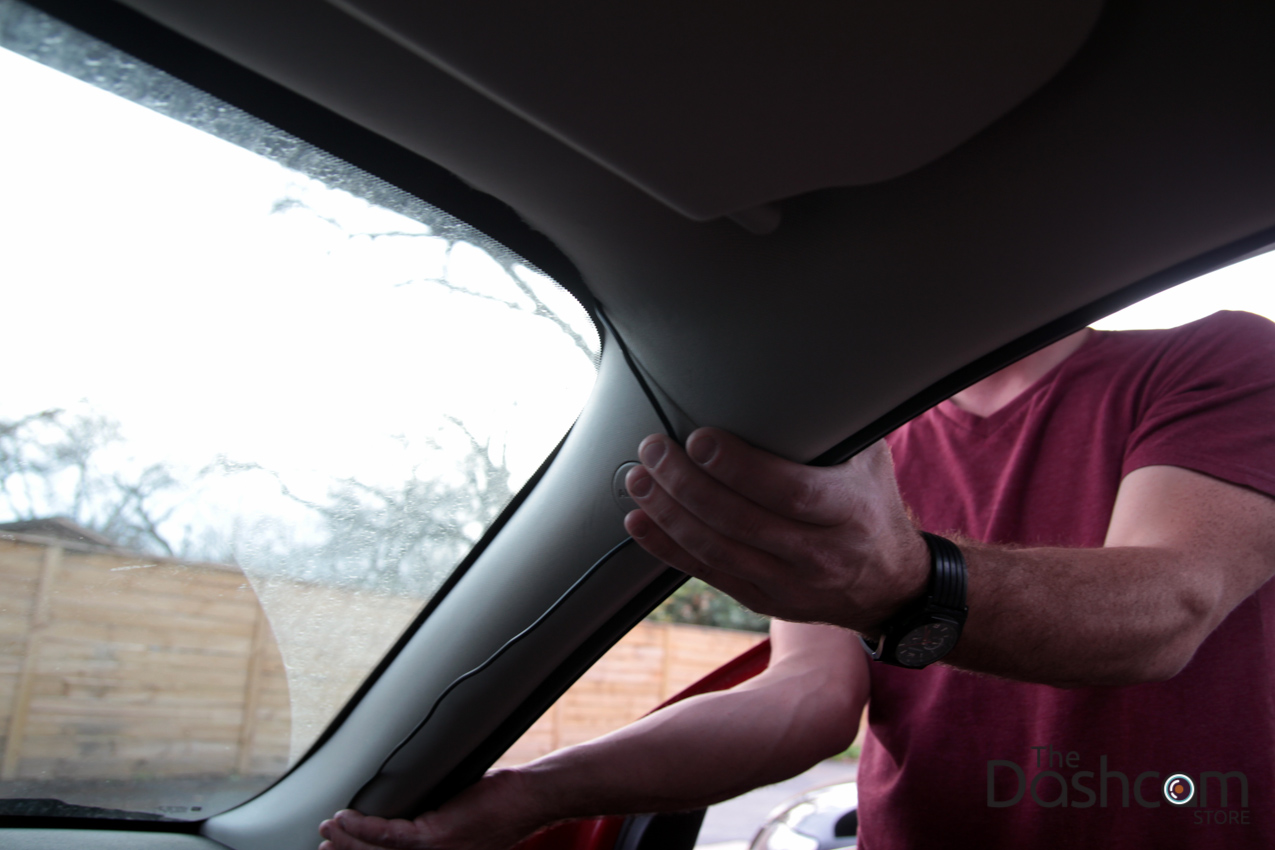

Gently tug on the A-pillar/body/door rubber trim, this exposes a gap between the A-pillar and the frame(body) which we run the wiring in, down towards the floor:

Mini300 dashcam and installation kit in 2009 Pontiac G5

Tucking the rubber trim back in to place, being careful not to pinch the wire harness:

Mini300 dashcam and installation kit in 2009 Pontiac G5

The installation kit is now run almost all the way to the fuse box, now we just need to secure it behind the carpet or under the dash:

Mini300 dashcam and installation kit in 2009 Pontiac G5

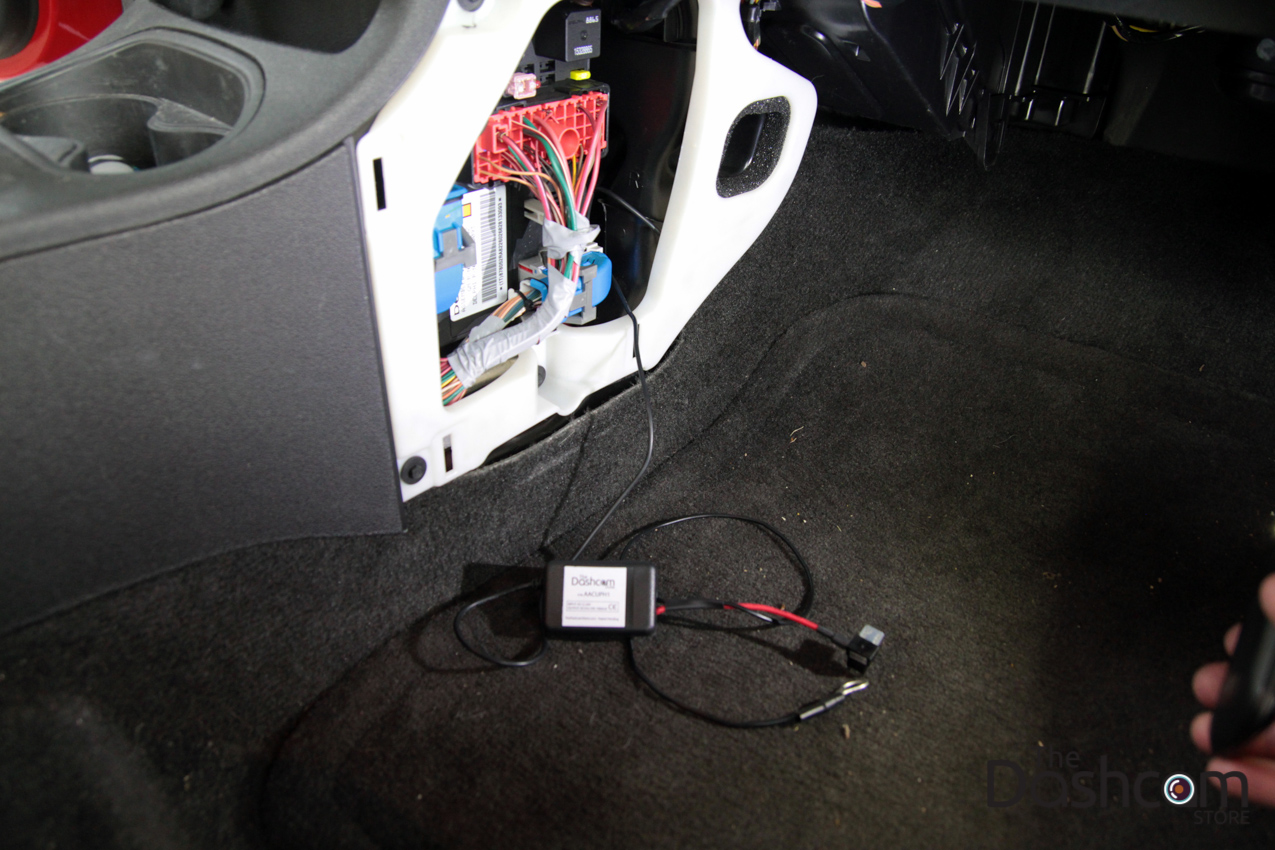

The installation kit has been tucked behind the carpet and is now in the vicinity of the fuse box:

Mini300 dashcam and installation kit in 2009 Pontiac G5

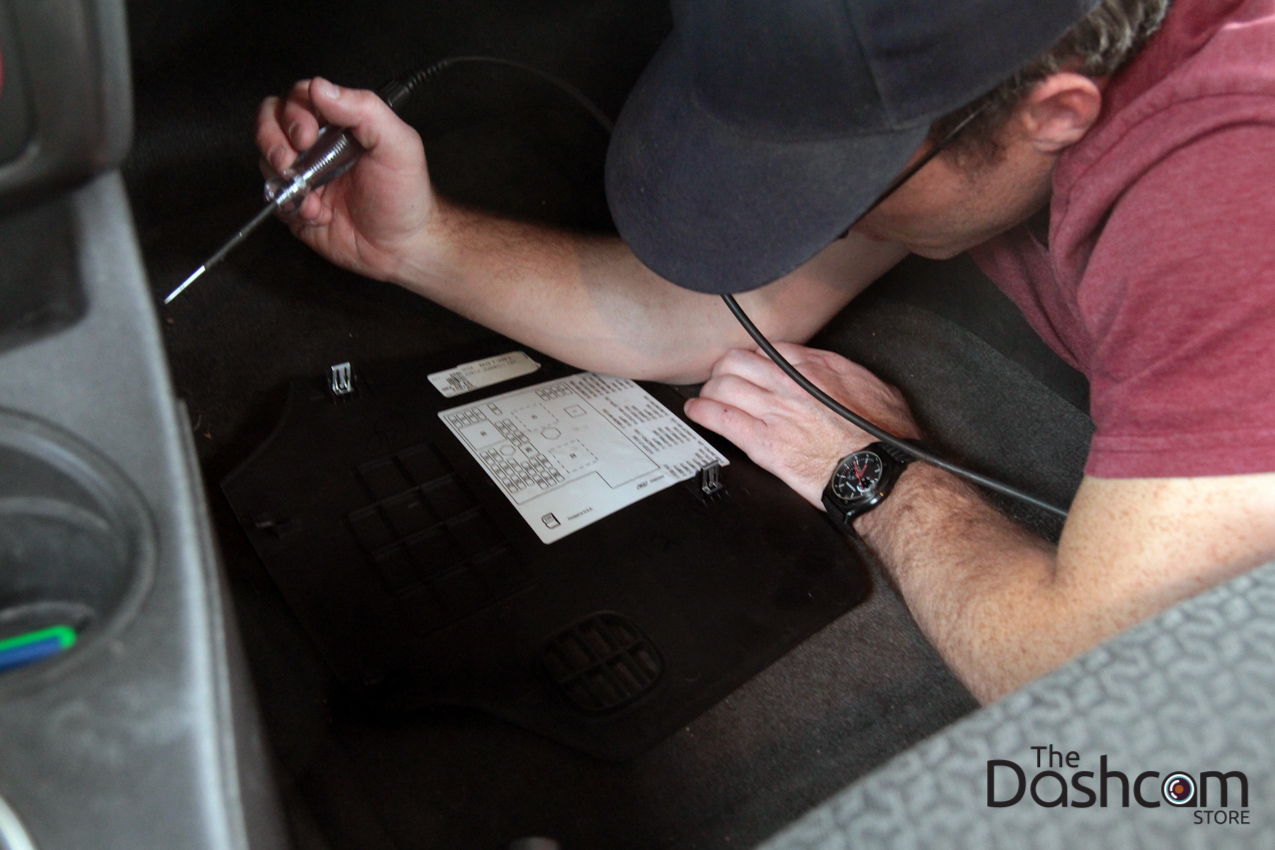

Reading the fuse chart to identify potential "hot in start" fuses

Mini300 dashcam and installation kit in 2009 Pontiac G5

The fuse tester tells us we've found our fuse:

Mini300 dashcam and installation kit in 2009 Pontiac G5

The hot-on-start fuse from the vehicle (10amp in this case) goes into the empty slot on the installation kit. The 2amp fuse is for the dashcam:

Mini300 dashcam and installation kit in 2009 Pontiac G5

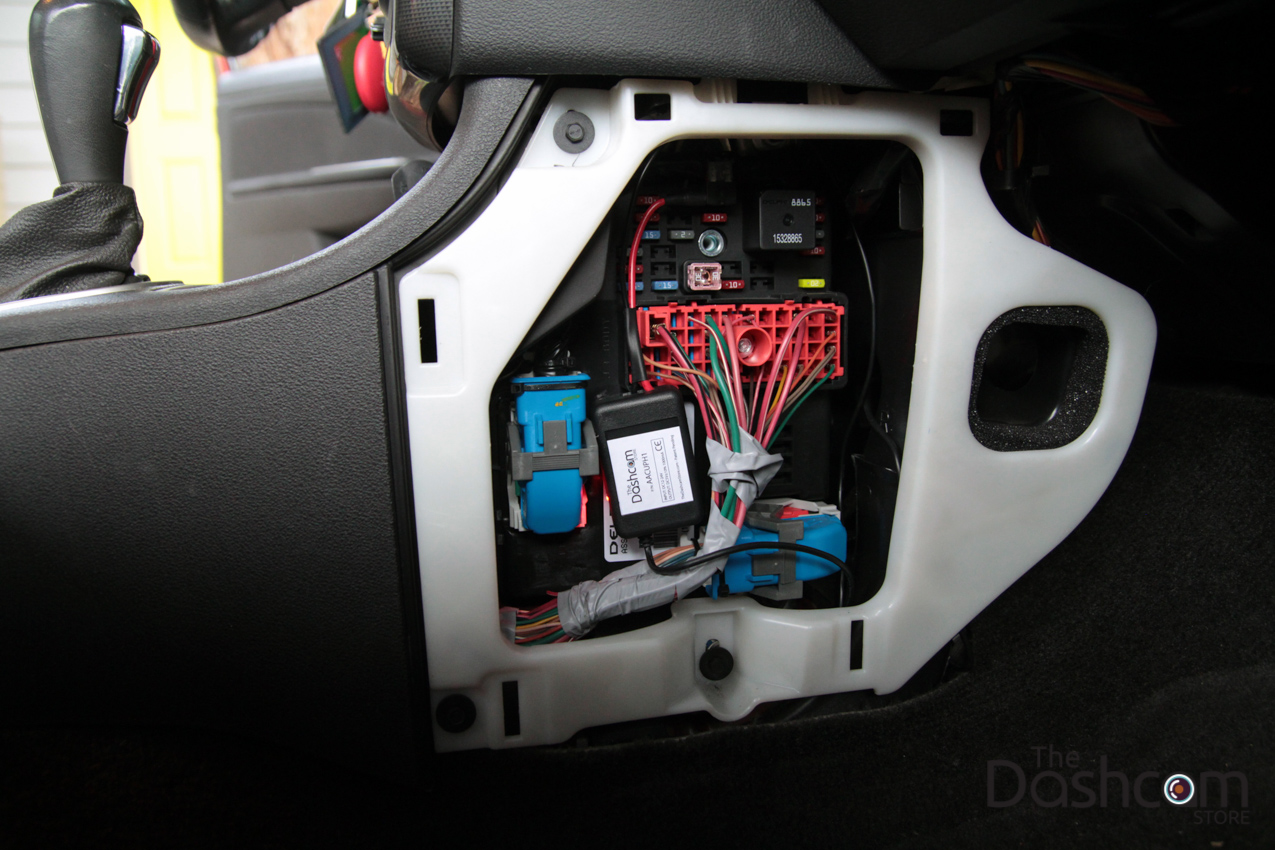

The installation kit now plugged in to the correct slot in the fuse box:

Mini300 dashcam and installation kit in 2009 Pontiac G5

We found a metal ground point and checked our circuit. Note the LED on the installation kit is on:

Mini300 dashcam and installation kit in 2009 Pontiac G5

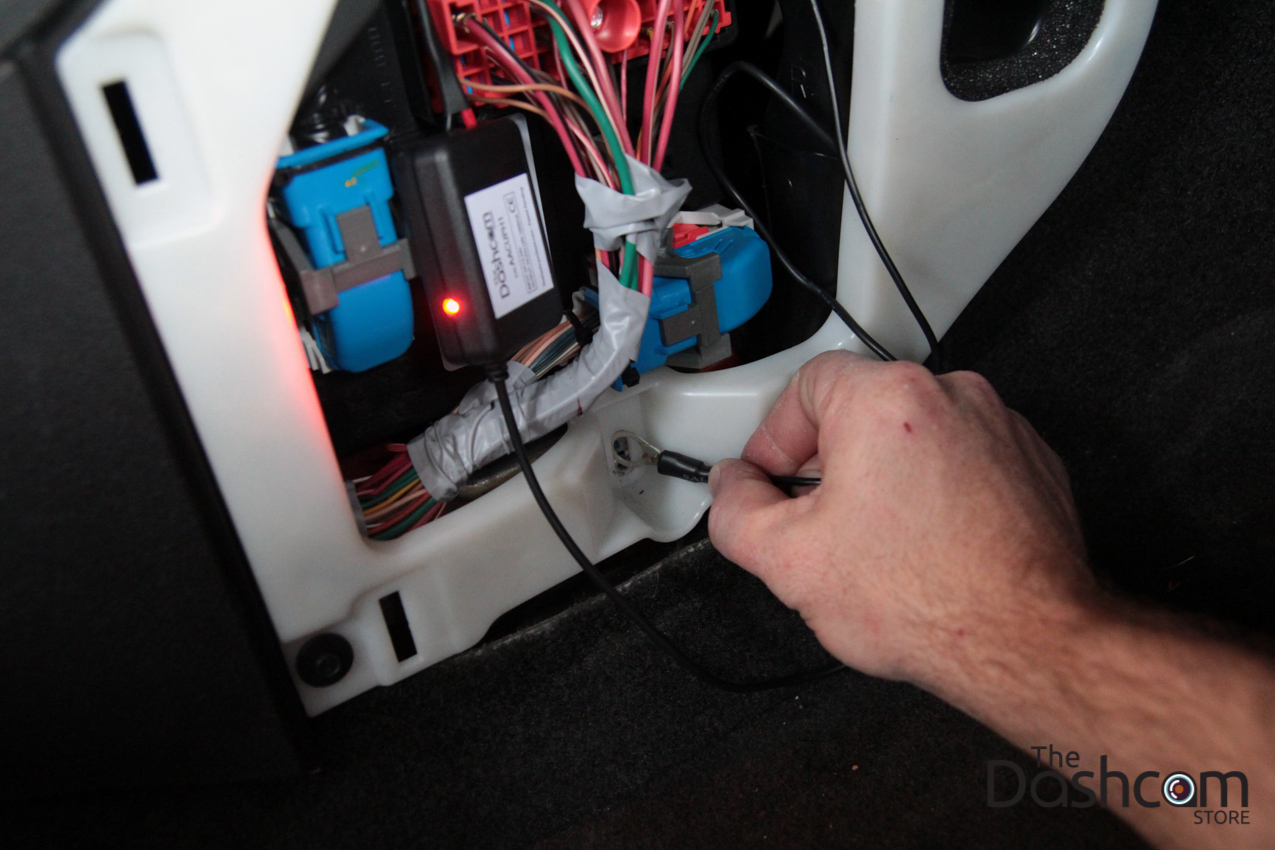

The installation kit ground lug has been grounded (on the metal of the body) and wiring tucked away securely using the provided zip ties. Simple!

Mini300 dashcam and installation kit in 2009 Pontiac G5

Check we have power at the dashcam, done!

Mini300 dashcam and installation kit in 2009 Pontiac G5

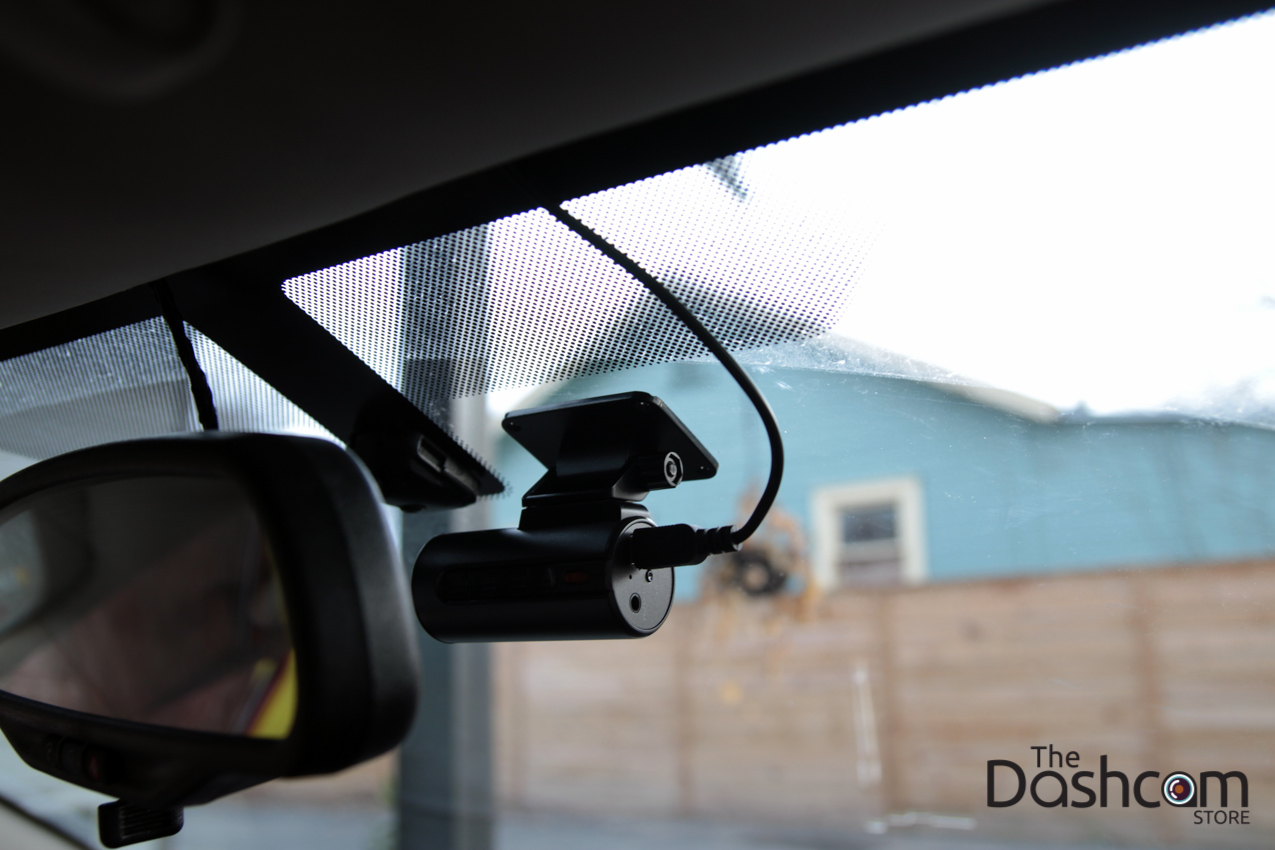

Mini300 fully installed, nice and clean:

Mini300 dashcam and installation kit in 2009 Pontiac G5

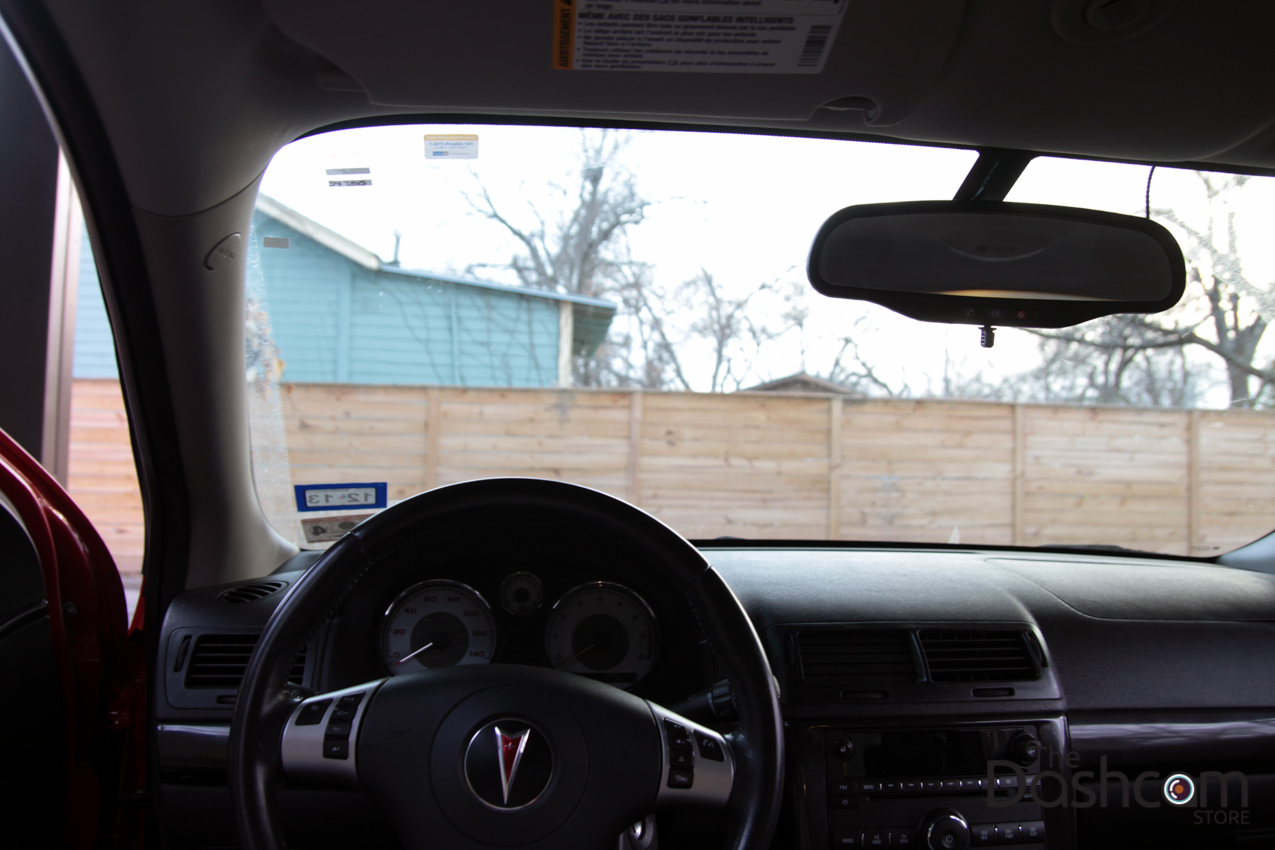

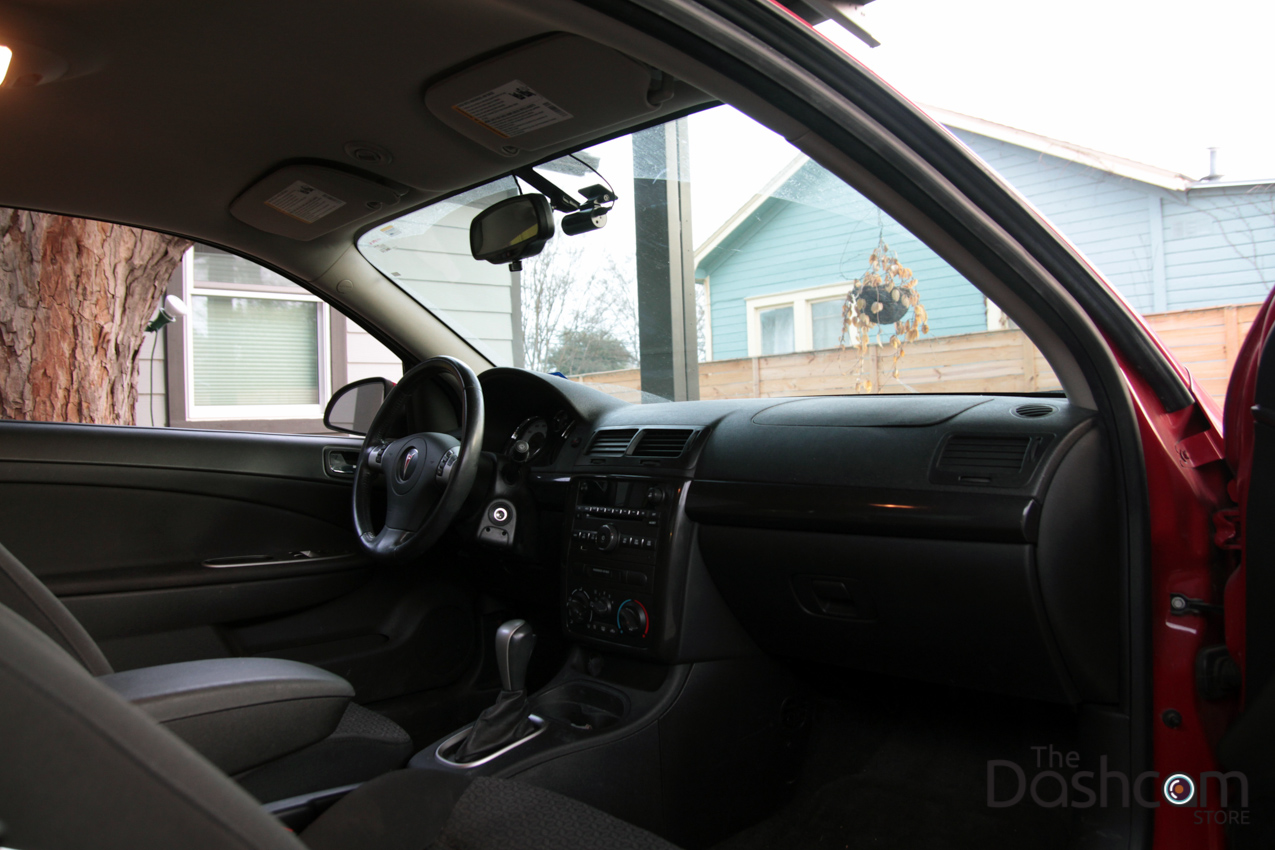

Do you see the dashcam? Now this driver won't be distracted, and they can rest assured that they are protected from insurance fraud or other driving situations.

Mini300 dashcam and installation kit in 2009 Pontiac G5

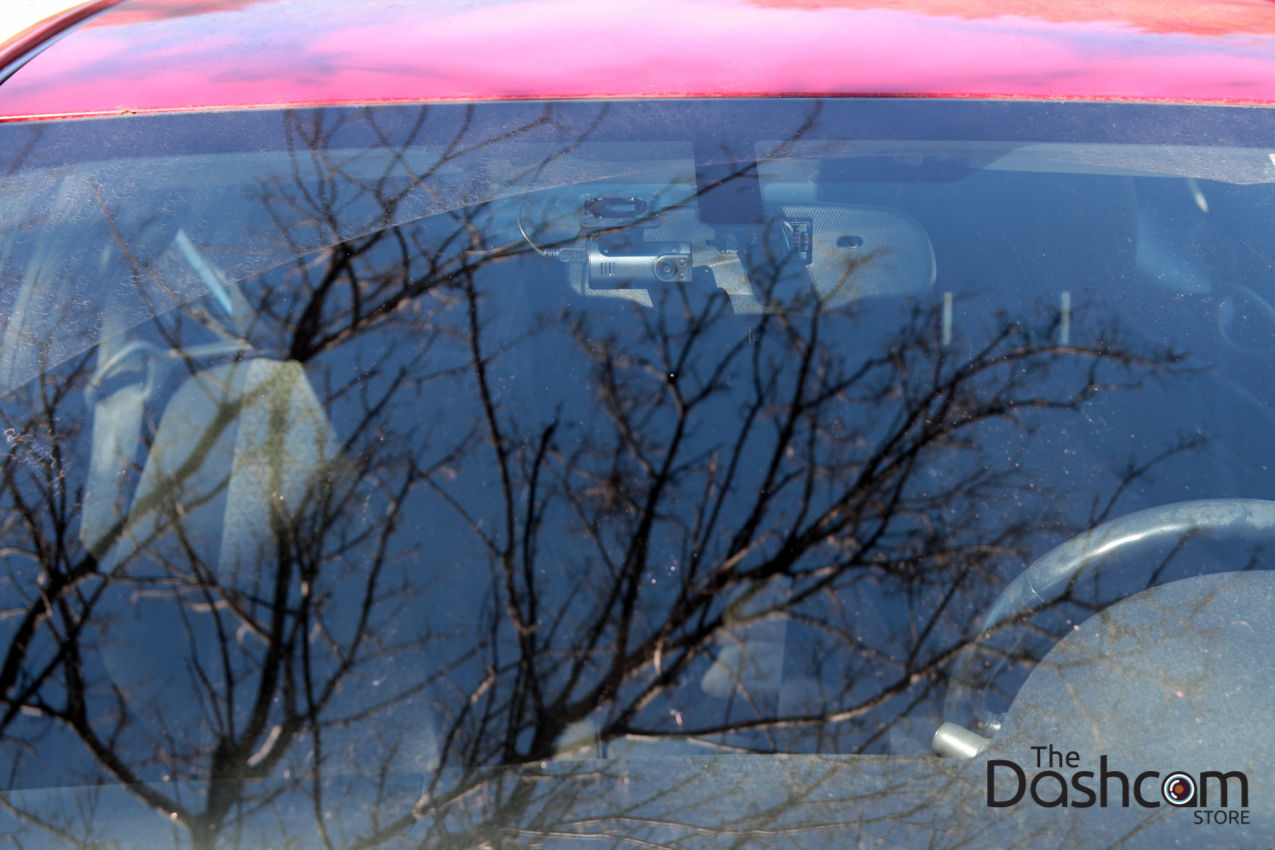

Exterior views of the Mini300, it's barely visible!

Mini300 dashcam and installation kit in 2009 Pontiac G5 Mini300 dashcam and installation kit in 2009 Pontiac G5

Drive safe!
