2006 Toyota Tacoma BlackVue DR650GW-2CH Dash Cam & Power Magic Pro Installation

In this gallery, we perform a full installation our dual-lens, full HD BlackVue DR650GW-2CH and Power Magic Pro in a Toyota Tacoma.

NOTE: this type of installation should be performed by a qualified individual or business only. Working with your vehicle's power system can be dangerous to both you and your vehicle if you do not know what you are doing! If you have any doubts, please consult a professional.

To view additional instructions for performing an installation such as this, please view our advanced dashcam installation how-to.

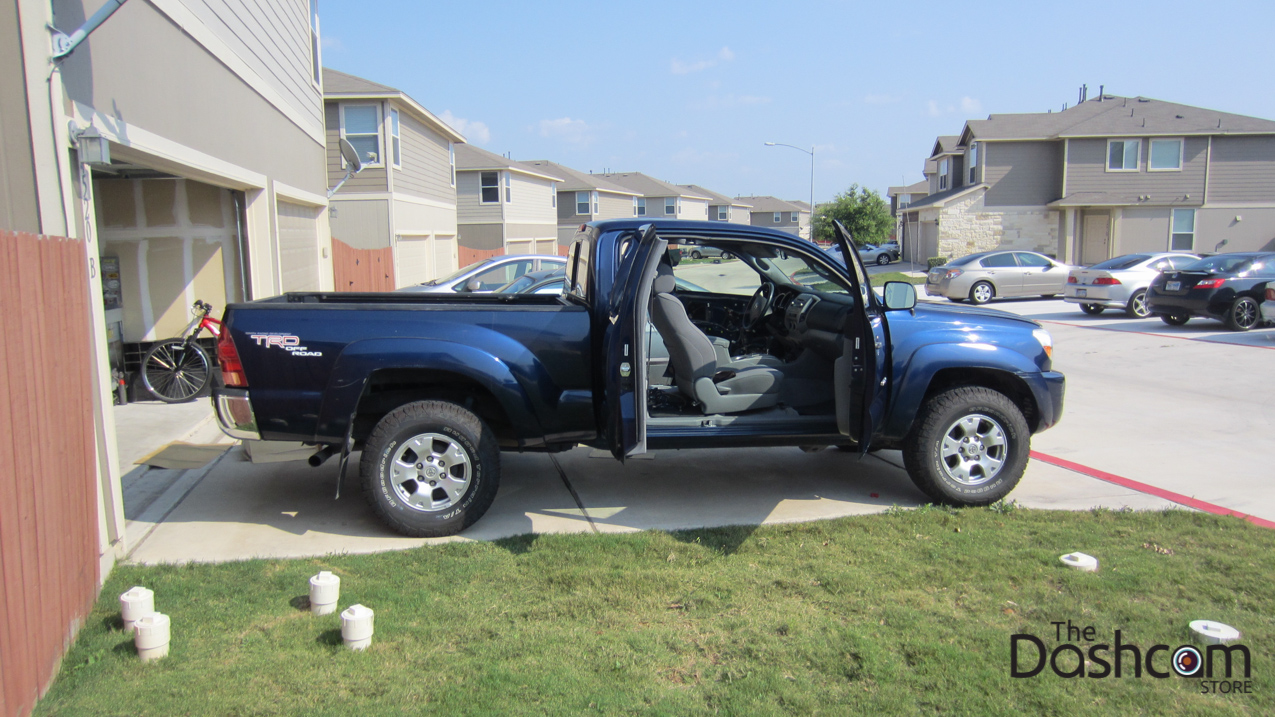

Our vehicle being outfitted with the "Dashcam Defense": 2006 Toyota Tacoma TRD 4x4 (Extended Cab). Click on any image to view a larger version.

BlackVue DR650GW-2CH Dash Cam installation 2006 Toyota Tacoma

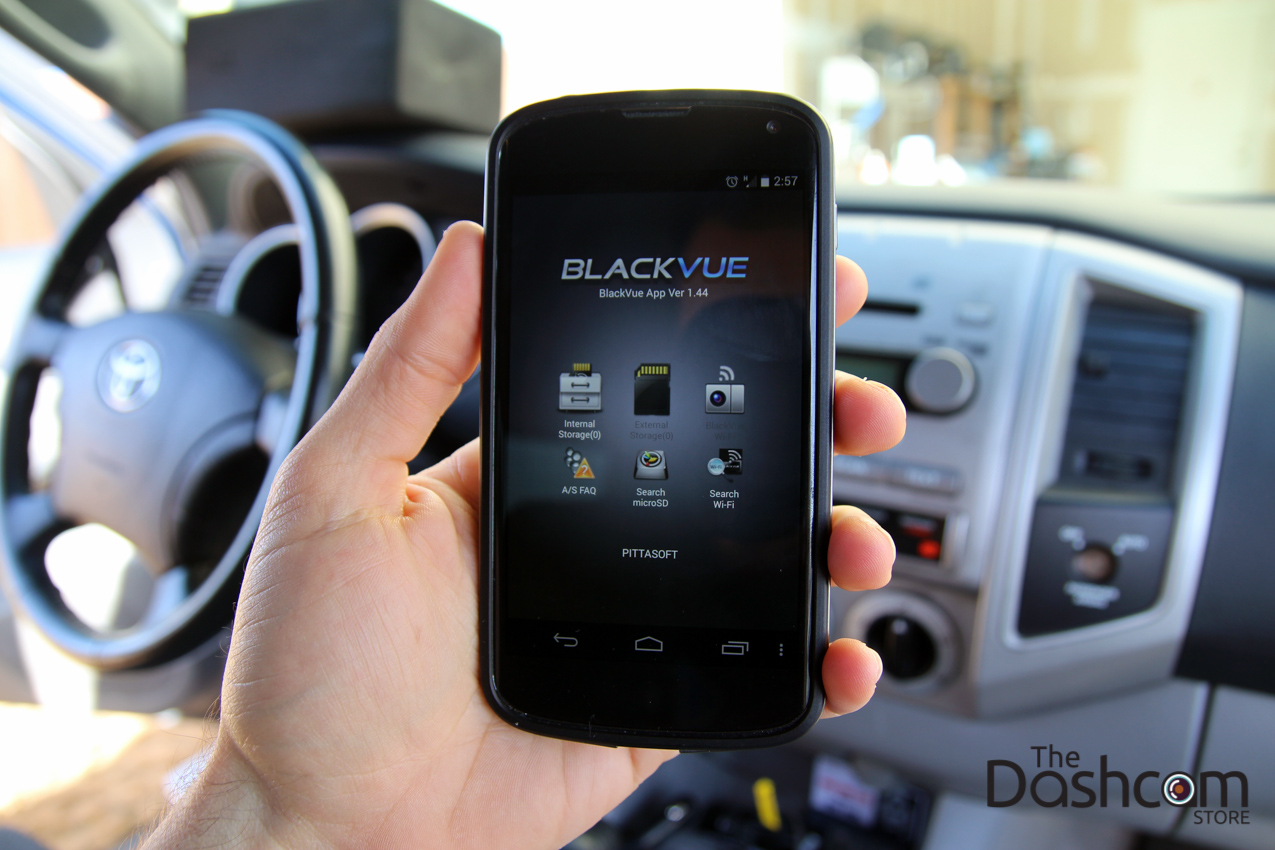

First step, download the BlackVue app for your Android or Apple smartphone/tablet, or your Windows 8.1 tablet/laptop

BlackVue DR650GW-2CH Dash Cam installation 2006 Toyota Tacoma

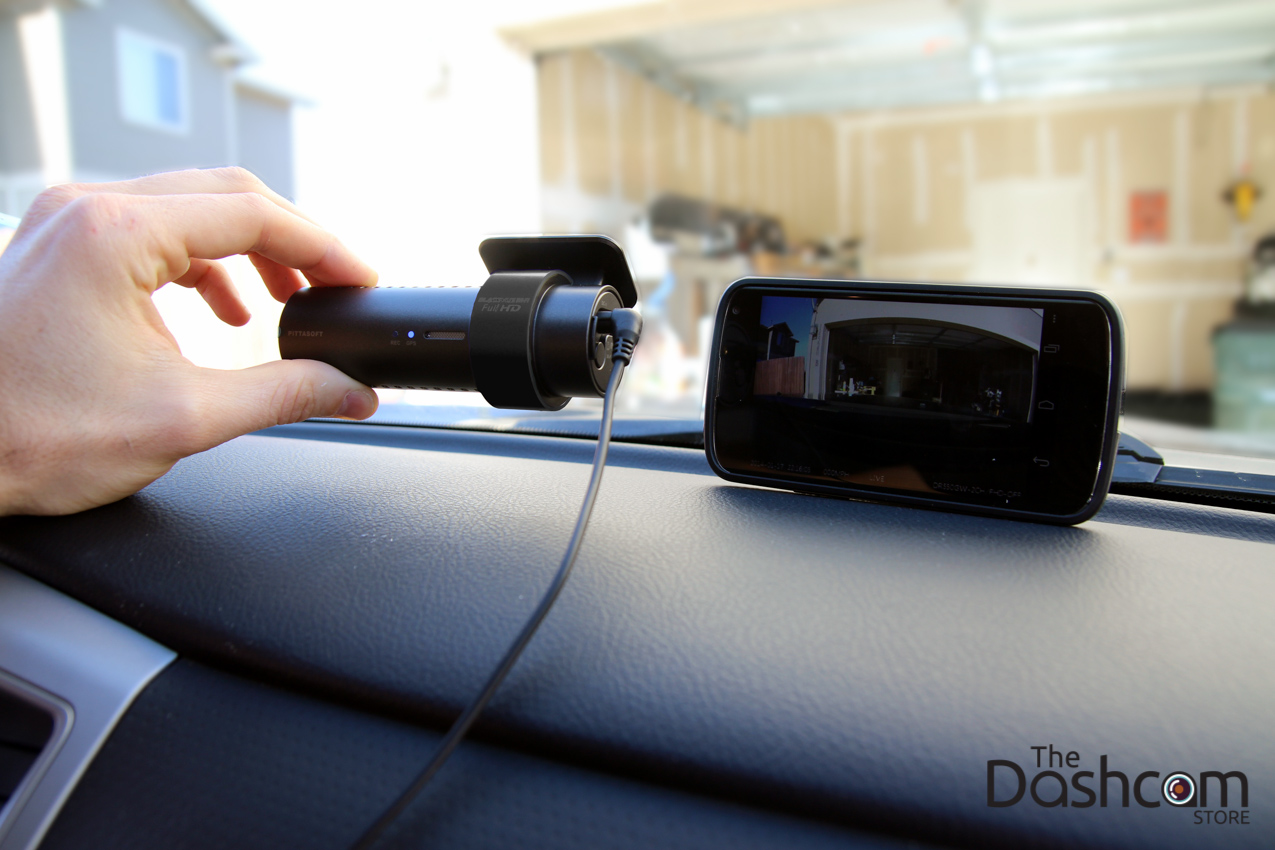

This way, you can use the live view over WiFi to help you position the camera!

BlackVue DR650GW-2CH Dash Cam installation 2006 Toyota Tacoma

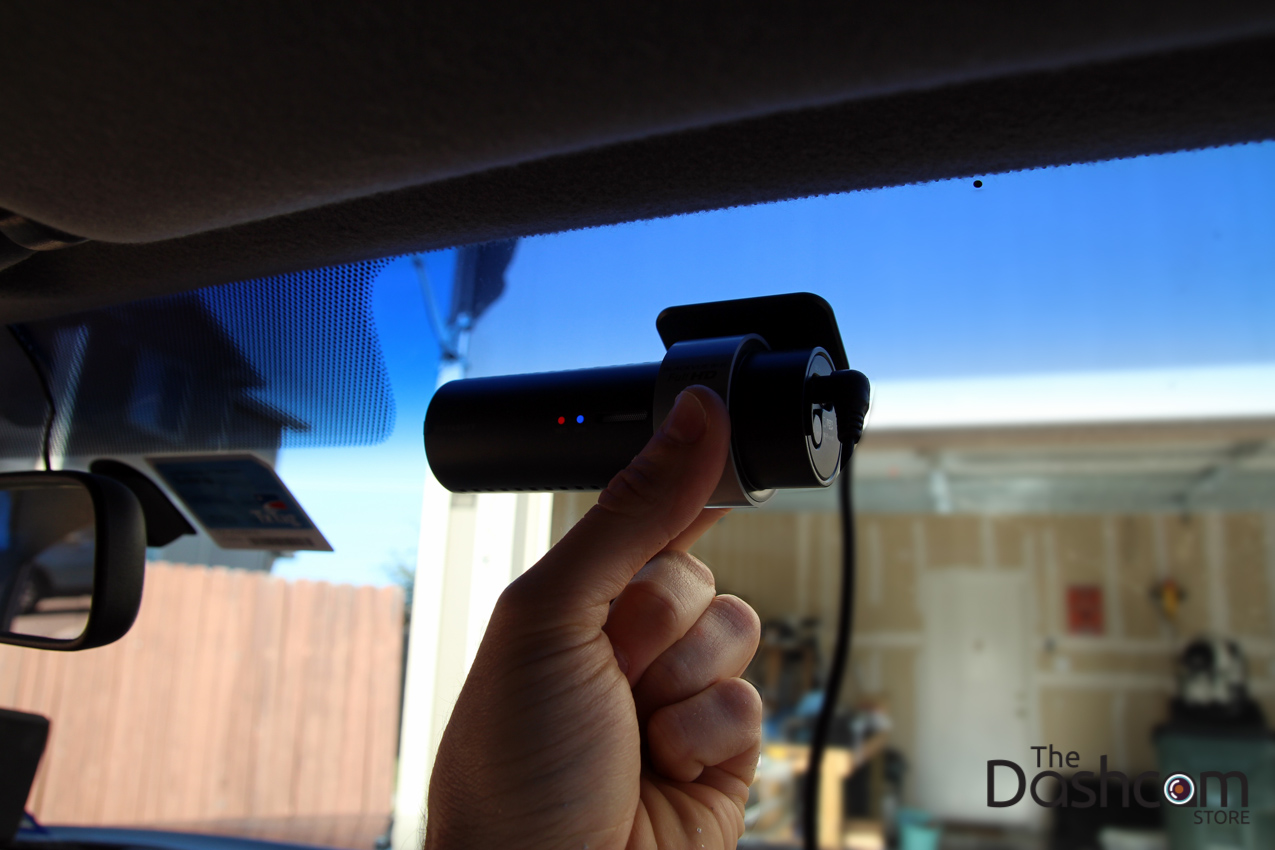

It's usually best to place the dash cam higher up in the windshield

BlackVue DR650GW-2CH Dash Cam installation 2006 Toyota Tacoma

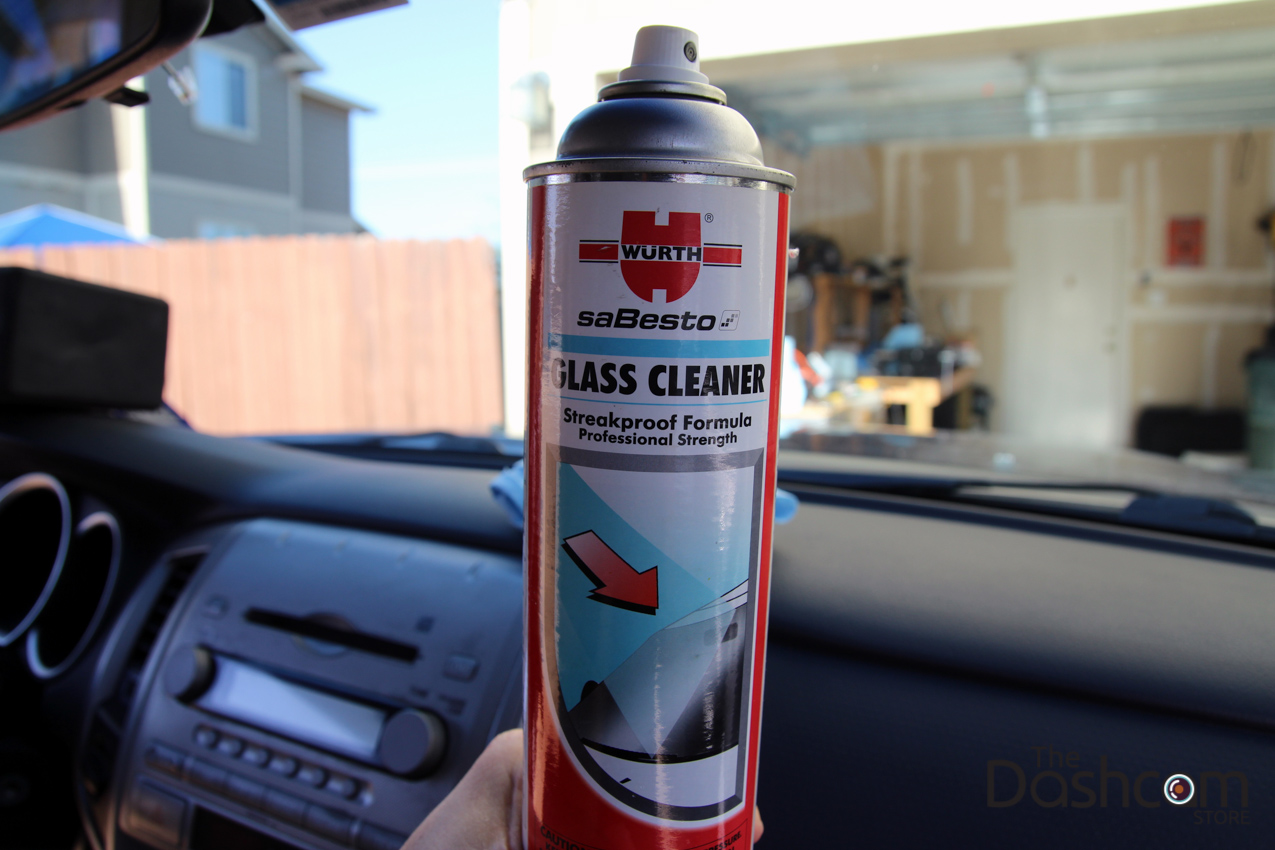

Once you've found your ideal mounting location, use a quality cleaner to prepare the windshield. It's critical to have a clean surface for the adhesive pad to stick to, if done properly, the adhesive mount will be strong for a year or more.

BlackVue DR650GW-2CH Dash Cam installation 2006 Toyota Tacoma BlackVue DR650GW-2CH Dash Cam installation 2006 Toyota Tacoma

Front BlackVue DR650 mount is fully adhered to the windshield (actual dash cam removed from the mount for now):

BlackVue DR650GW-2CH Dash Cam installation 2006 Toyota Tacoma

Now we do the same with the BlackVue rear lens element, position the camera while using the WiFi live-view:

BlackVue DR650GW-2CH Dash Cam installation 2006 Toyota Tacoma

Rear element mounted, you can see it was mounted to the right of center since the Tacoma center glass piece slides open to the left:

BlackVue DR650GW-2CH Dash Cam installation 2006 Toyota Tacoma

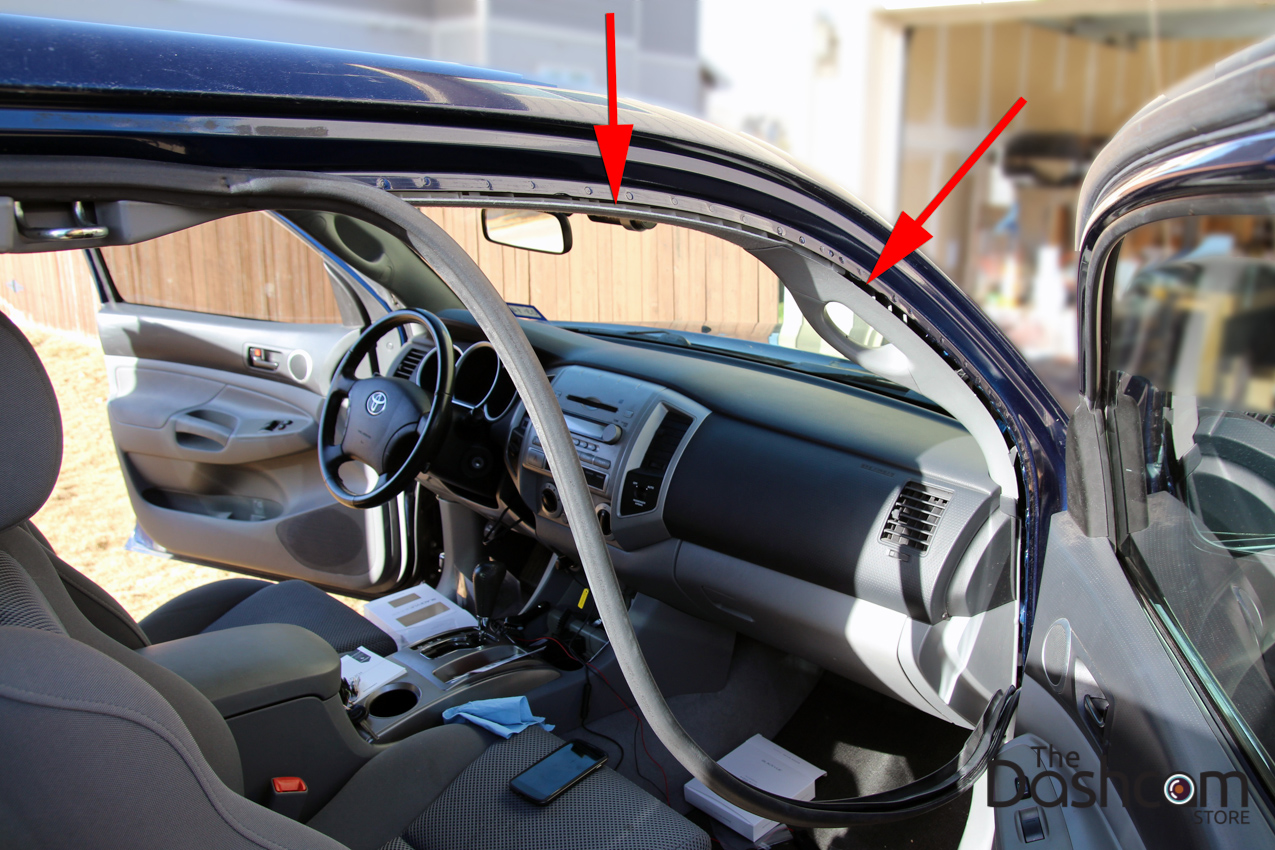

Now in order to connect the BlackVue rear lens element to the front element with the coaxial cable, we will gently tug down on the rubber door trim in order to expose the gap between the interior body panels and the frame. The gap is highlighted with the red arrows:

BlackVue DR650GW-2CH Dash Cam installation 2006 Toyota Tacoma

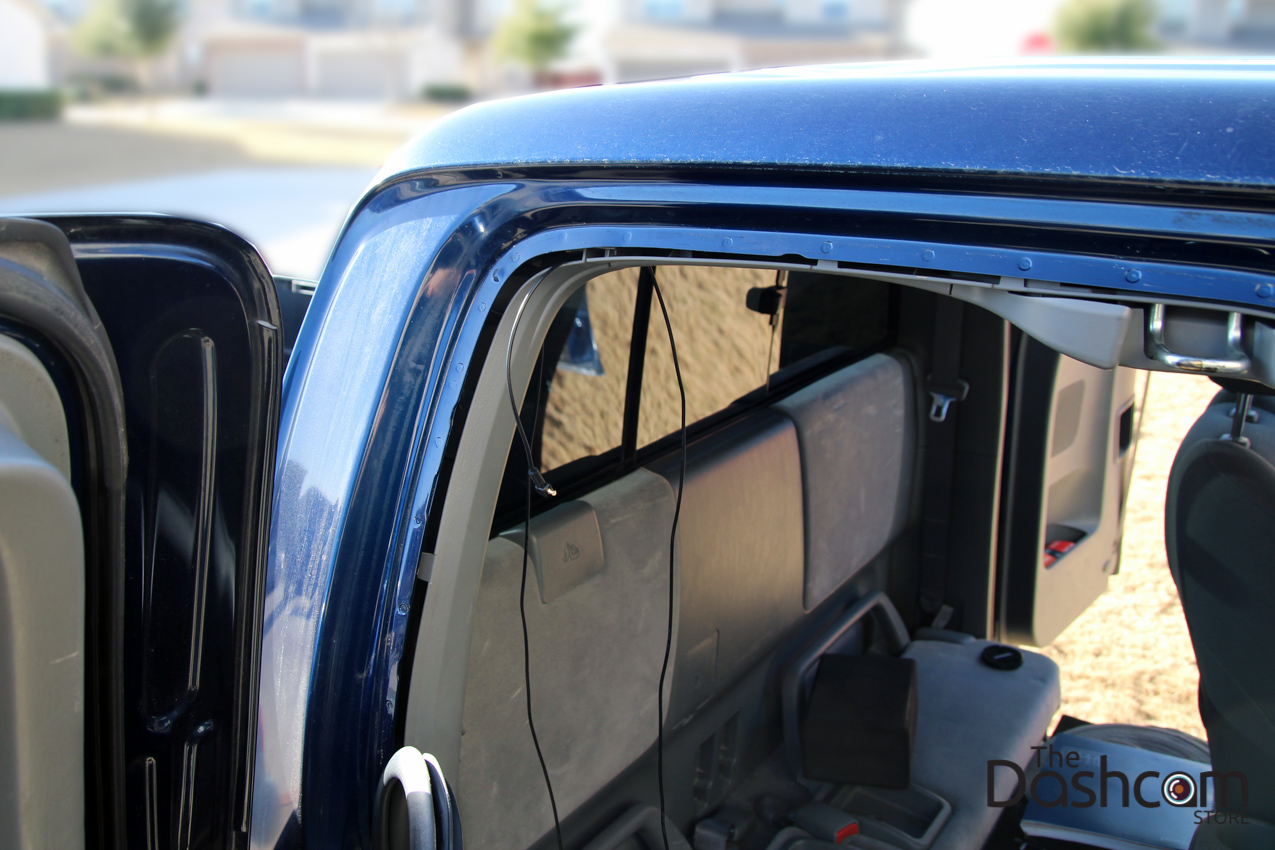

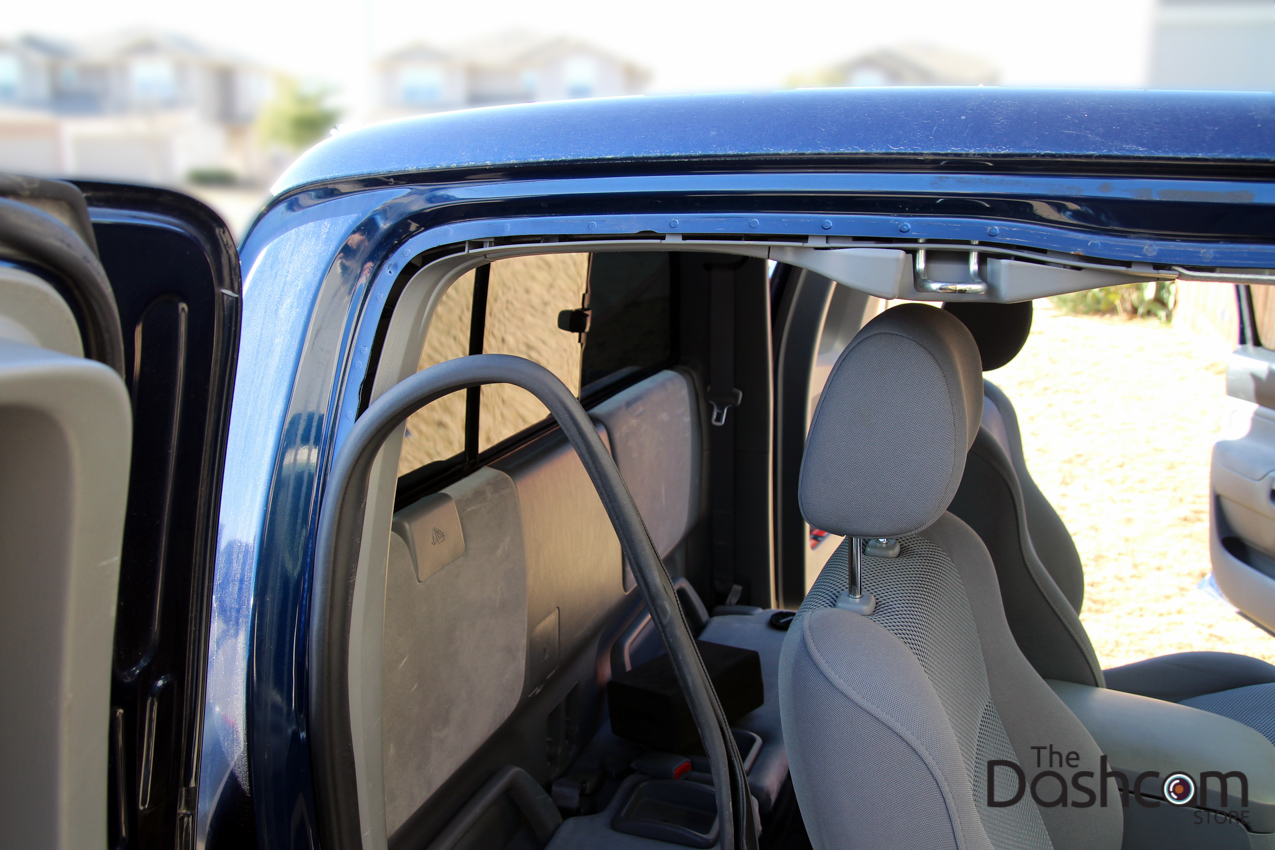

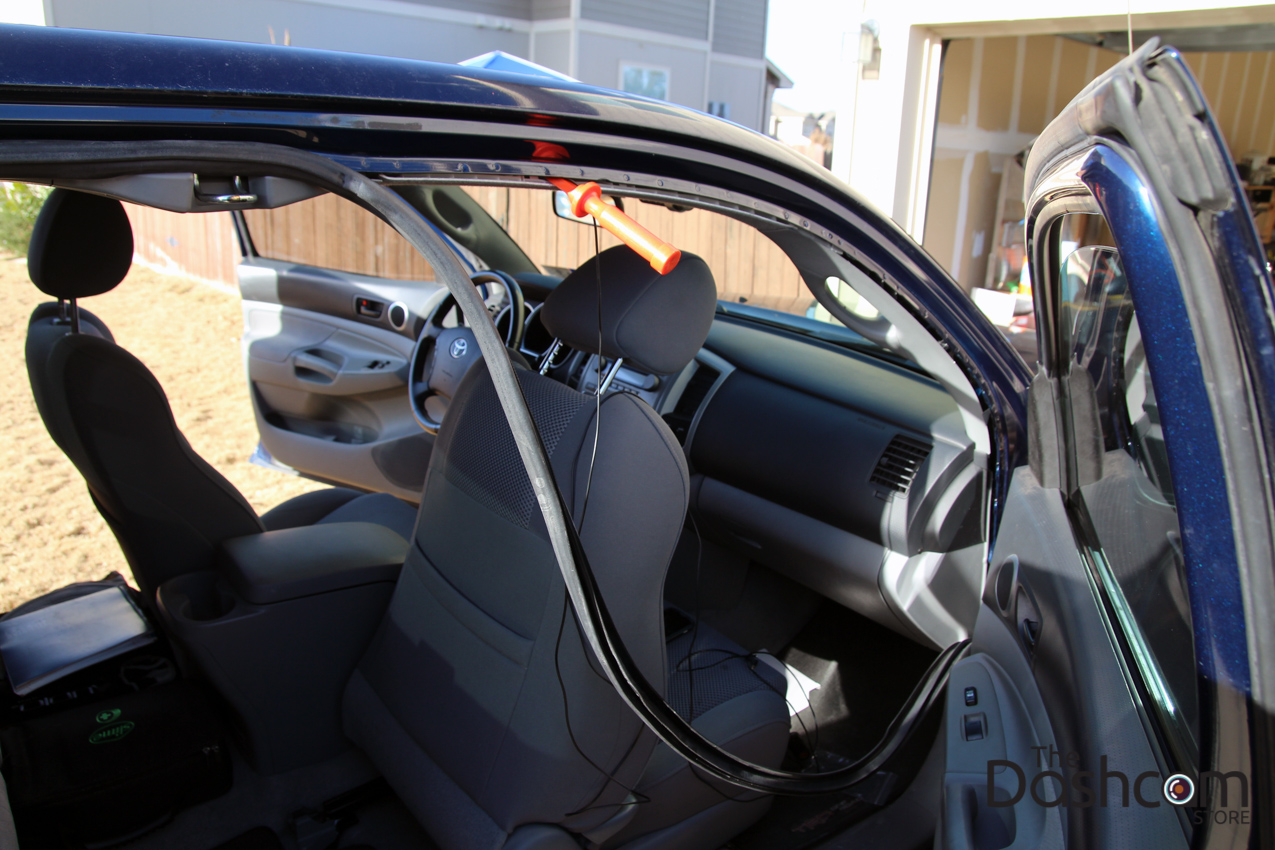

Door trim moulding fully dropped down from upper body frame to completely expose our path to the front camera:

BlackVue DR650GW-2CH Dash Cam installation 2006 Toyota Tacoma

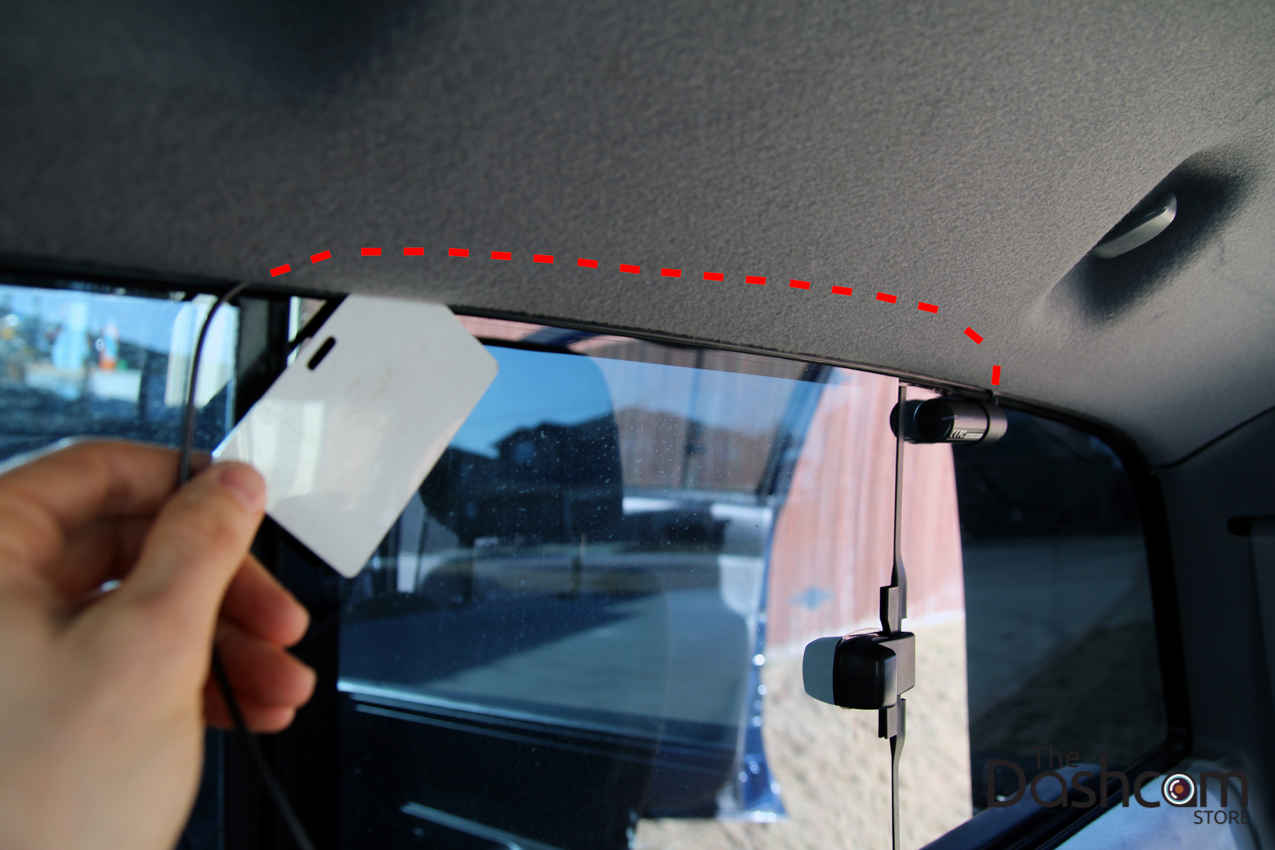

Now, starting at the back camera, start tucking the coaxial cable into the headliner as shown. It may help to use a plastic trim tool or credit card to help run the cable. The cable path is shown with the red highlighted line:

BlackVue DR650GW-2CH Dash Cam installation 2006 Toyota Tacoma

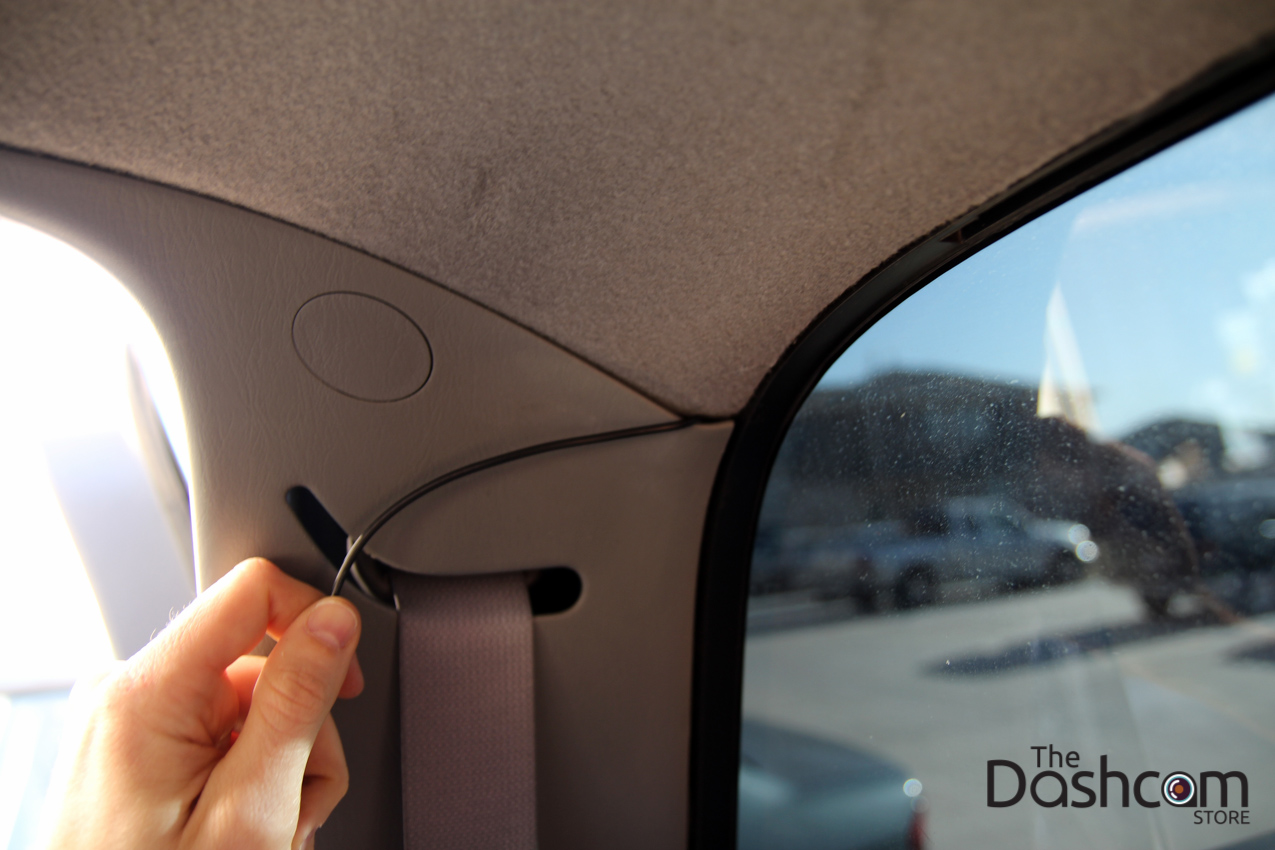

The coaxial cable is now all the way to the rear B-pillar, just continue tucking the cable along the top of the B-pillar:

BlackVue DR650GW-2CH Dash Cam installation 2006 Toyota Tacoma

Now we have the rear camera coaxial cable partially run, we can start to tuck it into the gap we exposed earlier:

BlackVue DR650GW-2CH Dash Cam installation 2006 Toyota Tacoma

Coaxial cable is partially run and the rubber trim partially put back in place. It may help to use a plastic trim tool as shown to carefully help guide the cable along the gap:

BlackVue DR650GW-2CH Dash Cam installation 2006 Toyota Tacoma

Now the coaxial cable (gold plug) from the rear camera is run all the way to the front. Drop enough cable to plug in to the front camera, and tuck the rest securely behind the head liner. In this photo we have started running the power cable (silver plug) into the headliner as well:

BlackVue DR650GW-2CH Dash Cam installation 2006 Toyota Tacoma

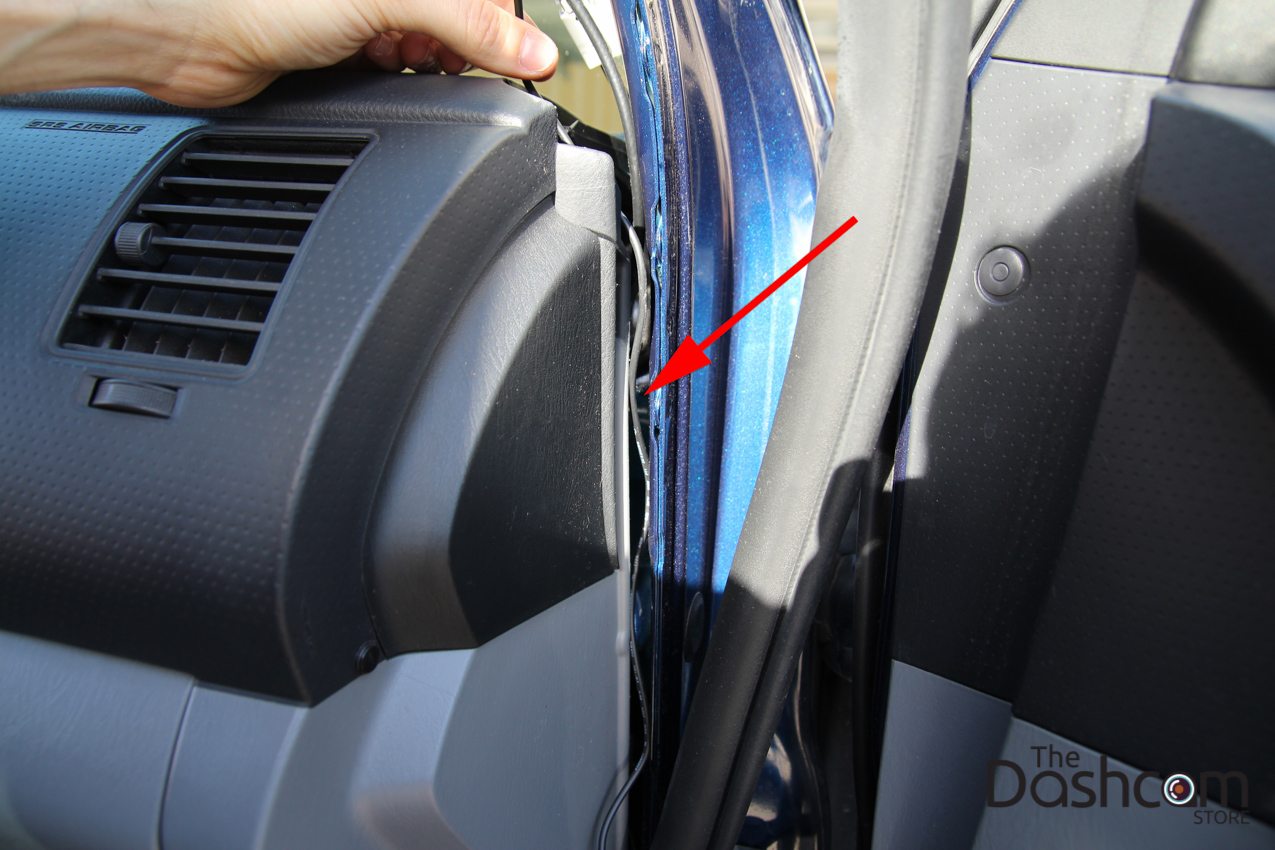

Use the same gap from the door trim piece to run the power cable down the A-pillar past the side of the dashboard:

BlackVue DR650GW-2CH Dash Cam installation 2006 Toyota Tacoma

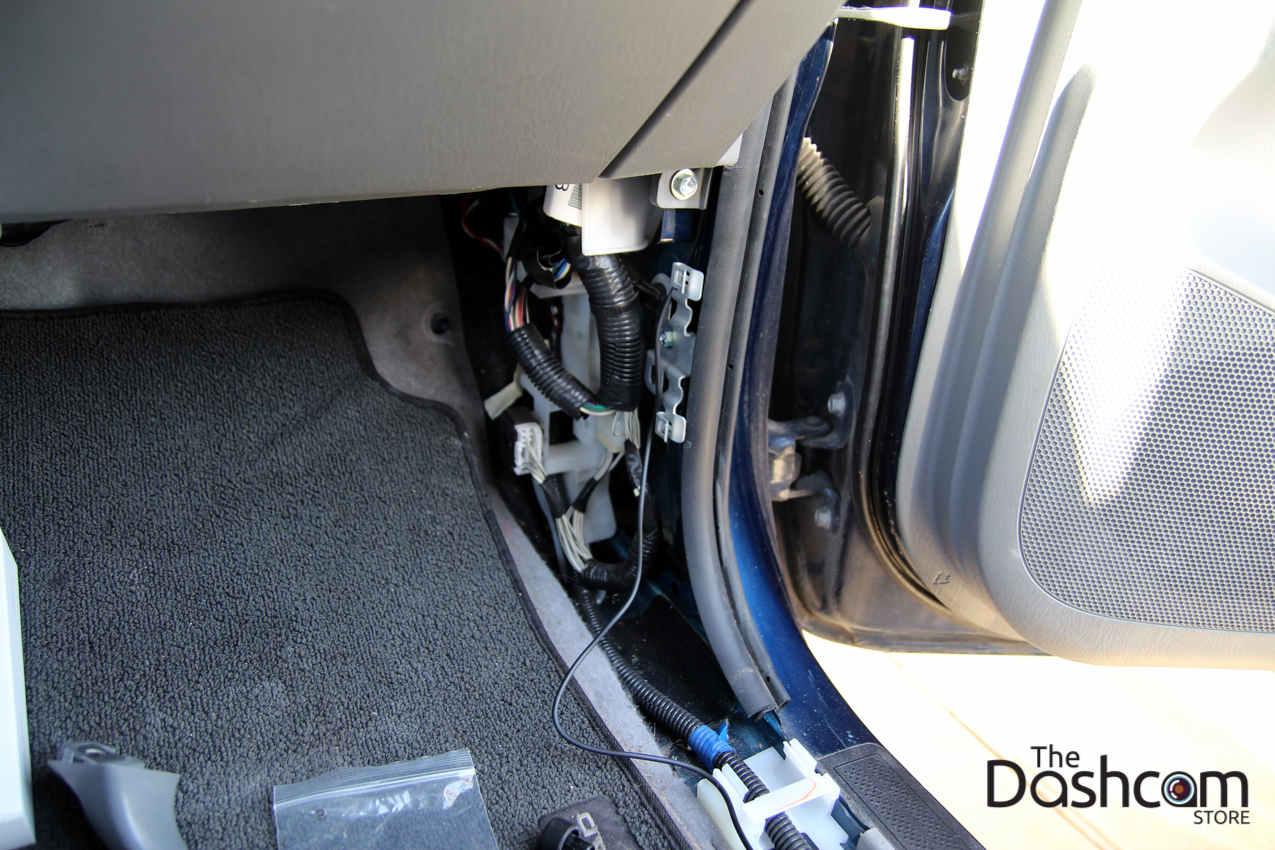

We've removed the kick panel at the bottom of the passenger side A-pillar to continue routing the power cable:

BlackVue DR650GW-2CH Dash Cam installation 2006 Toyota Tacoma

If you are installing just the BlackVue DR650GW-2CH to your cigarette lighter outlet (and not using the Power Magic Pro), you're now done! This is what it might look like (note the BlackVue power cable plugged into the lighter power outlet):

BlackVue DR650GW-2CH Dash Cam installation 2006 Toyota Tacoma

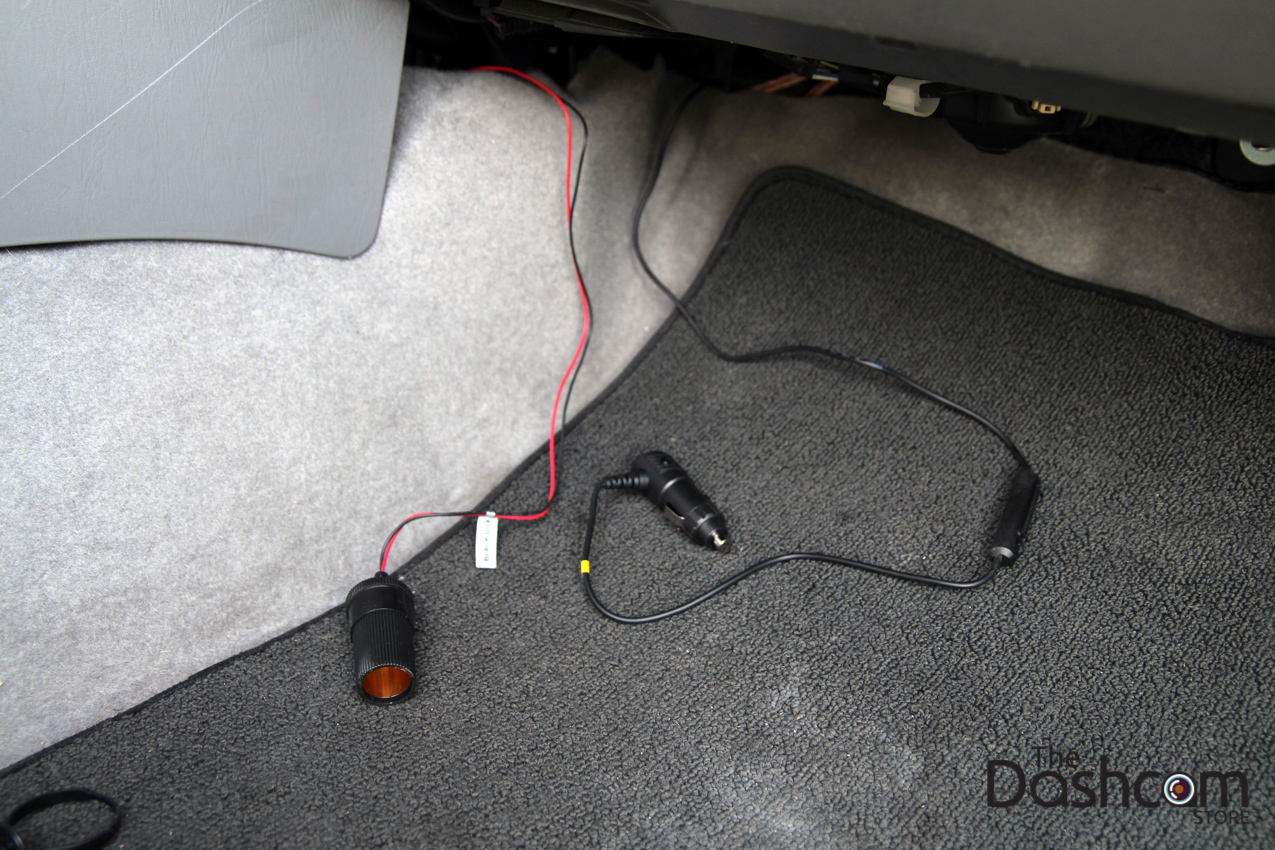

This photo shows how the power cable is routed to the power outlet if not using the Power Magic Pro:

BlackVue DR650GW-2CH Dash Cam installation 2006 Toyota Tacoma

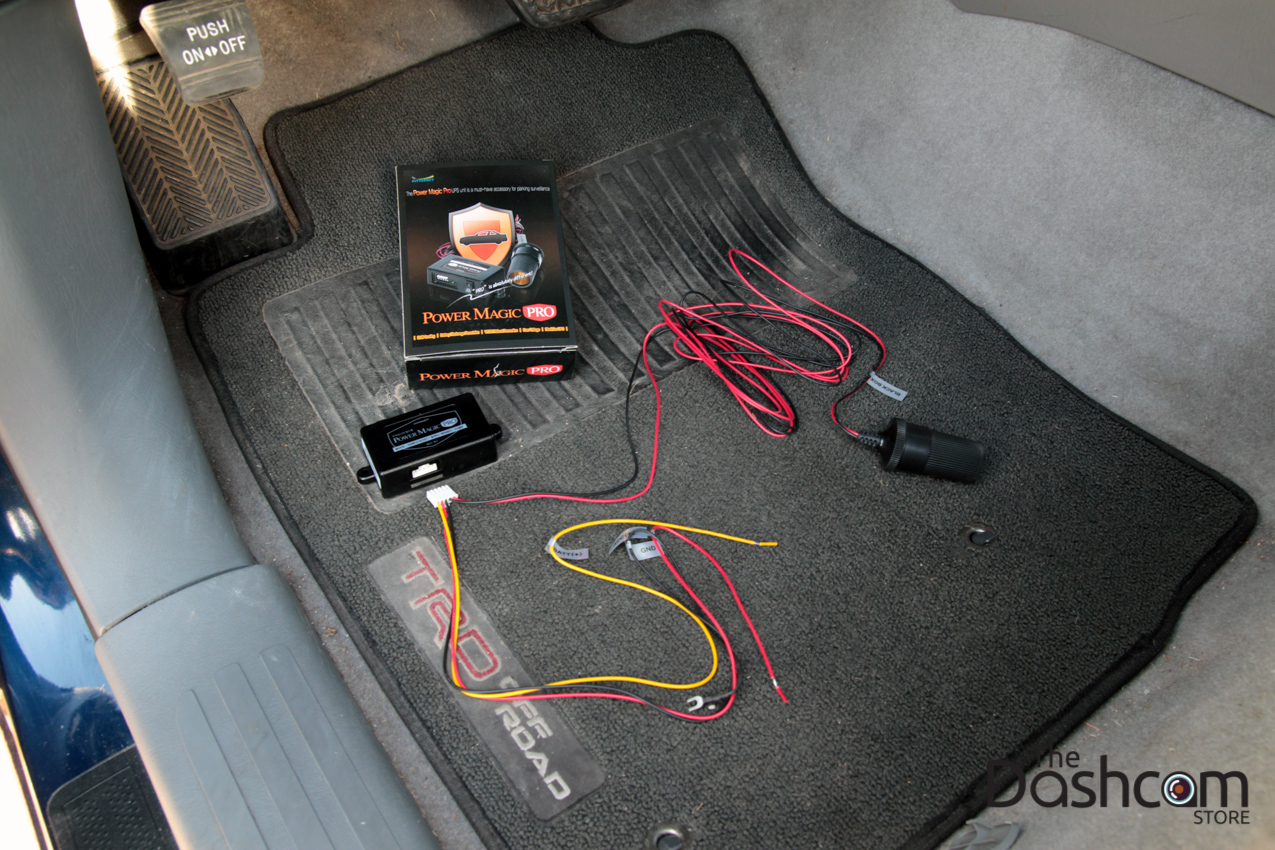

However, we will continue with the installation process of the Power Magic Pro!

BlackVue DR650GW-2CH Dash Cam installation 2006 Toyota Tacoma

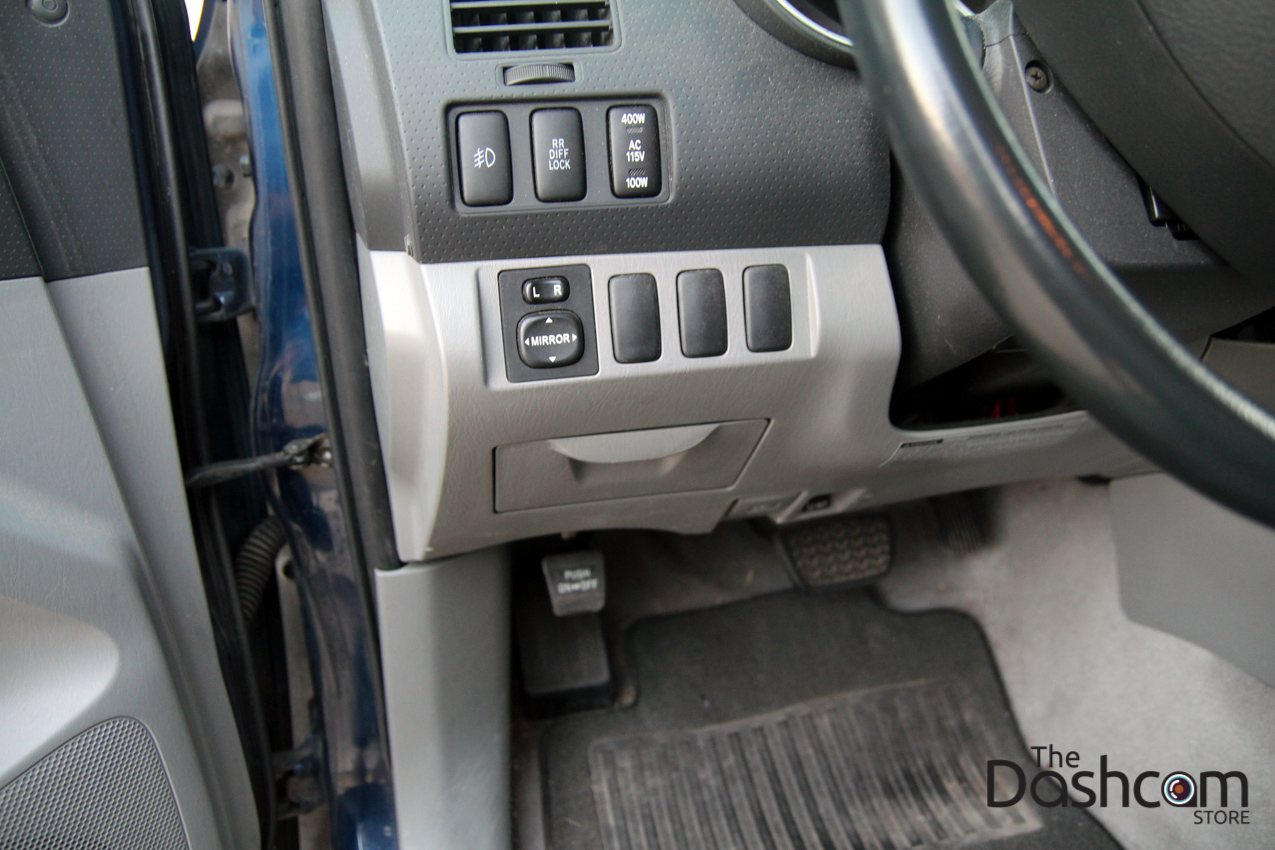

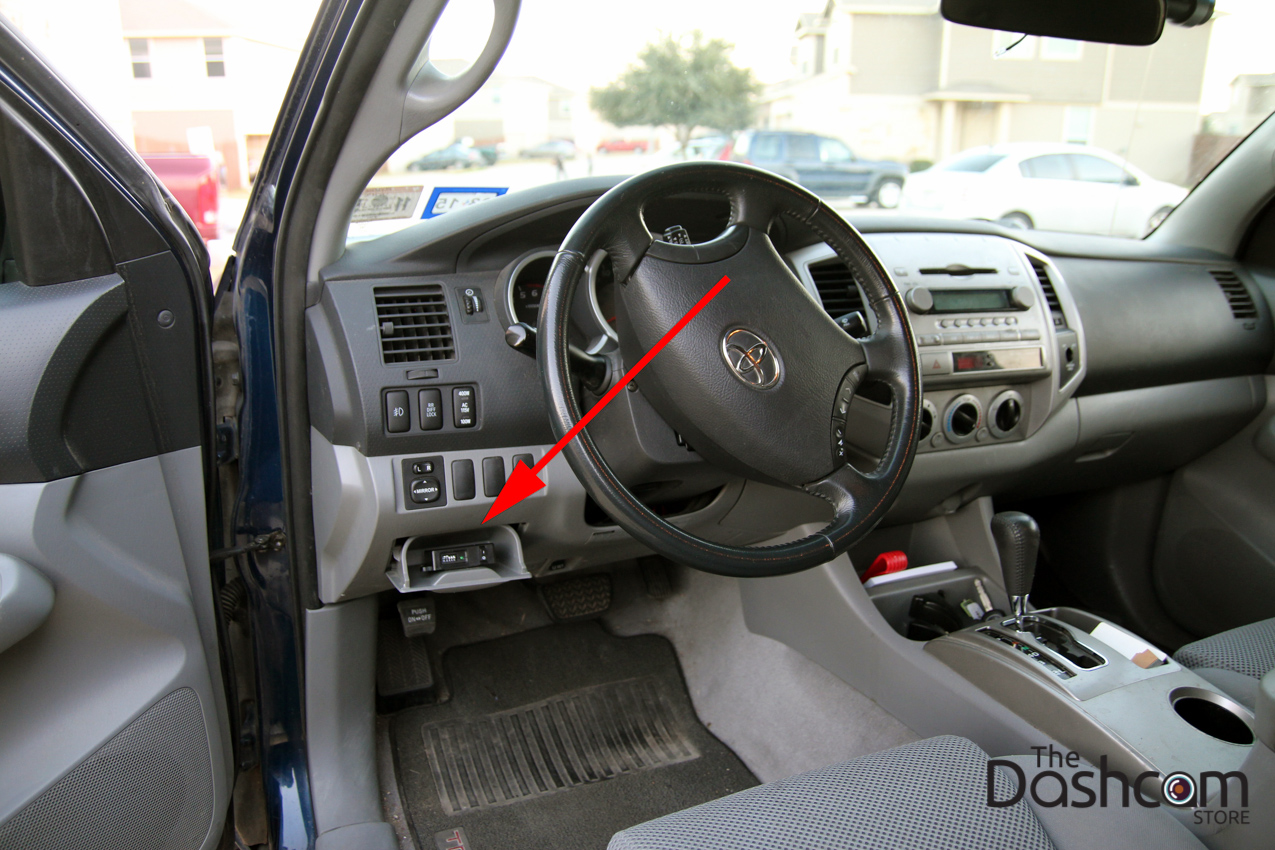

We're now on the driver's side, the interior fuse box is located behind this coin tray:

BlackVue DR650GW-2CH Dash Cam installation 2006 Toyota Tacoma

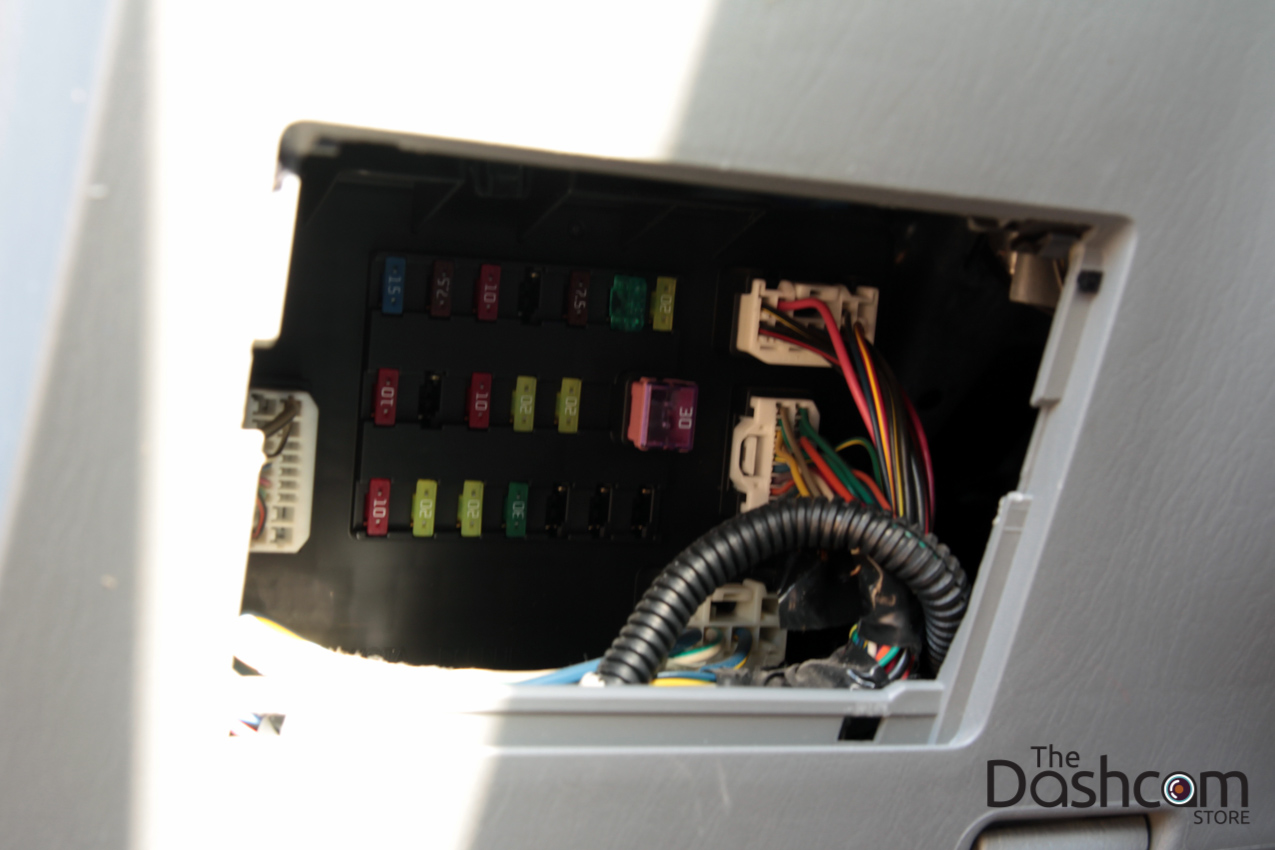

Toyota Tacoma interior fuse box hidden behind coin tray:

BlackVue DR650GW-2CH Dash Cam installation 2006 Toyota Tacoma

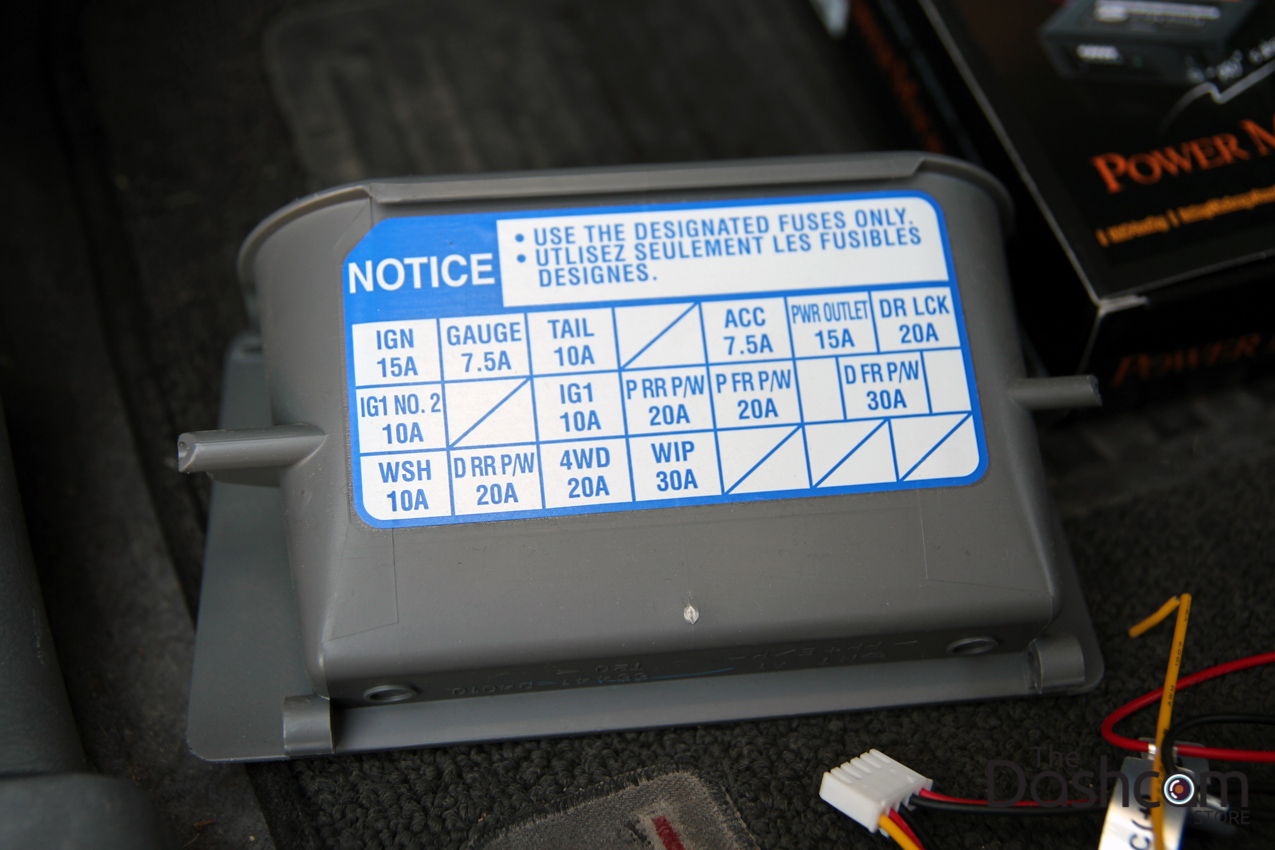

On the back of the coin tray box is a handy fuse chart to give us an idea which ones are 'hot' at all times, and which ones are 'switched' (only hot on start):

BlackVue DR650GW-2CH Dash Cam installation 2006 Toyota Tacoma

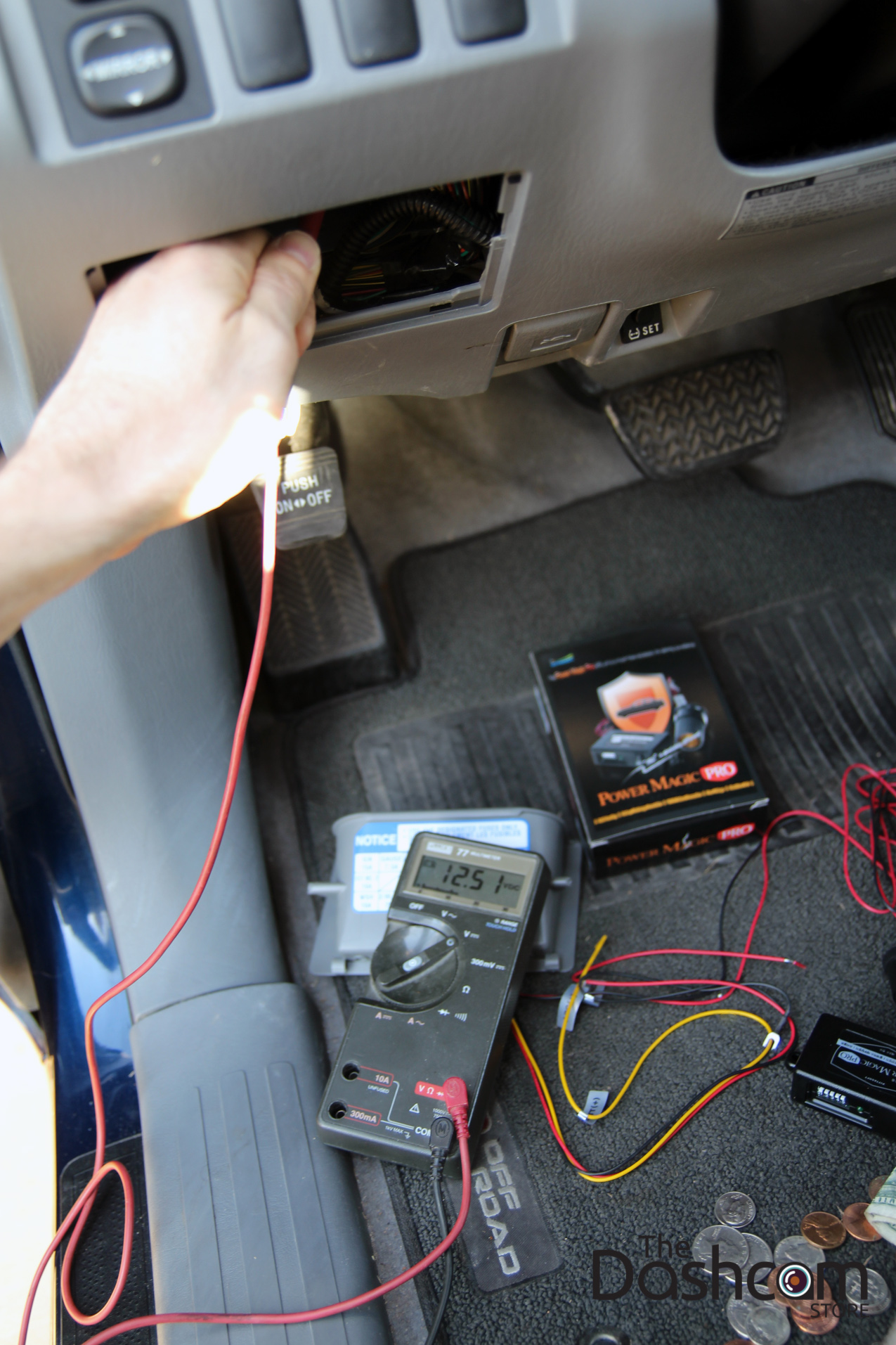

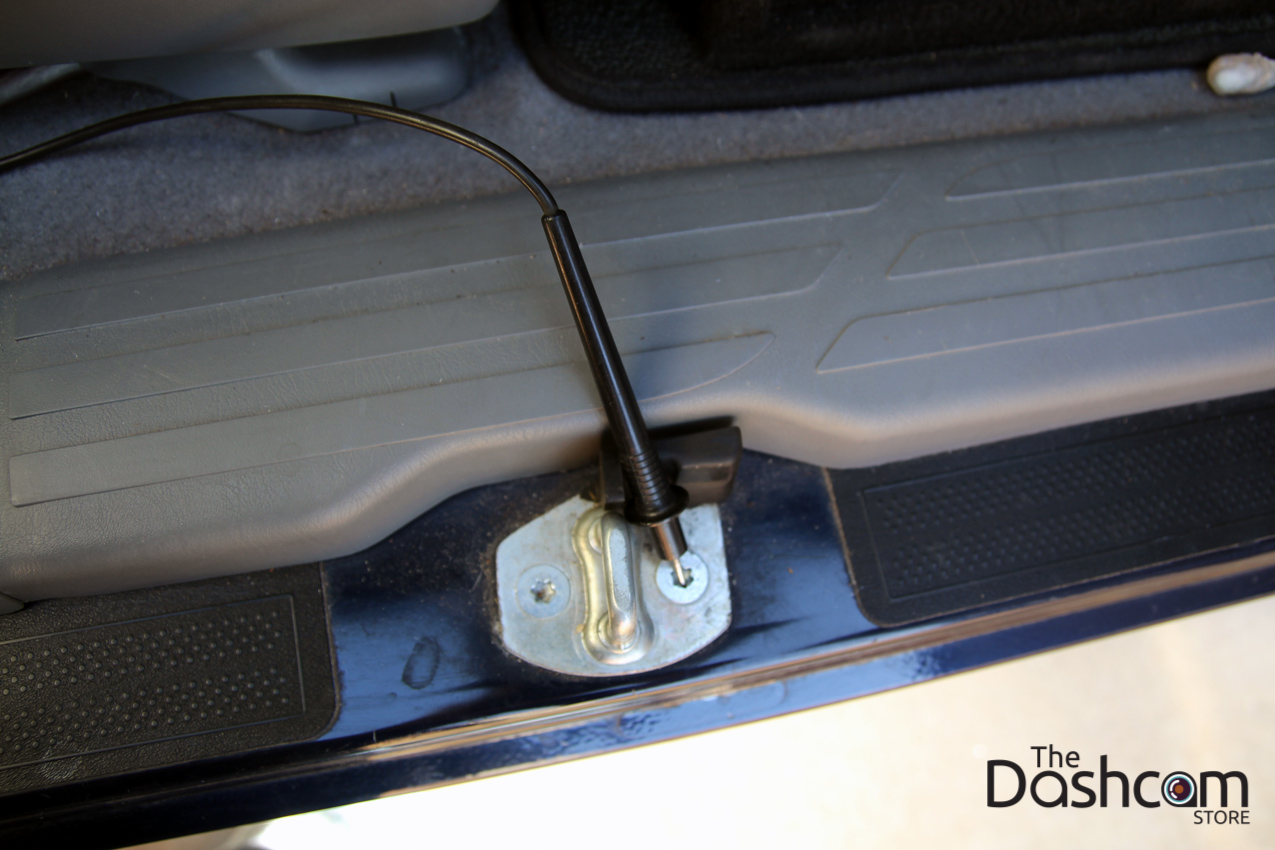

We're using an inexpensive multimeter to check our fuses, you can ground your meter on the bare metal door latch:

BlackVue DR650GW-2CH Dash Cam installation 2006 Toyota Tacoma

Using the voltmeter/multimeter to probe for battery voltage:

BlackVue DR650GW-2CH Dash Cam installation 2006 Toyota Tacoma

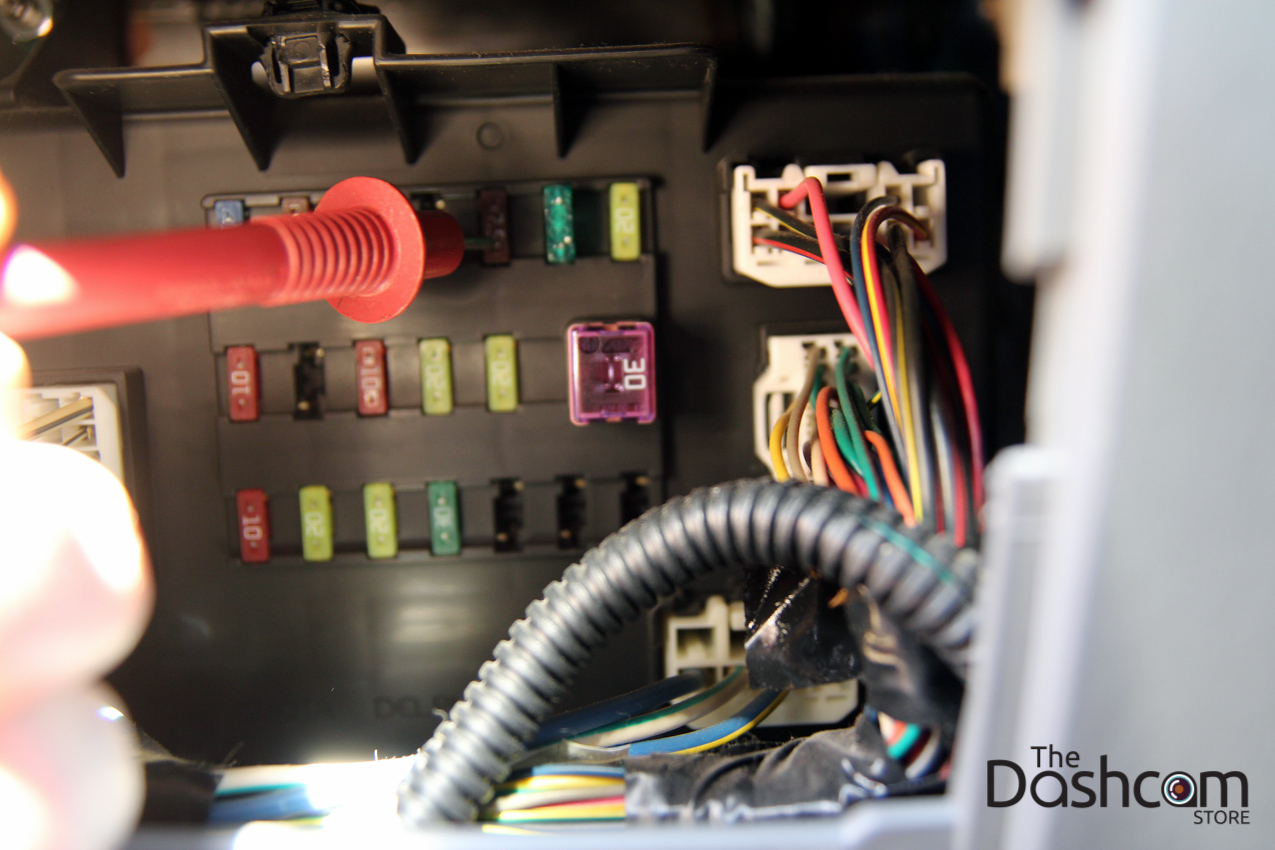

Close-up of probing the interior fuse box with the voltmeter/multimeter:

BlackVue DR650GW-2CH Dash Cam installation 2006 Toyota Tacoma

This diagram explains how the Power Magic Pro integrates with the BlackVue dash cams and your vehicle:

The Dashcam Store fuse tap kit thumbnail

Get a set of FREE fuse taps when you purchase both a BlackVue dash cam (any model) and a Power Magic Pro! These 'add-a-circuit' fuse taps make for installing the Power Magic Pro quick, easy, and painless, with no cutting or splicing of your vehicle wiring. Using fuse taps means no permanent modifications to the vehicle are necessary, keeping your manufacturer's warranty intact. Please specify your fuse type (Mini, Low-profile Mini, Micro2, or ATO/ATC) *OR* vehicle year, make, and model in the order comments if you would like us to include the fuse taps with your order.

The Dashcam Store fuse tap kit thumbnail

Power Magic Pro module mounted with the supplied adhesive pad inside the coin tray (a small hole was drilled in the back of the tray for the wire harness):

BlackVue DR650GW-2CH Dash Cam installation 2006 Toyota Tacoma

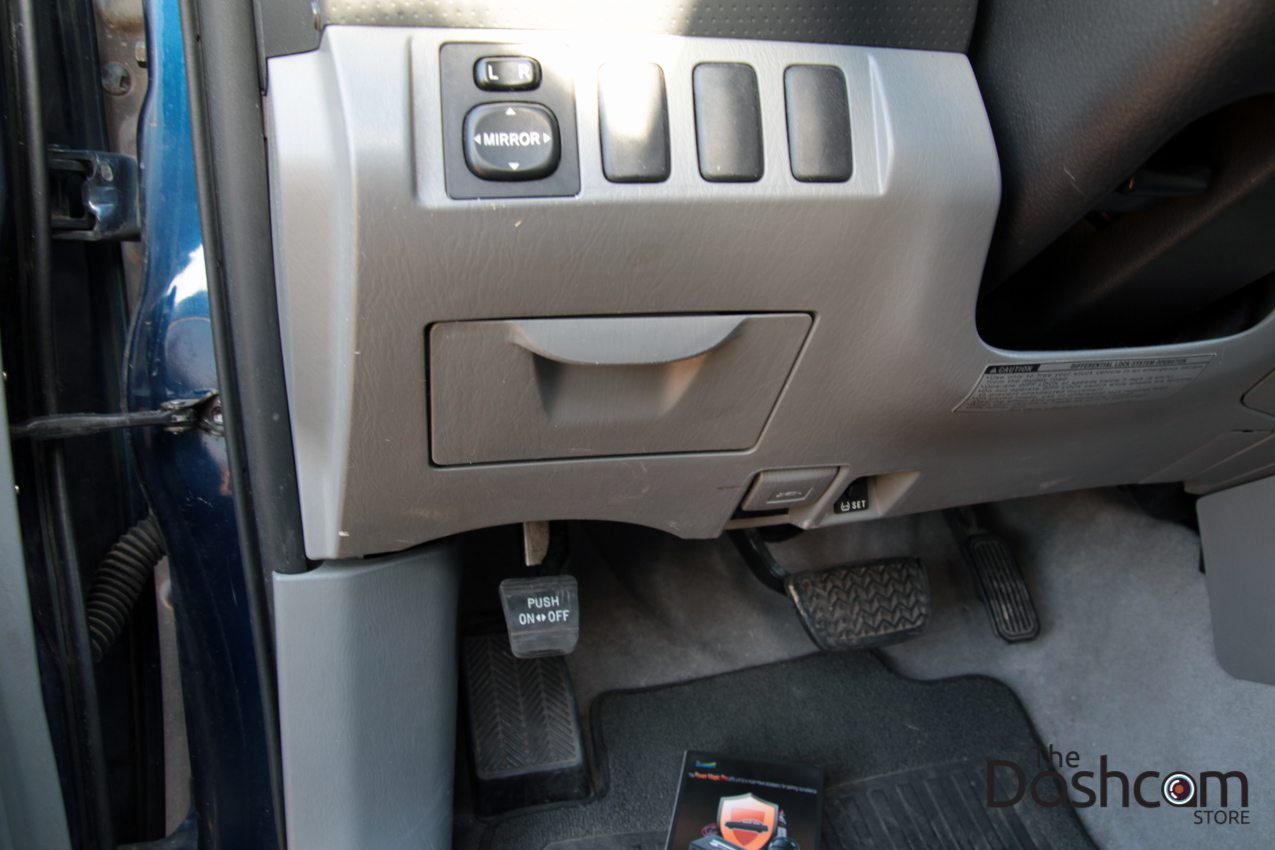

The Power Magic Pro override switch is now within quick and easy reach of the driver:

BlackVue DR650GW-2CH Dash Cam installation 2006 Toyota Tacoma

When the coin tray is closed, the Power Magic Pro box is fully hidden:

BlackVue DR650GW-2CH Dash Cam installation 2006 Toyota Tacoma

Now the output connector for the Power Magic Pro has been run to the passenger side and is ready to accept the plug from the DR650. Note that whether you use the Power Magic Pro or not, you still use the same power cord with the BlackVue DR650GW-2CH:

BlackVue DR650GW-2CH Dash Cam installation 2006 Toyota Tacoma

All wiring has been securely tucked behind the interior panels and carpeting:

BlackVue DR650GW-2CH Dash Cam installation 2006 Toyota Tacoma

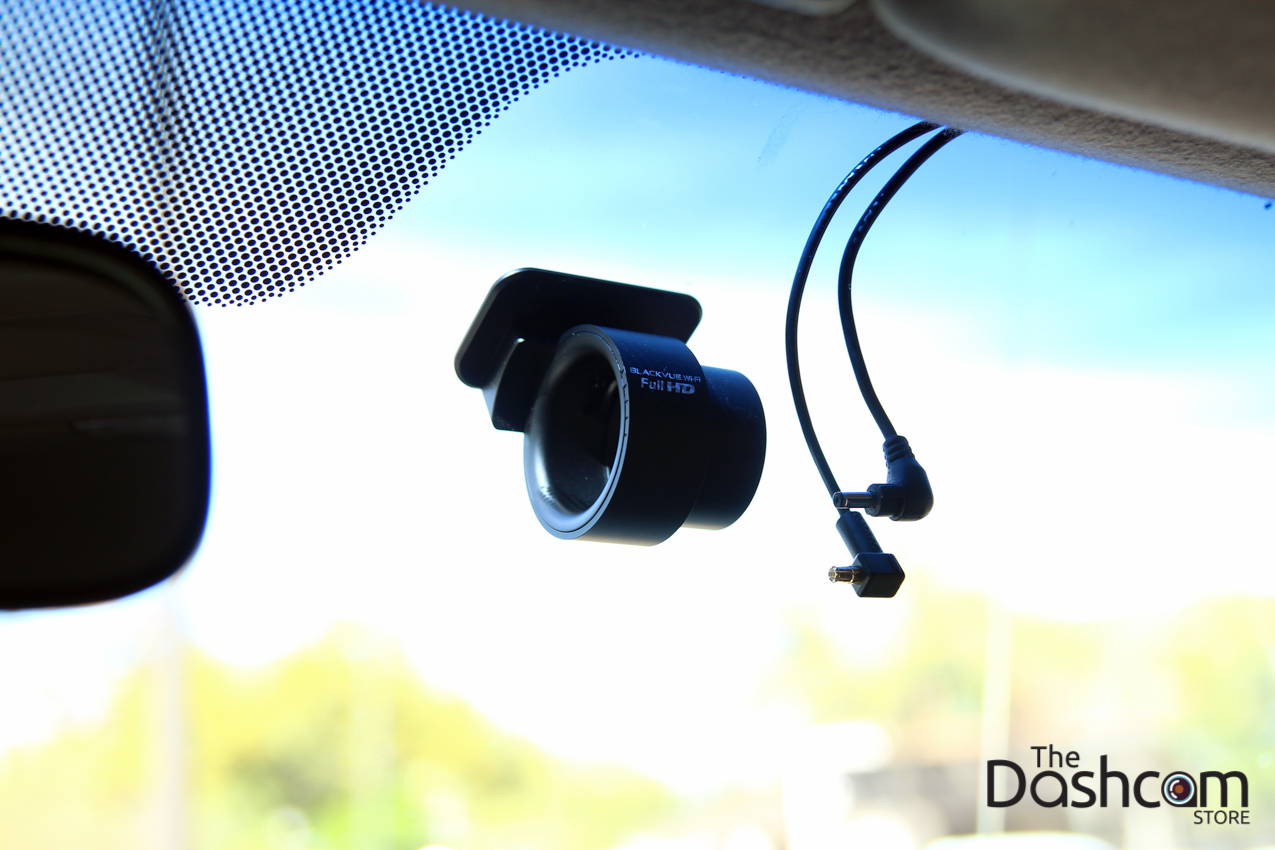

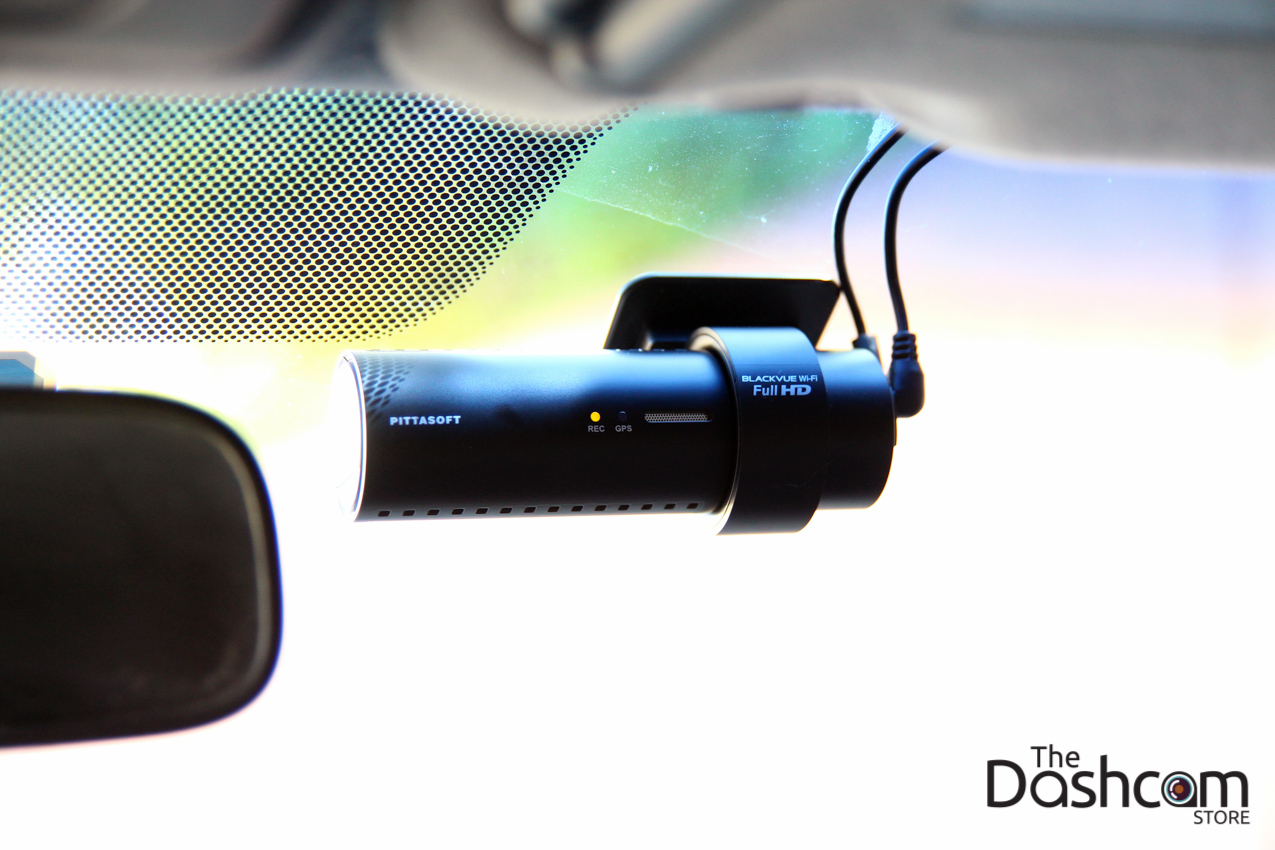

Front camera has been installed in the windshield mount and both cables are now connected:

BlackVue DR650GW-2CH Dash Cam installation 2006 Toyota Tacoma

Turn on the vehicle (or the switch on the Power Magic Pro), we have power to the front element!

BlackVue DR650GW-2CH Dash Cam installation 2006 Toyota Tacoma

And the rear lens element as well!

BlackVue DR650GW-2CH Dash Cam installation 2006 Toyota Tacoma

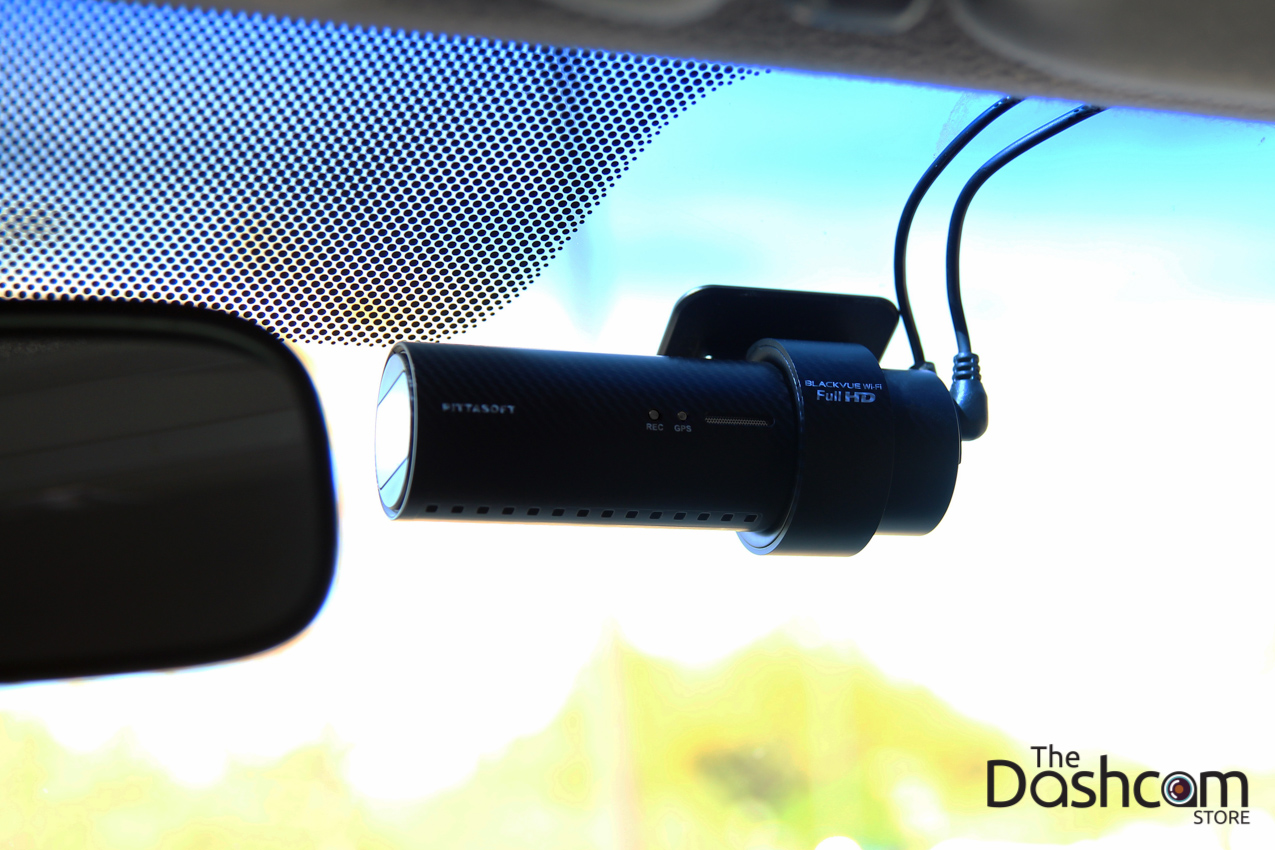

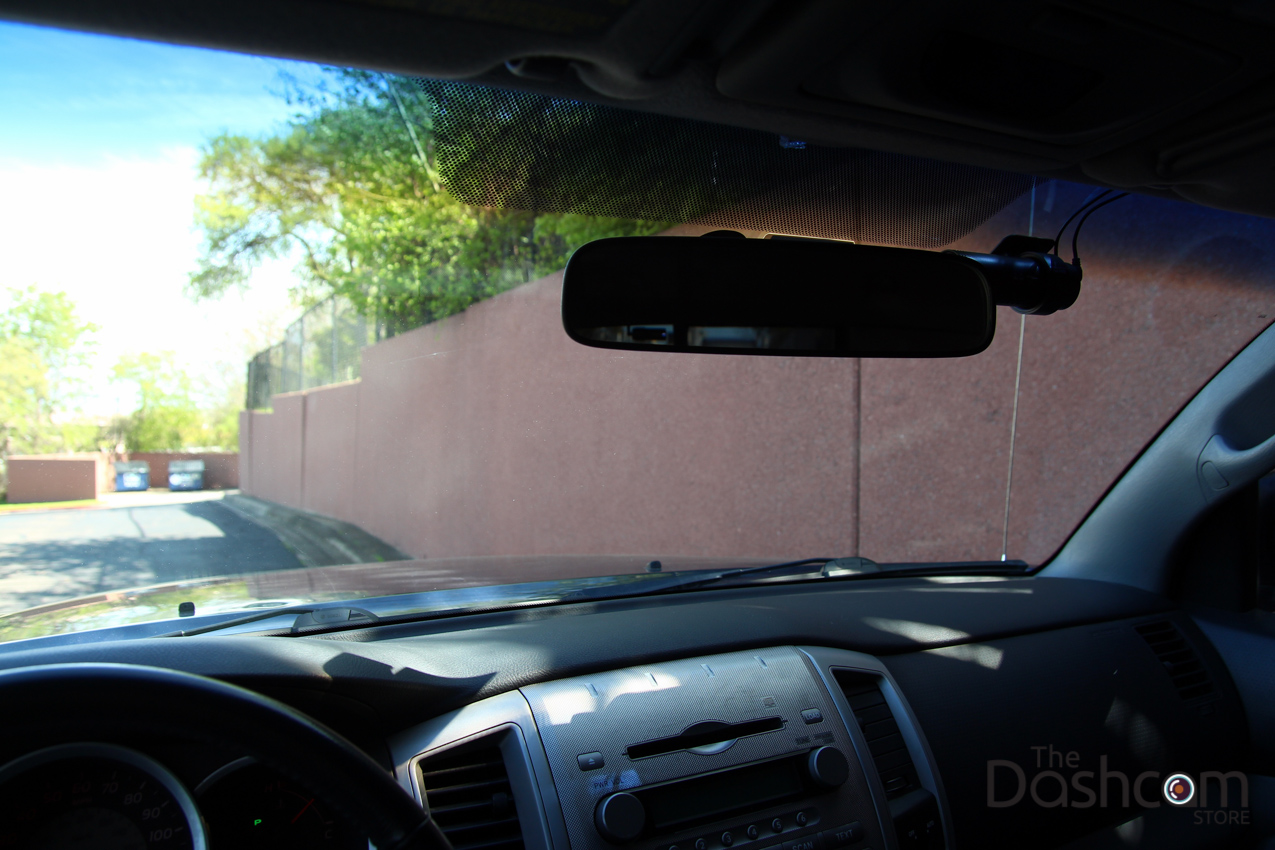

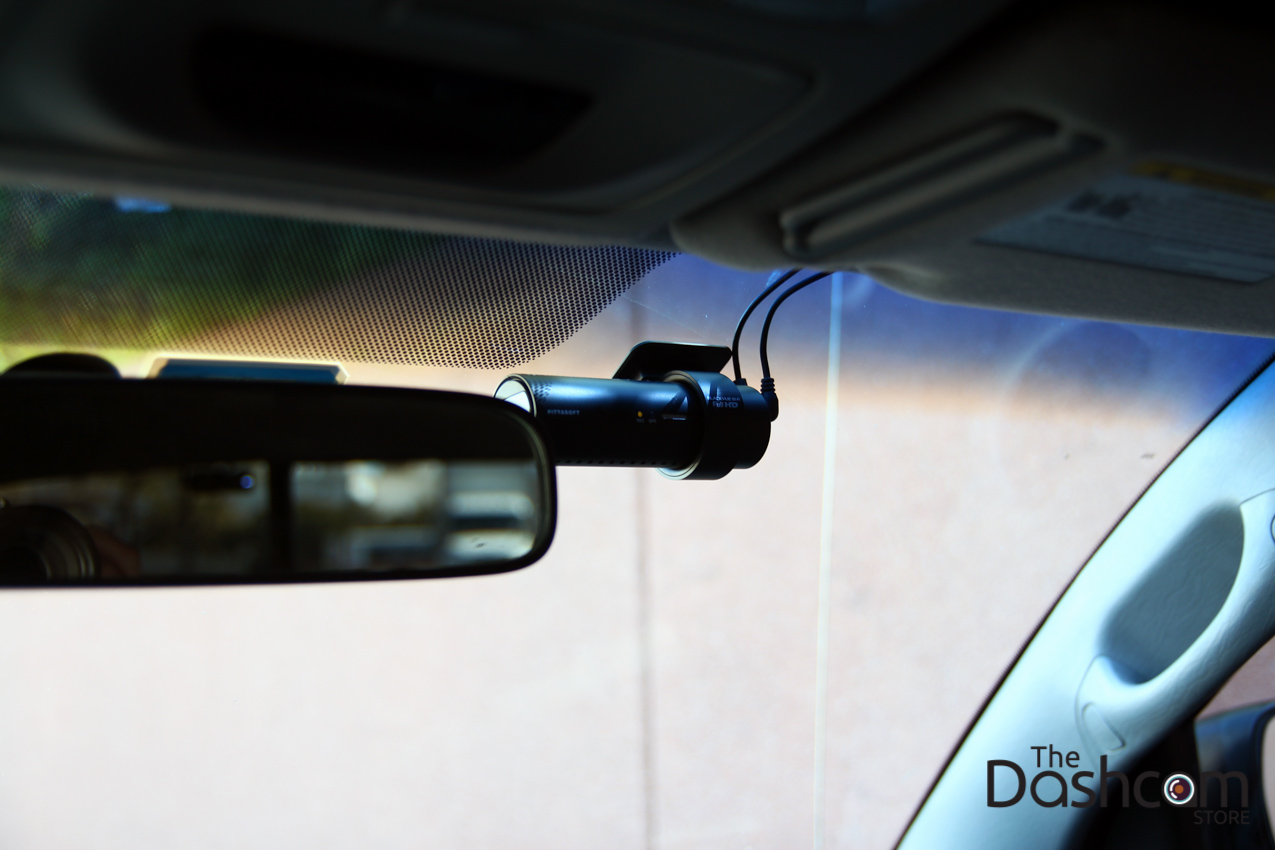

Front lens element from the driver's perspective, it's completely out of the way and does not interfere with the driver's field of view at all:

BlackVue DR650GW-2CH Dash Cam installation 2006 Toyota Tacoma

BlackVue DR650GW-2CH Dash Cam installation 2006 Toyota Tacoma

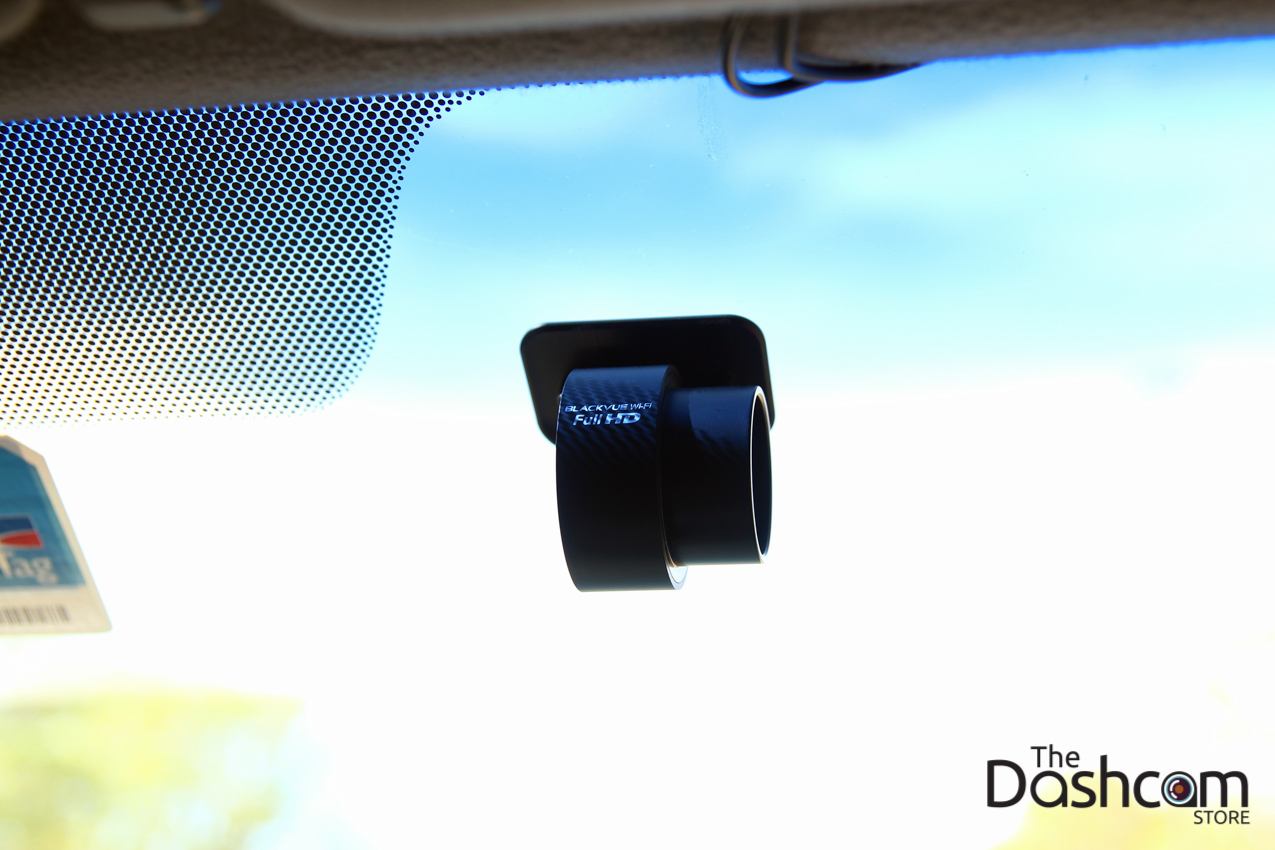

Final installed shot of the BlackVue DR650 rear camera:

BlackVue DR650GW-2CH Dash Cam installation 2006 Toyota Tacoma

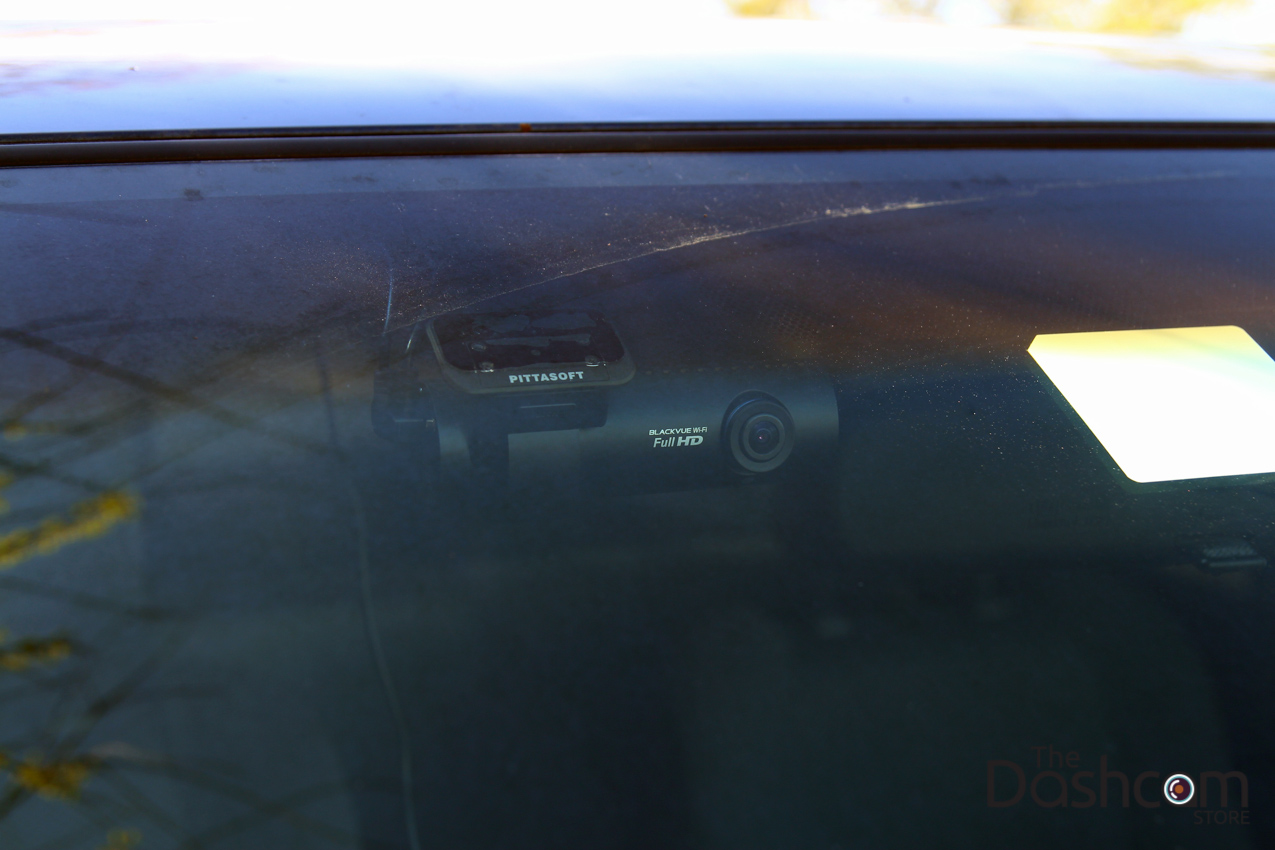

Outside view of the BlackVue DR650 front camera, the dark color hides the camera perfectly (the rear camera is not visible at all from the outside):

BlackVue DR650GW-2CH Dash Cam installation 2006 Toyota Tacoma

And here's a still frame of what the video looks like from this setup:

BlackVue DR650GW-2CH Dash Cam example video still frame from 2006 Toyota Tacoma

Click on these links to learn more about the amazing dual lens, full HD BlackVue DR650GW-2CH dash cam or Power Magic Pro battery discharge prevention device.

As always, drive safe!
